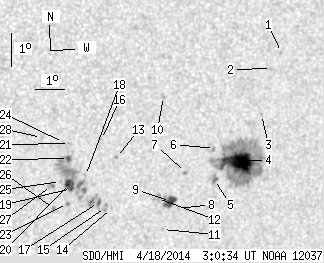

SDO HMI 2014-04-18 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.06 | 279.71 | 24.58 | 159.21 | -9.32 | 247.29 | 29.39 | 260.43 | 0.4927 | 251.5 | 185.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.68 | -5.64 | 250.38 | 32.48 | 267.95 | 0.5368 | 619.0 | 500.1 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -6.14 | 250.05 | 32.15 | 267.02 | 0.5319 | 680.0 | 528.8 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -7.54 | 249.80 | 31.90 | 264.36 | 0.5285 | 555.0 | 423.7 | |
| 26.31 | 160.27 | 15.25 | 92.86 | -8.99 | 249.21 | 31.31 | 261.53 | 0.5210 | 1088.1 | 430.0 | |
| 0.00 | 4.70 | 0.00 | 2.70 | -9.58 | 248.30 | 30.41 | 260.24 | 0.5084 | 772.0 | 624.8 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -8.64 | 248.22 | 30.32 | 262.07 | 0.5059 | 781.0 | 719.6 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -9.41 | 247.27 | 29.37 | 260.36 | 0.4927 | 686.0 | 644.1 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.51 | 247.13 | 29.23 | 258.11 | 0.4926 | -499.0 | -364.6 | |
| 7.00 | 11.61 | 3.97 | 6.58 | -10.31 | 246.83 | 28.93 | 258.44 | 0.4877 | -827.2 | -655.8 | |
| 0.00 | 2.48 | 0.00 | 1.40 | -7.16 | 246.32 | 28.42 | 264.89 | 0.4761 | 755.0 | 513.0 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -11.16 | 246.64 | 28.74 | 256.63 | 0.4868 | -624.0 | -433.2 | |
| 0.00 | 6.20 | 0.00 | 3.50 | -10.24 | 246.37 | 28.47 | 258.46 | 0.4807 | -532.0 | -414.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -9.06 | 244.85 | 26.95 | 260.58 | 0.4555 | 759.0 | 608.7 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -10.60 | 244.81 | 26.91 | 257.21 | 0.4581 | -432.0 | -365.8 | |
| 0.00 | 3.37 | 0.00 | 1.87 | -10.58 | 244.60 | 26.70 | 257.18 | 0.4549 | -693.0 | -594.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -8.54 | 244.29 | 26.40 | 261.62 | 0.4462 | 868.0 | 700.0 | |
| 0.97 | 11.69 | 0.54 | 6.48 | -10.44 | 244.35 | 26.45 | 257.41 | 0.4507 | -788.5 | -652.7 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -9.64 | 243.84 | 25.94 | 259.02 | 0.4411 | -510.0 | -353.4 | |
| 2.04 | 56.88 | 1.12 | 31.24 | -10.06 | 243.39 | 25.50 | 257.95 | 0.4352 | -911.0 | -117.4 | |
| 5.32 | -19.00 | 2.92 | -19.00 | -9.91 | 243.31 | 25.42 | 258.26 | 0.4336 | -959.9 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -8.70 | 243.22 | 25.32 | 261.02 | 0.4299 | 754.0 | 612.4 | |
| 1.42 | -19.00 | 0.78 | -19.00 | -9.15 | 243.22 | 25.32 | 259.97 | 0.4306 | 967.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -10.51 | 243.30 | 25.40 | 256.87 | 0.4349 | -775.0 | -705.7 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -8.68 | 243.02 | 25.12 | 261.02 | 0.4266 | 638.0 | 543.8 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -9.86 | 243.01 | 25.11 | 258.27 | 0.4288 | -598.0 | -496.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -10.68 | 242.84 | 24.94 | 256.31 | 0.4283 | -812.0 | -707.0 | |
| 0.00 | 3.01 | 0.00 | 1.65 | -9.99 | 242.71 | 24.81 | 257.86 | 0.4246 | -893.0 | -769.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -8.56 | 242.27 | 24.37 | 261.13 | 0.4148 | 400.0 | 385.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
