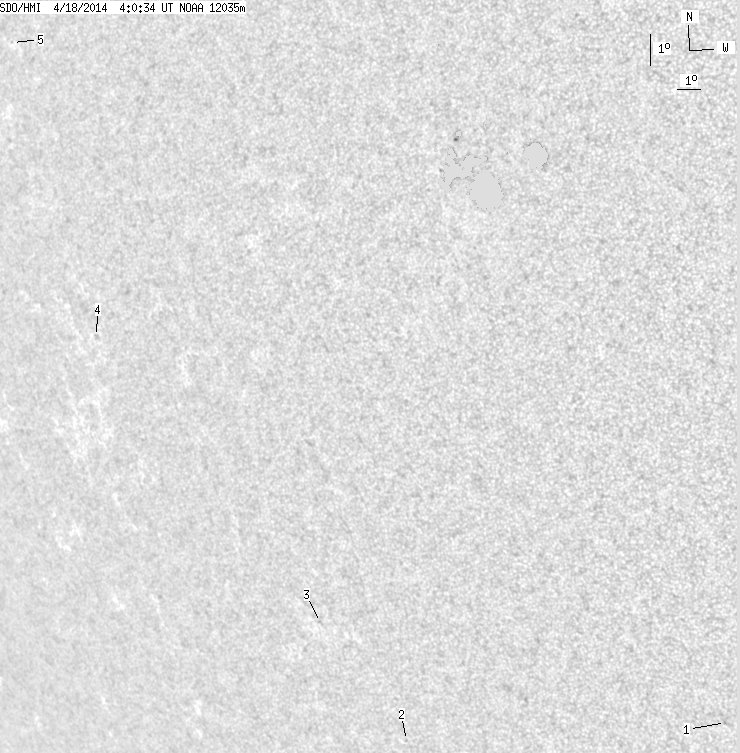

SDO HMI 2014-04-18 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.91 | 0.00 | 5.50 | -20.62 | 167.82 | -49.53 | 113.37 | 0.7797 | -97.6 | -195.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.62 | -30.54 | 186.01 | -31.34 | 134.29 | 0.6280 | 263.0 | 428.4 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -30.35 | 171.80 | -45.55 | 125.94 | 0.7631 | 548.0 | 445.9 | |
| 0.00 | 1.59 | 0.00 | 1.23 | -26.30 | 169.83 | -47.52 | 120.17 | 0.7671 | -569.0 | -469.2 | |
| 0.00 | 2.66 | 0.00 | 2.26 | -16.70 | 162.93 | -54.42 | 106.71 | 0.8156 | -532.0 | -382.0 | |
| 0.00 | 0.89 | 0.00 | 0.78 | -7.55 | 161.22 | -56.13 | 95.49 | 0.8291 | -198.0 | -220.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
