SDO HMI 2014-04-18 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 159.95 | 994.18 | 81.21 | 505.07 | -16.14 | 222.35 | 5.55 | 204.63 | 0.2198 | 312.8 | 190.6 | |
|
previous
or next observation for the same group /

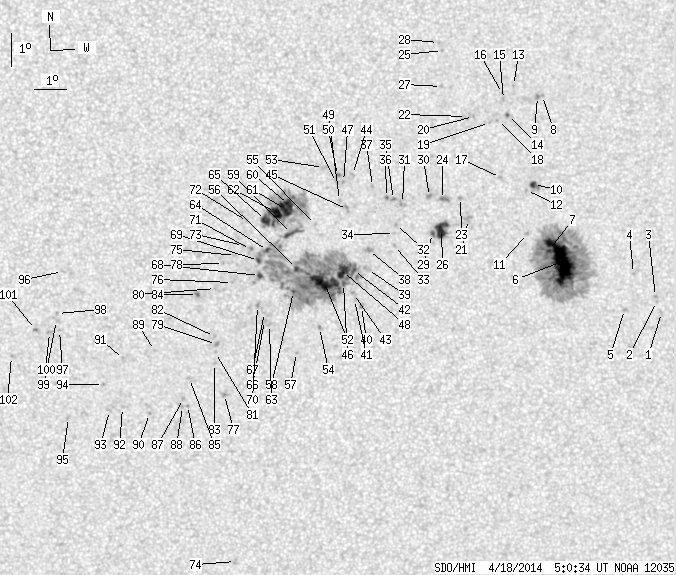

back to the solar disc SDO HMI 2014-04-18 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 0.88 | -17.68 | 230.69 | 13.89 | 226.67 | 0.3159 | 713.0 | 550.0 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -17.34 | 230.51 | 13.70 | 227.12 | 0.3100 | 760.0 | 602.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -17.19 | 230.46 | 13.66 | 227.42 | 0.3078 | 979.0 | 863.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -16.50 | 229.70 | 12.90 | 227.63 | 0.2910 | -645.0 | -543.8 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -17.61 | 229.49 | 12.69 | 224.35 | 0.3008 | 948.0 | 724.5 | |
| 57.69 | 332.66 | 29.58 | 170.66 | -16.17 | 227.38 | 10.57 | 223.02 | 0.2595 | 1454.6 | 402.3 | |
| 1.42 | -6.00 | 0.73 | -6.00 | -15.84 | 226.94 | 10.14 | 222.78 | 0.2506 | 1305.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -11.13 | 226.56 | 9.76 | 238.57 | 0.1959 | 915.0 | 776.7 | |
| 0.00 | 2.22 | 0.00 | 1.12 | -11.16 | 226.41 | 9.61 | 238.03 | 0.1939 | 985.0 | 842.2 | |
| 2.57 | 7.44 | 1.30 | 3.78 | -13.83 | 226.38 | 9.58 | 227.43 | 0.2204 | -1087.0 | -703.1 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -15.33 | 226.25 | 9.45 | 222.29 | 0.2365 | 1007.0 | 721.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.02 | 226.17 | 9.37 | 226.17 | 0.2199 | -742.0 | -594.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -10.84 | 225.65 | 8.85 | 237.47 | 0.1801 | 840.0 | 682.0 | |
| 0.53 | 1.51 | 0.27 | 0.76 | -11.72 | 225.49 | 8.69 | 232.97 | 0.1862 | 1019.5 | 835.0 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -11.26 | 225.36 | 8.55 | 234.58 | 0.1798 | 1081.0 | 861.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -11.08 | 225.32 | 8.52 | 235.31 | 0.1776 | 929.0 | 663.9 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -13.63 | 225.34 | 8.54 | 224.91 | 0.2053 | -939.0 | -664.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.90 | 225.19 | 8.39 | 231.19 | 0.1840 | 755.0 | 650.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.97 | 224.94 | 8.14 | 230.10 | 0.1814 | 751.0 | 638.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.79 | 224.44 | 7.64 | 229.11 | 0.1729 | 920.0 | 733.2 | |
| 0.00 | 4.25 | 0.00 | 2.15 | -14.92 | 224.38 | 7.58 | 217.38 | 0.2108 | 835.0 | 759.2 | |
| 0.00 | 4.61 | 0.00 | 2.32 | -11.79 | 224.22 | 7.42 | 228.30 | 0.1701 | 544.0 | 665.3 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -14.25 | 224.11 | 7.30 | 218.45 | 0.1991 | 1018.0 | 814.8 | |
| 0.44 | 4.87 | 0.22 | 2.46 | -14.32 | 223.54 | 6.74 | 216.06 | 0.1942 | 1242.2 | 929.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -9.80 | 223.44 | 6.64 | 235.60 | 0.1386 | 880.0 | 628.7 | |
| 12.49 | 21.00 | 6.33 | 10.63 | -15.24 | 223.54 | 6.74 | 213.36 | 0.2069 | 1105.2 | 710.9 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -10.89 | 223.43 | 6.63 | 229.47 | 0.1498 | 883.0 | 680.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.56 | 223.31 | 6.51 | 236.57 | 0.1345 | 830.0 | 516.2 | |
| 1.24 | -26.00 | 0.63 | -26.00 | -15.36 | 223.26 | 6.46 | 211.93 | 0.2061 | 1049.0 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.43 | -14.23 | 223.14 | 6.33 | 214.66 | 0.1889 | 1076.0 | 873.2 | |
| 0.00 | 3.99 | 0.00 | 2.01 | -14.45 | 222.30 | 5.50 | 210.37 | 0.1843 | 626.0 | 656.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.10 | 222.09 | 5.29 | 207.74 | 0.1922 | 924.0 | 796.6 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -15.74 | 222.08 | 5.28 | 206.14 | 0.2018 | 900.0 | 674.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -15.37 | 222.07 | 5.27 | 206.96 | 0.1962 | 772.0 | 564.8 | |
| 0.00 | 2.13 | 0.00 | 1.07 | -14.33 | 222.01 | 5.21 | 209.41 | 0.1801 | 1149.0 | 930.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.27 | 221.80 | 4.99 | 208.53 | 0.1774 | 1063.0 | 894.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -13.94 | 221.35 | 4.55 | 207.28 | 0.1688 | 1055.0 | 884.8 | |
| 0.00 | 4.16 | 0.00 | 2.10 | -15.90 | 221.27 | 4.47 | 202.25 | 0.1986 | 1017.0 | 825.4 | |
| 0.00 | 3.90 | 0.00 | 1.97 | -16.48 | 221.25 | 4.45 | 201.07 | 0.2077 | 685.0 | 623.1 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -17.62 | 221.08 | 4.28 | 198.52 | 0.2250 | 795.0 | 692.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -17.40 | 220.86 | 4.06 | 197.92 | 0.2203 | 391.0 | 409.2 | |
| 1.95 | 347.99 | 0.99 | 176.00 | -16.51 | 220.81 | 4.01 | 199.10 | 0.2057 | 1028.2 | 277.0 | |
| 0.00 | 2.22 | 0.00 | 1.12 | -17.22 | 220.82 | 4.02 | 198.05 | 0.2172 | 681.0 | 512.0 | |
| 0.00 | 2.22 | 0.00 | 1.11 | -13.58 | 220.73 | 3.92 | 204.94 | 0.1585 | 1098.0 | 779.7 | |
| 0.00 | 2.30 | 0.00 | 1.16 | -14.65 | 220.59 | 3.79 | 201.59 | 0.1744 | 938.0 | 718.6 | |
| 1.24 | -42.00 | 0.63 | -42.00 | -16.91 | 220.50 | 3.70 | 197.13 | 0.2105 | 1025.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.79 | 220.45 | 3.65 | 202.84 | 0.1599 | 1010.0 | 860.8 | |
| 10.99 | -42.00 | 5.56 | -42.00 | -16.54 | 220.46 | 3.66 | 197.51 | 0.2043 | 1338.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -14.37 | 220.33 | 3.53 | 200.85 | 0.1684 | 693.0 | 516.8 | |
| 0.00 | 2.57 | 0.00 | 1.29 | -13.61 | 220.26 | 3.46 | 202.22 | 0.1558 | 992.0 | 857.2 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -13.83 | 220.23 | 3.43 | 201.54 | 0.1590 | 714.0 | 635.6 | |
| 23.31 | -42.00 | 11.80 | -42.00 | -16.88 | 219.90 | 3.10 | 194.52 | 0.2073 | 1370.5 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.46 | -13.37 | 219.82 | 3.02 | 200.21 | 0.1492 | 742.0 | 580.6 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -18.27 | 219.76 | 2.96 | 192.39 | 0.2298 | -990.0 | -825.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -15.11 | 219.59 | 2.79 | 195.53 | 0.1765 | -608.0 | -409.9 | |
| 2.39 | -42.00 | 1.21 | -42.00 | -16.46 | 219.02 | 2.21 | 190.90 | 0.1968 | 978.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -19.05 | 219.04 | 2.24 | 188.89 | 0.2405 | -640.0 | -634.3 | |
| 1.15 | -42.00 | 0.58 | -42.00 | -17.16 | 218.93 | 2.13 | 189.84 | 0.2085 | -803.2 | 999999 | |
| 4.52 | 131.50 | 2.27 | 66.06 | -15.38 | 218.85 | 2.05 | 191.20 | 0.1782 | -832.5 | -486.2 | |
| 6.38 | -59.00 | 3.20 | -59.00 | -14.50 | 218.75 | 1.95 | 191.70 | 0.1629 | -1192.7 | 999999 | |
| 10.01 | -59.00 | 5.03 | -59.00 | -14.65 | 218.66 | 1.85 | 190.98 | 0.1652 | -1280.7 | 999999 | |
| 9.66 | -59.00 | 4.85 | -59.00 | -14.74 | 218.34 | 1.54 | 189.08 | 0.1658 | -1392.1 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -18.18 | 218.18 | 1.38 | 185.88 | 0.2240 | -838.0 | -679.1 | |
| 1.60 | -42.00 | 0.80 | -42.00 | -15.91 | 218.10 | 1.30 | 186.80 | 0.1851 | -941.9 | 999999 | |
| 6.38 | -59.00 | 3.21 | -59.00 | -14.99 | 218.03 | 1.23 | 187.09 | 0.1692 | -1100.7 | 999999 | |
| 0.00 | 2.75 | 0.00 | 1.40 | -18.06 | 218.02 | 1.22 | 185.26 | 0.2216 | -967.0 | -816.7 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -17.81 | 218.02 | 1.22 | 185.36 | 0.2174 | -910.0 | -758.0 | |
| 1.95 | 5.85 | 0.99 | 2.96 | -16.67 | 217.85 | 1.05 | 185.13 | 0.1977 | -1036.5 | -752.6 | |
| 1.51 | -42.00 | 0.76 | -42.00 | -16.21 | 217.82 | 1.02 | 185.19 | 0.1898 | -708.7 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -17.60 | 217.80 | 0.99 | 184.46 | 0.2134 | -1121.0 | -982.0 | |
| 0.00 | 2.48 | 0.00 | 1.25 | -15.88 | 217.57 | 0.77 | 184.05 | 0.1837 | -981.0 | -788.7 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -15.02 | 217.47 | 0.67 | 183.87 | 0.1688 | -789.0 | -702.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -15.75 | 217.35 | 0.55 | 182.93 | 0.1813 | -957.0 | -755.8 | |
| 0.00 | 2.39 | 0.00 | 1.26 | -25.63 | 217.11 | 0.31 | 180.80 | 0.3479 | -761.0 | -676.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -16.06 | 217.10 | 0.30 | 181.55 | 0.1864 | -908.0 | -753.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -16.89 | 217.01 | 0.20 | 180.98 | 0.2006 | -933.0 | -751.4 | |
| 0.00 | 2.84 | 0.00 | 1.45 | -20.35 | 216.75 | -0.05 | 179.81 | 0.2597 | -931.0 | -716.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -16.30 | 216.72 | -0.08 | 179.61 | 0.1906 | -899.0 | -760.1 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -18.80 | 216.50 | -0.30 | 178.76 | 0.2334 | -1070.0 | -925.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -17.07 | 216.47 | -0.33 | 178.44 | 0.2038 | -995.0 | -748.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -19.05 | 216.46 | -0.34 | 178.66 | 0.2376 | -749.0 | -517.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -18.55 | 216.43 | -0.37 | 178.48 | 0.2292 | -959.0 | -745.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -19.39 | 216.43 | -0.37 | 178.56 | 0.2434 | -791.0 | -663.1 | |
| 0.53 | 2.48 | 0.27 | 1.26 | -17.25 | 215.90 | -0.90 | 175.84 | 0.2075 | -1201.3 | -931.5 | |
| 0.00 | 3.19 | 0.00 | 1.63 | -19.85 | 215.63 | -1.17 | 175.60 | 0.2520 | -770.0 | -621.3 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -20.69 | 215.56 | -1.24 | 175.61 | 0.2663 | -823.0 | -651.7 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -20.47 | 215.43 | -1.37 | 175.09 | 0.2627 | -938.0 | -753.4 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -20.72 | 215.40 | -1.40 | 175.05 | 0.2670 | -802.0 | -643.6 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.98 | 214.52 | -2.28 | 170.93 | 0.2394 | -953.0 | -785.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -20.94 | 214.33 | -2.47 | 171.47 | 0.2727 | -863.0 | -683.6 | |
| 0.00 | 2.75 | 0.00 | 1.40 | -19.25 | 213.53 | -3.27 | 167.35 | 0.2472 | -811.0 | -627.9 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -20.74 | 213.46 | -3.34 | 168.40 | 0.2720 | -739.0 | -685.3 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -20.84 | 213.04 | -3.76 | 167.07 | 0.2750 | -722.0 | -484.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -20.02 | 212.87 | -3.93 | 165.73 | 0.2624 | -854.0 | -685.5 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -21.04 | 211.71 | -5.09 | 162.98 | 0.2842 | -730.0 | -515.7 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -16.52 | 211.66 | -5.14 | 156.11 | 0.2129 | -814.0 | -646.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.34 | 211.51 | -5.29 | 158.74 | 0.2423 | -966.0 | -646.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -17.81 | 211.47 | -5.33 | 157.70 | 0.2344 | -793.0 | -608.9 | |
| 0.00 | 3.37 | 0.00 | 1.72 | -18.03 | 211.43 | -5.37 | 157.92 | 0.2380 | -865.0 | -694.7 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -18.40 | 211.19 | -5.61 | 157.68 | 0.2453 | -980.0 | -766.4 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -18.30 | 210.75 | -6.05 | 155.95 | 0.2467 | -944.0 | -810.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -19.13 | 209.95 | -6.85 | 154.70 | 0.2649 | -798.0 | -594.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
