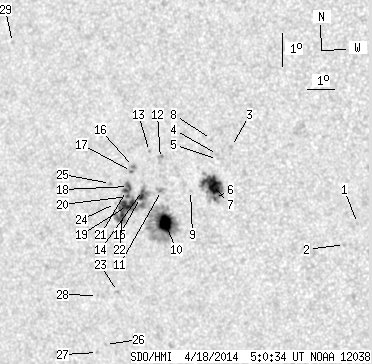

SDO HMI 2014-04-18 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.49 | 218.59 | 37.41 | 133.58 | -12.77 | 181.25 | -35.55 | 104.44 | 0.5877 | 258.4 | -6.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.60 | -13.75 | 188.36 | -28.44 | 108.71 | 0.4904 | 536.0 | 522.1 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -14.36 | 187.81 | -28.99 | 109.66 | 0.5006 | 478.0 | 360.0 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -11.20 | 184.18 | -32.63 | 102.38 | 0.5436 | 487.0 | 502.0 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -11.42 | 183.63 | -33.17 | 102.65 | 0.5517 | 690.0 | 568.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -11.57 | 183.61 | -33.19 | 102.91 | 0.5523 | 584.0 | 593.8 | |
| 1.33 | 42.62 | 0.79 | 25.41 | -12.74 | 183.33 | -33.47 | 104.93 | 0.5588 | 586.5 | 492.7 | |
| 20.47 | -6.00 | 12.20 | -6.00 | -12.31 | 183.32 | -33.48 | 104.17 | 0.5580 | 986.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -10.95 | 183.47 | -33.33 | 101.78 | 0.5531 | 248.0 | 296.2 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -12.45 | 182.48 | -34.32 | 104.19 | 0.5700 | 425.0 | 317.9 | |
| 17.19 | 146.92 | 10.50 | 90.36 | -13.40 | 181.39 | -35.41 | 105.52 | 0.5872 | 1212.9 | -106.6 | |
| 0.00 | 5.49 | 0.00 | 3.35 | -12.40 | 181.40 | -35.40 | 103.83 | 0.5849 | -692.0 | -483.6 | |
| 0.00 | 3.81 | 0.00 | 2.32 | -11.43 | 181.51 | -35.29 | 102.20 | 0.5815 | 198.0 | 36.1 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -11.19 | 181.13 | -35.67 | 101.72 | 0.5865 | -513.0 | -392.2 | |
| 1.24 | -10.00 | 0.76 | -10.00 | -12.36 | 180.68 | -36.12 | 103.59 | 0.5946 | -932.1 | 999999 | |
| 2.92 | -10.00 | 1.80 | -10.00 | -12.56 | 180.57 | -36.23 | 103.91 | 0.5965 | -1073.3 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -11.61 | 180.46 | -36.34 | 102.30 | 0.5964 | -939.0 | -852.7 | |
| 0.44 | 1.42 | 0.27 | 0.87 | -11.76 | 180.36 | -36.44 | 102.53 | 0.5980 | -839.2 | -701.5 | |
| 2.48 | -10.00 | 1.53 | -10.00 | -12.21 | 180.17 | -36.63 | 103.23 | 0.6013 | -829.6 | 999999 | |
| 9.66 | -10.00 | 5.99 | -10.00 | -12.78 | 180.04 | -36.76 | 104.15 | 0.6042 | -1021.2 | 999999 | |
| 1.15 | -10.00 | 0.71 | -10.00 | -12.51 | 180.08 | -36.72 | 103.71 | 0.6030 | -912.3 | 999999 | |
| 2.13 | -10.00 | 1.32 | -10.00 | -12.32 | 180.08 | -36.73 | 103.40 | 0.6028 | -864.6 | 999999 | |
| 2.48 | -10.00 | 1.54 | -10.00 | -13.04 | 179.80 | -37.00 | 104.52 | 0.6079 | -963.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -15.36 | 179.15 | -37.65 | 108.08 | 0.6219 | 640.0 | 479.1 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -12.69 | 179.59 | -37.21 | 103.90 | 0.6101 | -342.0 | -267.3 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -12.08 | 179.50 | -37.30 | 102.88 | 0.6102 | -530.0 | -443.2 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -16.95 | 178.31 | -38.50 | 110.29 | 0.6371 | 622.0 | 573.3 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -17.17 | 177.93 | -38.88 | 110.52 | 0.6425 | 589.0 | 463.9 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -15.44 | 178.34 | -38.46 | 107.97 | 0.6326 | 588.0 | 418.4 | |
| 0.00 | 1.77 | 0.00 | 1.15 | -7.61 | 176.27 | -40.53 | 95.44 | 0.6494 | 633.0 | 439.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
