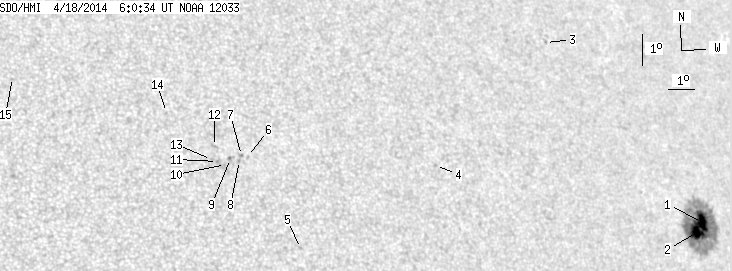

SDO HMI 2014-04-18 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.84 | 158.35 | 18.43 | 119.82 | 11.90 | 262.21 | 45.96 | 291.21 | 0.7541 | -363.4 | -215.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.41 | 141.70 | 9.63 | 109.66 | 11.95 | 263.82 | 47.57 | 290.35 | 0.7724 | -837.3 | -292.6 | |
| 11.43 | -1.00 | 8.80 | -1.00 | 11.61 | 263.47 | 47.21 | 290.07 | 0.7676 | -1163.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.78 | 17.32 | 258.31 | 42.05 | 299.55 | 0.7374 | -595.0 | -540.1 | |
| 0.00 | 1.06 | 0.00 | 0.70 | 13.05 | 252.89 | 36.63 | 297.13 | 0.6555 | 675.0 | 559.3 | |
| 0.00 | 1.33 | 0.00 | 0.80 | 10.16 | 247.47 | 31.21 | 296.49 | 0.5721 | 463.0 | 491.0 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 12.97 | 245.92 | 29.67 | 302.11 | 0.5716 | 444.0 | 423.6 | |
| 0.00 | 1.33 | 0.00 | 0.80 | 12.99 | 245.71 | 29.46 | 302.32 | 0.5692 | 679.0 | 584.9 | |
| 0.00 | 1.33 | 0.00 | 0.80 | 12.83 | 245.62 | 29.36 | 302.15 | 0.5669 | 790.0 | 624.3 | |
| 0.00 | 2.04 | 0.00 | 1.22 | 12.88 | 245.30 | 29.05 | 302.50 | 0.5634 | 885.0 | 661.3 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 12.68 | 245.10 | 28.85 | 302.37 | 0.5595 | 684.0 | 600.0 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 12.76 | 244.83 | 28.58 | 302.74 | 0.5568 | 819.0 | 696.9 | |
| 0.00 | 3.01 | 0.00 | 1.80 | 13.24 | 244.78 | 28.53 | 303.51 | 0.5598 | 657.0 | 516.4 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 12.82 | 244.63 | 28.37 | 303.01 | 0.5547 | 597.0 | 529.8 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 14.25 | 243.23 | 26.98 | 306.53 | 0.5494 | 611.0 | 525.5 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 15.17 | 238.07 | 21.82 | 313.82 | 0.4992 | 171.0 | 192.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
