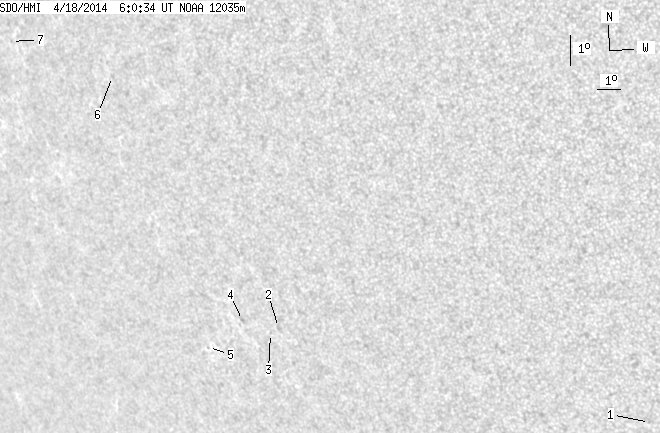

SDO HMI 2014-04-18 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.74 | 0.00 | 5.07 | -24.01 | 169.63 | -46.62 | 117.82 | 0.7538 | -276.0 | -344.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.17 | -30.60 | 185.91 | -30.35 | 135.17 | 0.6191 | 727.0 | 696.7 | |
| 0.00 | 2.30 | 0.00 | 1.70 | -26.66 | 171.41 | -44.84 | 121.59 | 0.7421 | -402.0 | -304.9 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -26.83 | 170.94 | -45.31 | 121.62 | 0.7473 | -436.0 | -401.9 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -26.33 | 169.84 | -46.41 | 120.59 | 0.7564 | -591.0 | -508.3 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -27.07 | 167.73 | -48.53 | 120.82 | 0.7791 | -431.0 | -462.7 | |
| 0.00 | 1.42 | 0.00 | 1.08 | -18.35 | 167.15 | -49.10 | 109.60 | 0.7638 | -561.0 | -446.8 | |
| 0.00 | 0.62 | 0.00 | 0.52 | -16.93 | 162.58 | -53.67 | 107.09 | 0.8085 | -238.0 | -229.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
