SDO HMI 2014-04-18 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.21 | 0.00 | 6.84 | -13.90 | 202.72 | -13.54 | 123.95 | 0.2739 | -629.2 | -579.5 | |
|
previous
or next observation for the same group /

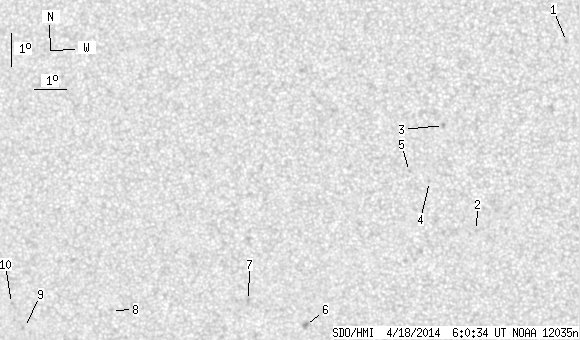

back to the solar disc SDO HMI 2014-04-18 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.62 | -8.04 | 210.71 | -5.55 | 116.27 | 0.1072 | -893.0 | -630.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.73 | 207.78 | -8.47 | 135.66 | 0.2057 | 823.0 | 676.3 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -10.53 | 206.86 | -9.39 | 119.65 | 0.1854 | -926.0 | -761.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -12.21 | 206.37 | -9.88 | 125.73 | 0.2076 | -858.0 | -605.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.90 | 205.76 | -10.50 | 122.92 | 0.2133 | -784.0 | -632.5 | |
| 0.00 | 3.37 | 0.00 | 1.75 | -16.52 | 202.19 | -14.07 | 130.11 | 0.3060 | -901.0 | -781.4 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -15.71 | 200.40 | -15.85 | 124.85 | 0.3218 | -816.0 | -592.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -15.89 | 195.87 | -20.38 | 119.34 | 0.3859 | -742.0 | -474.6 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -16.30 | 192.88 | -23.37 | 117.38 | 0.4306 | -465.0 | -507.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -15.55 | 192.53 | -23.72 | 115.47 | 0.4311 | -730.0 | -661.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
