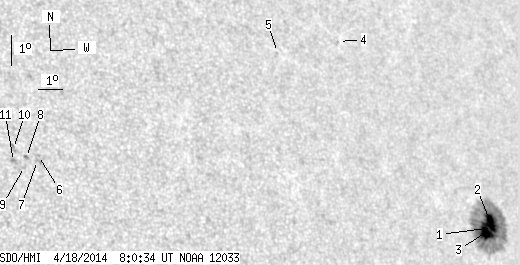

SDO HMI 2014-04-18 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.79 | 154.73 | 20.38 | 119.71 | 11.91 | 262.27 | 47.11 | 290.71 | 0.7663 | -582.5 | -185.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.87 | 139.49 | 3.87 | 110.35 | 11.82 | 263.85 | 48.70 | 289.76 | 0.7836 | -891.0 | -263.5 | |
| 6.74 | -1.00 | 5.35 | -1.00 | 12.07 | 263.77 | 48.61 | 290.09 | 0.7835 | -864.8 | 999999 | |
| 14.18 | -1.00 | 11.16 | -1.00 | 11.64 | 263.48 | 48.32 | 289.67 | 0.7792 | -1140.1 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.33 | 17.37 | 258.44 | 43.28 | 298.96 | 0.7501 | -522.0 | -466.8 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 16.84 | 255.70 | 40.54 | 299.80 | 0.7192 | 559.0 | 492.3 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 13.00 | 245.76 | 30.60 | 301.34 | 0.5830 | 656.0 | 546.5 | |
| 0.00 | 3.01 | 0.00 | 1.83 | 12.84 | 245.70 | 30.54 | 301.15 | 0.5812 | 719.0 | 606.7 | |
| 0.00 | 1.51 | 0.00 | 0.91 | 12.91 | 245.32 | 30.16 | 301.58 | 0.5770 | 750.0 | 697.6 | |
| 0.00 | 1.77 | 0.00 | 1.07 | 12.62 | 245.21 | 30.05 | 301.23 | 0.5736 | 580.0 | 593.0 | |
| 0.00 | 3.90 | 0.00 | 2.35 | 13.18 | 244.89 | 29.73 | 302.34 | 0.5737 | 670.0 | 537.5 | |
| 0.00 | 2.66 | 0.00 | 1.60 | 12.76 | 244.83 | 29.68 | 301.76 | 0.5701 | 855.0 | 681.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
