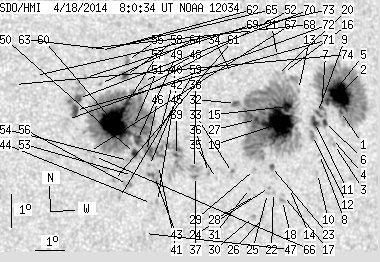

SDO HMI 2014-04-18 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 193.61 | 1052.26 | 112.61 | 610.96 | 4.25 | 244.93 | 29.77 | 287.45 | 0.5202 | -144.8 | -94.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.33 | 225.36 | 0.81 | 136.90 | 4.68 | 248.94 | 33.78 | 285.96 | 0.5786 | -759.1 | -274.5 | |
| 35.71 | -1.00 | 21.69 | -1.00 | 5.20 | 248.94 | 33.78 | 286.83 | 0.5806 | -1173.9 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.85 | 3.66 | 248.67 | 33.51 | 284.37 | 0.5710 | -488.0 | -350.8 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 3.84 | 248.61 | 33.45 | 284.71 | 0.5707 | -449.0 | -381.5 | |
| 3.19 | -1.00 | 1.93 | -1.00 | 5.00 | 248.49 | 33.33 | 286.71 | 0.5737 | -1094.2 | 999999 | |
| 1.95 | -1.00 | 1.17 | -1.00 | 4.32 | 248.34 | 33.18 | 285.64 | 0.5689 | -701.5 | 999999 | |
| 1.24 | -1.00 | 0.75 | -1.00 | 4.74 | 248.26 | 33.10 | 286.39 | 0.5694 | -1005.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 3.33 | 248.12 | 32.96 | 284.05 | 0.5620 | -650.0 | -483.6 | |
| 0.97 | -1.00 | 0.59 | -1.00 | 4.61 | 248.10 | 32.95 | 286.25 | 0.5668 | -906.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 2.75 | 248.02 | 32.86 | 283.08 | 0.5586 | -416.0 | -355.4 | |
| 4.52 | -1.00 | 2.71 | -1.00 | 4.30 | 247.98 | 32.82 | 285.78 | 0.5638 | -990.8 | 999999 | |
| 0.00 | 5.05 | 0.00 | 3.02 | 3.90 | 247.89 | 32.73 | 285.14 | 0.5610 | -822.0 | -730.9 | |
| 0.00 | 1.86 | 0.00 | 1.11 | 5.28 | 247.46 | 32.30 | 287.73 | 0.5608 | -608.0 | -445.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 2.24 | 247.01 | 31.85 | 282.62 | 0.5424 | -491.0 | -507.9 | |
| 6.91 | 340.83 | 4.10 | 200.65 | 4.74 | 247.04 | 31.88 | 287.03 | 0.5525 | -957.3 | -588.0 | |
| 0.00 | 1.51 | 0.00 | 0.90 | 5.78 | 246.95 | 31.80 | 288.86 | 0.5561 | 177.0 | 147.6 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 2.02 | 246.79 | 31.63 | 282.31 | 0.5385 | -808.0 | -658.7 | |
| 0.00 | 2.39 | 0.00 | 1.40 | 1.87 | 246.75 | 31.59 | 282.05 | 0.5375 | -942.0 | -758.0 | |
| 55.30 | -15.00 | 32.64 | -15.00 | 4.21 | 246.72 | 31.57 | 286.26 | 0.5459 | -1214.9 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.68 | 5.71 | 246.74 | 31.58 | 288.86 | 0.5528 | -151.0 | -88.5 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 6.26 | 246.77 | 31.61 | 289.79 | 0.5559 | -636.0 | -483.9 | |
| 0.00 | 1.77 | 0.00 | 1.04 | 2.09 | 246.44 | 31.28 | 282.60 | 0.5337 | -781.0 | -620.7 | |
| 1.24 | 2.84 | 0.73 | 1.66 | 2.88 | 246.39 | 31.23 | 284.06 | 0.5359 | -837.2 | -677.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 2.24 | 246.30 | 31.14 | 282.93 | 0.5323 | -899.0 | -756.3 | |
| 0.00 | 1.68 | 0.00 | 0.98 | 2.05 | 246.22 | 31.07 | 282.62 | 0.5305 | -810.0 | -694.3 | |
| 0.00 | 1.86 | 0.00 | 1.08 | 1.28 | 246.03 | 30.87 | 281.28 | 0.5252 | -801.0 | -694.9 | |
| 1.68 | -15.00 | 0.99 | -15.00 | 4.29 | 245.92 | 30.76 | 286.84 | 0.5349 | -1149.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 1.97 | 245.80 | 30.64 | 282.66 | 0.5241 | -786.0 | -580.7 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 2.76 | 245.79 | 30.63 | 284.13 | 0.5268 | -828.0 | -644.6 | |
| 0.00 | 2.04 | 0.00 | 1.18 | 1.33 | 245.72 | 30.56 | 281.49 | 0.5208 | -888.0 | -778.4 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 2.17 | 245.60 | 30.44 | 283.13 | 0.5219 | -851.0 | -653.4 | |
| 1.68 | -15.00 | 0.98 | -15.00 | 4.74 | 245.20 | 30.04 | 288.07 | 0.5269 | -885.8 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.38 | 2.63 | 245.01 | 29.86 | 284.27 | 0.5152 | -817.0 | -723.1 | |
| 0.00 | 1.42 | 0.00 | 0.83 | 5.66 | 245.11 | 29.95 | 289.77 | 0.5300 | -705.0 | -470.9 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 2.43 | 244.45 | 29.29 | 284.16 | 0.5062 | 331.0 | 253.7 | |
| 0.00 | 1.77 | 0.00 | 1.01 | 2.60 | 244.18 | 29.02 | 284.63 | 0.5029 | -844.0 | -696.0 | |
| 0.00 | 2.66 | 0.00 | 1.51 | 2.45 | 243.73 | 28.57 | 284.60 | 0.4957 | 386.0 | 263.8 | |
| 0.00 | 7.53 | 0.00 | 4.29 | 2.70 | 243.70 | 28.54 | 285.08 | 0.4963 | -180.0 | -85.8 | |
| 0.97 | 344.02 | 0.55 | 192.72 | 3.06 | 243.10 | 27.94 | 286.15 | 0.4890 | 657.1 | 413.1 | |
| 0.00 | 3.54 | 0.00 | 2.00 | 3.74 | 242.54 | 27.38 | 287.83 | 0.4840 | -149.0 | -61.0 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 2.73 | 242.47 | 27.31 | 285.86 | 0.4784 | 542.0 | 478.9 | |
| 0.00 | 2.39 | 0.00 | 1.34 | 1.64 | 242.42 | 27.26 | 283.66 | 0.4731 | 785.0 | 664.3 | |
| 0.00 | 10.37 | 0.00 | 5.83 | 2.39 | 242.33 | 27.17 | 285.26 | 0.4748 | 720.0 | 632.9 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 1.57 | 242.21 | 27.05 | 283.63 | 0.4697 | 717.0 | 576.6 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 2.72 | 242.17 | 27.01 | 286.02 | 0.4739 | 807.0 | 749.2 | |
| 0.53 | -39.00 | 0.30 | -39.00 | 3.14 | 242.08 | 26.92 | 286.93 | 0.4745 | 937.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 0.65 | 241.96 | 26.81 | 281.83 | 0.4626 | 720.0 | 619.2 | |
| 0.00 | 2.84 | 0.00 | 1.60 | 5.28 | 242.06 | 26.90 | 291.16 | 0.4851 | 507.0 | 426.8 | |
| 5.32 | -39.00 | 2.98 | -39.00 | 3.50 | 241.78 | 26.63 | 287.83 | 0.4718 | 810.0 | 999999 | |
| 3.37 | 6.74 | 1.89 | 3.77 | 3.07 | 241.67 | 26.51 | 287.03 | 0.4681 | 938.8 | 676.2 | |
| 1.68 | -39.00 | 0.95 | -39.00 | 3.92 | 241.66 | 26.50 | 288.76 | 0.4722 | 614.7 | 999999 | |
| 1.24 | -39.00 | 0.70 | -39.00 | 4.93 | 241.70 | 26.55 | 290.74 | 0.4781 | 639.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 2.39 | 241.59 | 26.43 | 285.70 | 0.4638 | 893.0 | 750.4 | |
| 0.00 | 3.01 | 0.00 | 1.68 | 2.84 | 241.46 | 26.30 | 286.71 | 0.4640 | 699.0 | 658.2 | |
| 0.00 | 3.99 | 0.00 | 2.25 | 5.90 | 241.55 | 26.39 | 292.75 | 0.4814 | 783.0 | 627.2 | |
| 0.00 | 5.49 | 0.00 | 3.06 | 2.11 | 241.41 | 26.25 | 285.22 | 0.4600 | 732.0 | 656.6 | |
| 2.75 | -39.00 | 1.54 | -39.00 | 4.58 | 241.45 | 26.29 | 290.24 | 0.4726 | 776.0 | 999999 | |
| 2.48 | 6.03 | 1.40 | 3.39 | 5.44 | 241.46 | 26.30 | 291.93 | 0.4774 | 829.4 | 661.0 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 1.71 | 241.14 | 25.98 | 284.52 | 0.4541 | 908.0 | 688.9 | |
| 52.37 | -39.00 | 29.24 | -39.00 | 3.98 | 241.03 | 25.87 | 289.35 | 0.4632 | 1331.6 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 2.22 | 240.94 | 25.78 | 285.72 | 0.4534 | 915.0 | 788.9 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 6.28 | 241.06 | 25.90 | 293.88 | 0.4769 | 607.0 | 541.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 6.21 | 240.93 | 25.77 | 293.87 | 0.4745 | 714.0 | 611.8 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 5.16 | 240.60 | 25.45 | 292.05 | 0.4636 | 801.0 | 512.3 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 6.17 | 240.65 | 25.49 | 294.02 | 0.4704 | 612.0 | 646.2 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 2.92 | 240.33 | 25.17 | 287.63 | 0.4475 | 701.0 | 594.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 3.07 | 240.16 | 25.00 | 288.06 | 0.4458 | 850.0 | 688.9 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 6.22 | 240.22 | 25.06 | 294.48 | 0.4646 | 719.0 | 547.9 | |
| 0.00 | 1.77 | 0.00 | 0.99 | 5.32 | 240.11 | 24.95 | 292.79 | 0.4575 | 716.0 | 517.9 | |
| 2.84 | 24.37 | 1.57 | 13.50 | 4.67 | 239.85 | 24.69 | 291.67 | 0.4499 | 967.1 | 749.0 | |
| 4.34 | -70.00 | 2.40 | -70.00 | 4.30 | 239.74 | 24.58 | 290.99 | 0.4461 | 1139.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 4.01 | 239.46 | 24.30 | 290.62 | 0.4404 | 840.0 | 733.9 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 5.32 | 238.45 | 23.29 | 294.28 | 0.4337 | 802.0 | 625.2 | |
| 0.00 | 1.95 | 0.00 | 1.06 | 5.02 | 237.75 | 22.59 | 294.31 | 0.4217 | 810.0 | 602.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
