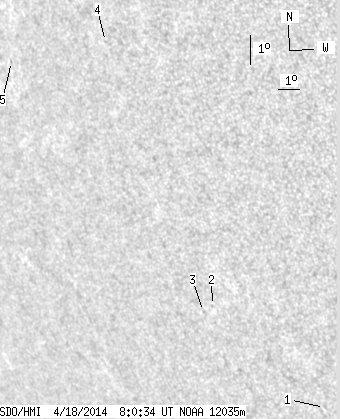

SDO HMI 2014-04-18 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.00 | 0.00 | 3.10 | -23.73 | 166.93 | -48.23 | 116.85 | 0.7696 | -188.6 | -248.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.46 | -30.60 | 171.72 | -43.44 | 127.16 | 0.7449 | 583.0 | 465.9 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -26.98 | 168.26 | -46.90 | 121.25 | 0.7635 | -184.0 | -287.9 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -27.14 | 167.72 | -47.44 | 121.27 | 0.7692 | -467.0 | -345.2 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -18.44 | 166.99 | -48.16 | 109.90 | 0.7540 | -431.0 | -416.6 | |
| 0.00 | 0.89 | 0.00 | 0.74 | -18.72 | 162.15 | -53.01 | 109.40 | 0.8043 | -444.0 | -426.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
