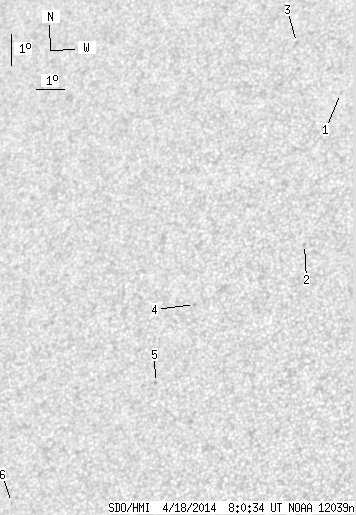

SDO HMI 2014-04-18 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.29 | 0.00 | 3.77 | 15.72 | 188.49 | -26.67 | 51.17 | 0.5638 | 24.7 | 32.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.53 | 20.76 | 191.95 | -23.21 | 40.40 | 0.5707 | -531.0 | -441.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 15.82 | 191.41 | -23.75 | 47.62 | 0.5266 | -684.0 | -555.2 | |
| 0.00 | 1.15 | 0.00 | 0.72 | 22.56 | 190.07 | -25.09 | 40.42 | 0.6063 | -637.0 | -571.2 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 14.06 | 187.83 | -27.33 | 54.12 | 0.5518 | 695.0 | 556.0 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 11.64 | 186.76 | -28.40 | 58.89 | 0.5463 | 790.0 | 610.2 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 8.14 | 181.98 | -33.18 | 68.06 | 0.5862 | 515.0 | 447.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
