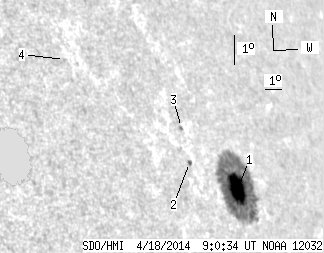

SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.37 | 189.82 | 34.55 | 209.32 | 11.80 | 275.86 | 61.25 | 286.10 | 0.8950 | -694.8 | -137.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.48 | 185.12 | 33.65 | 204.69 | 11.77 | 275.95 | 61.34 | 286.04 | 0.8956 | -773.5 | -144.3 | |
| 0.89 | 2.13 | 0.90 | 2.16 | 12.36 | 273.20 | 58.58 | 287.36 | 0.8754 | -392.8 | -262.7 | |
| 0.00 | 1.42 | 0.00 | 1.45 | 13.46 | 273.14 | 58.52 | 288.59 | 0.8771 | 577.0 | 453.9 | |
| 0.00 | 1.15 | 0.00 | 1.02 | 15.15 | 267.29 | 52.68 | 292.30 | 0.8318 | 411.0 | 409.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
