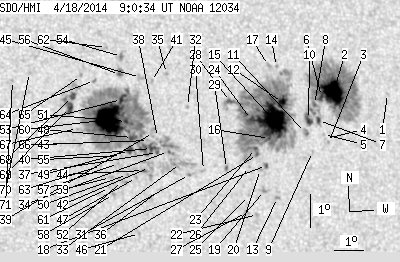

SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 180.05 | 1039.92 | 105.16 | 607.69 | 4.22 | 245.07 | 30.46 | 286.98 | 0.5298 | -86.2 | -117.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.72 | 5.26 | 250.98 | 36.37 | 285.69 | 0.6156 | -579.0 | -466.0 | |
| 35.62 | 224.73 | 21.78 | 137.41 | 5.18 | 248.97 | 34.36 | 286.49 | 0.5884 | -1174.7 | -294.6 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 3.64 | 248.70 | 34.09 | 284.06 | 0.5789 | -512.0 | -436.3 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 3.75 | 248.60 | 33.99 | 284.31 | 0.5778 | -543.0 | -429.6 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 3.87 | 248.53 | 33.92 | 284.53 | 0.5773 | -598.0 | -489.8 | |
| 1.06 | -2.00 | 0.65 | -2.00 | 5.03 | 248.52 | 33.91 | 286.47 | 0.5817 | -1124.5 | 999999 | |
| 1.77 | -2.00 | 1.07 | -2.00 | 4.29 | 248.37 | 33.76 | 285.31 | 0.5767 | -716.5 | 999999 | |
| 0.97 | -2.00 | 0.59 | -2.00 | 4.77 | 248.25 | 33.64 | 286.18 | 0.5770 | -1005.2 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.85 | 3.33 | 248.11 | 33.50 | 283.81 | 0.5695 | -389.0 | -380.5 | |
| 4.79 | -2.00 | 2.88 | -2.00 | 4.30 | 248.01 | 33.40 | 285.50 | 0.5718 | -968.9 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.18 | 3.90 | 247.88 | 33.27 | 284.88 | 0.5684 | -917.0 | -778.9 | |
| 6.73 | 355.09 | 4.02 | 210.40 | 4.78 | 247.10 | 32.48 | 286.76 | 0.5611 | -953.3 | -583.9 | |
| 0.00 | 1.86 | 0.00 | 1.10 | 1.87 | 246.80 | 32.19 | 281.80 | 0.5461 | -907.0 | -719.5 | |
| 0.00 | 1.33 | 0.00 | 0.80 | 5.87 | 246.95 | 32.34 | 288.70 | 0.5639 | 134.0 | 175.9 | |
| 47.14 | -12.00 | 28.01 | -12.00 | 4.24 | 246.75 | 32.13 | 286.02 | 0.5540 | -1220.1 | 999999 | |
| 0.27 | -12.00 | 0.16 | -12.00 | 3.65 | 246.58 | 31.96 | 285.07 | 0.5493 | -1095.0 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.48 | 5.89 | 246.66 | 32.05 | 288.89 | 0.5601 | -170.0 | -73.3 | |
| 1.06 | 2.75 | 0.63 | 1.62 | 2.82 | 246.44 | 31.83 | 283.67 | 0.5442 | -766.0 | -642.7 | |
| 0.00 | 3.81 | 0.00 | 2.24 | 2.06 | 246.35 | 31.73 | 282.33 | 0.5402 | -973.0 | -783.1 | |
| 0.00 | 1.77 | 0.00 | 1.04 | 2.69 | 246.22 | 31.61 | 283.53 | 0.5406 | -895.0 | -668.2 | |
| 0.80 | -12.00 | 0.47 | -12.00 | 3.14 | 246.13 | 31.52 | 284.38 | 0.5410 | -860.6 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.19 | 1.32 | 246.08 | 31.47 | 281.09 | 0.5340 | -825.0 | -696.2 | |
| 0.97 | -12.00 | 0.57 | -12.00 | 3.32 | 246.07 | 31.45 | 284.74 | 0.5408 | -1050.2 | 999999 | |
| 0.27 | -12.00 | 0.16 | -12.00 | 4.20 | 245.96 | 31.35 | 286.35 | 0.5429 | -1275.3 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 1.88 | 245.81 | 31.20 | 282.24 | 0.5319 | -666.0 | -514.5 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 2.76 | 245.83 | 31.22 | 283.84 | 0.5353 | -811.0 | -658.4 | |
| 0.00 | 2.22 | 0.00 | 1.29 | 1.36 | 245.70 | 31.08 | 281.33 | 0.5285 | -888.0 | -756.0 | |
| 1.77 | -12.00 | 1.04 | -12.00 | 4.72 | 245.25 | 30.63 | 287.67 | 0.5350 | -853.4 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.18 | 2.66 | 245.02 | 30.41 | 284.05 | 0.5233 | -987.0 | -827.6 | |
| 0.00 | 1.77 | 0.00 | 1.02 | 2.57 | 244.22 | 29.61 | 284.26 | 0.5113 | -743.0 | -569.8 | |
| 0.00 | 1.60 | 0.00 | 0.91 | 2.42 | 243.73 | 29.12 | 284.24 | 0.5036 | 482.0 | 400.4 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 4.49 | 243.73 | 29.12 | 288.16 | 0.5127 | 578.0 | 425.2 | |
| 0.00 | 13.29 | 0.00 | 7.60 | 2.74 | 243.43 | 28.82 | 285.02 | 0.5005 | -35.0 | 209.0 | |
| 0.35 | 12.94 | 0.20 | 7.38 | 3.09 | 243.03 | 28.41 | 285.91 | 0.4961 | 564.0 | 136.8 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 5.47 | 243.06 | 28.45 | 290.41 | 0.5080 | 604.0 | 499.5 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 1.92 | 242.72 | 28.11 | 283.78 | 0.4868 | 673.0 | 577.1 | |
| 0.71 | 320.08 | 0.40 | 179.96 | 3.04 | 242.65 | 28.04 | 286.04 | 0.4904 | 619.0 | 432.0 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 3.50 | 242.66 | 28.05 | 286.93 | 0.4926 | 399.0 | 448.5 | |
| 0.00 | 5.67 | 0.00 | 3.22 | 3.65 | 242.53 | 27.92 | 287.29 | 0.4914 | -46.0 | 28.7 | |
| 3.19 | -37.00 | 1.81 | -37.00 | 3.16 | 242.45 | 27.83 | 286.38 | 0.4879 | 729.9 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.01 | 5.21 | 242.53 | 27.92 | 290.28 | 0.4991 | 344.0 | 333.7 | |
| 0.00 | 9.66 | 0.00 | 5.46 | 2.58 | 242.36 | 27.75 | 285.28 | 0.4842 | 488.0 | 574.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 3.40 | 242.35 | 27.74 | 286.91 | 0.4876 | 556.0 | 443.9 | |
| 0.44 | 2.22 | 0.25 | 1.25 | 2.48 | 242.15 | 27.54 | 285.20 | 0.4807 | 874.2 | 783.3 | |
| 0.00 | 3.81 | 0.00 | 2.17 | 5.31 | 242.16 | 27.55 | 290.74 | 0.4944 | 475.0 | 415.7 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 0.56 | 241.99 | 27.38 | 281.36 | 0.4709 | 748.0 | 577.6 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 2.25 | 241.91 | 27.30 | 284.89 | 0.4762 | 730.0 | 607.9 | |
| 2.92 | -37.00 | 1.65 | -37.00 | 3.47 | 241.81 | 27.20 | 287.39 | 0.4800 | 870.0 | 999999 | |
| 3.01 | -37.00 | 1.70 | -37.00 | 3.06 | 241.70 | 27.08 | 286.66 | 0.4765 | 959.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 2.33 | 241.61 | 27.00 | 285.22 | 0.4720 | 864.0 | 711.2 | |
| 1.51 | -37.00 | 0.85 | -37.00 | 3.94 | 241.62 | 27.01 | 288.46 | 0.4796 | 642.5 | 999999 | |
| 0.00 | 3.46 | 0.00 | 1.94 | 2.14 | 241.44 | 26.82 | 284.93 | 0.4686 | 856.0 | 665.9 | |
| 3.99 | -37.00 | 2.25 | -37.00 | 4.61 | 241.48 | 26.87 | 289.87 | 0.4809 | 722.1 | 999999 | |
| 0.00 | 3.28 | 0.00 | 1.86 | 5.93 | 241.54 | 26.93 | 292.37 | 0.4892 | 774.0 | 607.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 2.90 | 241.42 | 26.81 | 286.50 | 0.4717 | 885.0 | 737.2 | |
| 0.71 | 4.25 | 0.40 | 2.41 | 5.37 | 241.45 | 26.83 | 291.38 | 0.4846 | 948.5 | 739.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 2.65 | 241.31 | 26.70 | 286.06 | 0.4690 | 777.0 | 539.0 | |
| 0.00 | 1.68 | 0.00 | 0.94 | 1.70 | 241.12 | 26.51 | 284.20 | 0.4621 | 798.0 | 607.2 | |
| 0.00 | 2.13 | 0.00 | 1.19 | 2.22 | 241.03 | 26.42 | 285.32 | 0.4629 | 857.0 | 729.5 | |
| 52.73 | -37.00 | 29.58 | -37.00 | 3.98 | 241.05 | 26.44 | 288.93 | 0.4715 | 1304.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 1.91 | 240.99 | 26.38 | 284.71 | 0.4610 | 719.0 | 574.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 6.18 | 241.05 | 26.44 | 293.25 | 0.4837 | 776.0 | 665.8 | |
| 0.00 | 0.53 | 0.00 | 0.30 | 2.57 | 240.74 | 26.13 | 286.24 | 0.4601 | 849.0 | 696.2 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 5.15 | 240.59 | 25.98 | 291.61 | 0.4712 | 742.0 | 493.1 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 5.29 | 240.16 | 25.55 | 292.22 | 0.4658 | 735.0 | 587.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 3.21 | 240.05 | 25.44 | 288.05 | 0.4529 | 752.0 | 679.6 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 3.66 | 239.96 | 25.35 | 289.06 | 0.4540 | 752.0 | 601.5 | |
| 2.48 | 21.71 | 1.38 | 12.07 | 4.63 | 239.83 | 25.22 | 291.16 | 0.4573 | 967.4 | 783.0 | |
| 4.79 | -68.00 | 2.66 | -68.00 | 4.29 | 239.72 | 25.11 | 290.55 | 0.4537 | 1117.5 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 5.32 | 238.43 | 23.82 | 293.77 | 0.4412 | 772.0 | 572.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 5.05 | 237.86 | 23.25 | 293.73 | 0.4313 | 774.0 | 601.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
