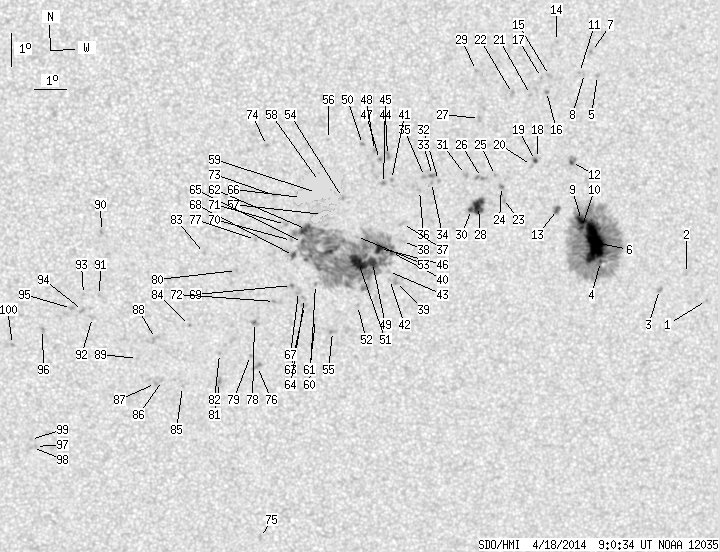

SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.77 | 1001.59 | 70.86 | 510.96 | -16.20 | 222.03 | 7.42 | 211.47 | 0.2357 | 318.5 | 176.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.47 | -17.96 | 231.15 | 16.53 | 230.64 | 0.3517 | 739.0 | 632.0 | |
| 0.00 | 1.60 | 0.00 | 0.84 | -17.14 | 230.42 | 15.80 | 231.38 | 0.3345 | 863.0 | 712.8 | |
| 0.00 | 2.75 | 0.00 | 1.44 | -17.66 | 229.58 | 14.96 | 228.69 | 0.3290 | 1009.0 | 796.1 | |
| 1.15 | 314.41 | 0.60 | 162.53 | -16.83 | 227.60 | 12.98 | 226.86 | 0.2960 | 709.7 | 422.7 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -11.17 | 227.19 | 12.57 | 244.08 | 0.2385 | 918.0 | 712.5 | |
| 45.02 | -4.00 | 23.27 | -4.00 | -16.26 | 227.33 | 12.72 | 227.82 | 0.2865 | 1496.6 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -10.45 | 226.97 | 12.36 | 246.58 | 0.2304 | 825.0 | 715.2 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -11.12 | 226.78 | 12.16 | 243.58 | 0.2319 | 687.0 | 634.0 | |
| 6.03 | -4.00 | 3.10 | -4.00 | -15.59 | 226.91 | 12.29 | 228.74 | 0.2741 | 1452.2 | 999999 | |
| 3.63 | -4.00 | 1.87 | -4.00 | -15.80 | 226.92 | 12.31 | 228.16 | 0.2765 | 1407.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.09 | 226.62 | 12.01 | 243.40 | 0.2293 | 1019.0 | 840.5 | |
| 0.71 | 5.23 | 0.36 | 2.67 | -13.83 | 226.49 | 11.88 | 233.21 | 0.2507 | -1170.2 | -883.1 | |
| 1.86 | 4.79 | 0.95 | 2.45 | -15.27 | 226.12 | 11.51 | 227.86 | 0.2607 | 1145.7 | 886.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -10.17 | 225.86 | 11.25 | 245.90 | 0.2113 | 751.0 | 682.1 | |
| 0.00 | 2.75 | 0.00 | 1.39 | -11.20 | 225.68 | 11.07 | 241.15 | 0.2160 | 907.0 | 724.8 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -11.69 | 225.61 | 11.00 | 239.02 | 0.2188 | 1089.0 | 836.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -11.27 | 225.43 | 10.82 | 240.36 | 0.2128 | 987.0 | 743.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -13.72 | 225.41 | 10.80 | 231.01 | 0.2352 | -706.0 | -644.4 | |
| 1.06 | 2.04 | 0.54 | 1.04 | -13.79 | 225.35 | 10.74 | 230.65 | 0.2351 | -937.2 | -787.5 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -13.94 | 225.23 | 10.62 | 229.82 | 0.2351 | -180.0 | -142.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -11.78 | 225.11 | 10.50 | 237.48 | 0.2125 | 888.0 | 699.5 | |
| 0.00 | 2.84 | 0.00 | 1.43 | -11.76 | 224.55 | 9.94 | 236.18 | 0.2043 | 801.0 | 675.0 | |
| 0.00 | 3.19 | 0.00 | 1.63 | -14.96 | 224.39 | 9.78 | 224.28 | 0.2362 | 587.0 | 700.2 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -14.59 | 224.31 | 9.70 | 225.19 | 0.2309 | 1037.0 | 877.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -14.26 | 224.11 | 9.50 | 225.67 | 0.2246 | 977.0 | 738.5 | |
| 0.00 | 4.79 | 0.00 | 2.43 | -14.33 | 223.67 | 9.06 | 224.13 | 0.2201 | 1003.0 | 838.6 | |
| 0.00 | 2.92 | 0.00 | 1.48 | -12.53 | 223.54 | 8.93 | 230.20 | 0.1982 | 859.0 | 707.2 | |
| 10.72 | 17.90 | 5.46 | 9.11 | -15.21 | 223.61 | 9.00 | 221.19 | 0.2303 | 1114.2 | 822.7 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -11.08 | 223.40 | 8.79 | 236.03 | 0.1817 | 884.0 | 683.4 | |
| 1.68 | -28.00 | 0.86 | -28.00 | -15.31 | 223.40 | 8.78 | 220.24 | 0.2291 | 1072.7 | 999999 | |
| 0.00 | 3.01 | 0.00 | 1.53 | -14.24 | 223.17 | 8.55 | 222.80 | 0.2132 | 872.0 | 759.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.43 | 222.33 | 7.71 | 219.30 | 0.2062 | 1011.0 | 790.9 | |
| 0.00 | 3.19 | 0.00 | 1.61 | -14.28 | 222.13 | 7.52 | 219.08 | 0.2021 | 1098.0 | 922.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.50 | 222.11 | 7.50 | 218.31 | 0.2047 | 817.0 | 685.4 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -14.32 | 221.88 | 7.27 | 218.04 | 0.1999 | 1089.0 | 878.5 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -14.75 | 221.74 | 7.13 | 216.18 | 0.2042 | 855.0 | 687.0 | |
| 0.00 | 2.92 | 0.00 | 1.48 | -15.76 | 221.24 | 6.63 | 211.48 | 0.2137 | 941.0 | 680.2 | |
| 0.00 | 2.84 | 0.00 | 1.44 | -16.31 | 221.26 | 6.64 | 210.19 | 0.2218 | 850.0 | 669.1 | |
| 0.00 | 3.46 | 0.00 | 1.76 | -17.54 | 221.08 | 6.46 | 206.87 | 0.2386 | 870.0 | 657.6 | |
| 1.24 | 373.08 | 0.63 | 189.22 | -16.65 | 220.92 | 6.31 | 208.16 | 0.2240 | 907.3 | 283.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.42 | 220.85 | 6.24 | 213.64 | 0.1910 | 1094.0 | 925.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.48 | 220.88 | 6.27 | 206.30 | 0.2362 | 584.0 | 386.4 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -17.24 | 220.84 | 6.23 | 206.65 | 0.2322 | 562.0 | 416.8 | |
| 0.00 | 3.37 | 0.00 | 1.70 | -13.69 | 220.71 | 6.10 | 215.32 | 0.1793 | 943.0 | 869.2 | |
| 0.00 | 2.04 | 0.00 | 1.03 | -14.54 | 220.61 | 6.00 | 212.23 | 0.1904 | 1111.0 | 887.2 | |
| 6.82 | -40.00 | 3.46 | -40.00 | -16.53 | 220.54 | 5.92 | 206.96 | 0.2192 | 1323.2 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -13.81 | 220.46 | 5.85 | 213.83 | 0.1787 | 1066.0 | 909.3 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -13.54 | 220.30 | 5.69 | 213.98 | 0.1733 | 977.0 | 858.5 | |
| 7.09 | -40.00 | 3.60 | -40.00 | -16.96 | 220.33 | 5.72 | 205.27 | 0.2242 | 1244.1 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -13.36 | 219.92 | 5.31 | 212.79 | 0.1671 | 994.0 | 827.5 | |
| 17.55 | -40.00 | 8.91 | -40.00 | -16.97 | 219.89 | 5.27 | 203.54 | 0.2212 | 1371.0 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -18.29 | 219.89 | 5.28 | 201.27 | 0.2419 | -753.0 | -495.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -16.17 | 219.80 | 5.19 | 204.78 | 0.2082 | 751.0 | 621.3 | |
| 0.00 | 1.60 | 0.00 | 0.80 | -14.98 | 219.34 | 4.72 | 205.38 | 0.1865 | -759.0 | -657.9 | |
| 0.00 | 2.75 | 0.00 | 1.41 | -19.10 | 219.12 | 4.50 | 197.31 | 0.2505 | -870.0 | -750.5 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -13.22 | 218.87 | 4.26 | 207.76 | 0.1558 | 829.0 | 629.4 | |
| 2.04 | 132.66 | 1.03 | 66.78 | -15.50 | 218.72 | 4.11 | 201.35 | 0.1905 | -879.3 | -518.1 | |
| 4.25 | -57.00 | 2.14 | -57.00 | -14.50 | 218.61 | 4.00 | 202.96 | 0.1738 | -1347.7 | 999999 | |
| 8.51 | -57.00 | 4.28 | -57.00 | -14.83 | 218.52 | 3.91 | 201.77 | 0.1785 | -1364.0 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -17.65 | 218.54 | 3.93 | 197.02 | 0.2242 | -774.0 | -563.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.73 | 218.57 | 3.95 | 195.73 | 0.2419 | -733.0 | -610.4 | |
| 7.36 | -40.00 | 3.71 | -40.00 | -15.96 | 218.23 | 3.62 | 198.19 | 0.1951 | -969.3 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.26 | -18.30 | 218.21 | 3.59 | 194.86 | 0.2332 | -958.0 | -762.2 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -18.08 | 218.20 | 3.59 | 195.09 | 0.2296 | -669.0 | -570.4 | |
| 1.42 | -40.00 | 0.72 | -40.00 | -16.36 | 218.11 | 3.50 | 197.01 | 0.2010 | -721.6 | 999999 | |
| 8.24 | -57.00 | 4.15 | -57.00 | -14.99 | 218.06 | 3.44 | 199.09 | 0.1782 | -1139.2 | 999999 | |
| 0.00 | 4.61 | 0.00 | 2.34 | -17.87 | 218.01 | 3.40 | 194.56 | 0.2253 | -567.0 | -710.6 | |
| 1.77 | -40.00 | 0.90 | -40.00 | -16.76 | 217.83 | 3.22 | 195.19 | 0.2062 | -1015.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.69 | 217.78 | 3.17 | 193.84 | 0.2213 | -1148.0 | -1009.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -16.30 | 217.76 | 3.15 | 195.49 | 0.1983 | -767.0 | -601.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -15.81 | 217.57 | 2.95 | 195.26 | 0.1893 | -1011.0 | -816.9 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -18.18 | 217.25 | 2.64 | 191.14 | 0.2276 | -1045.0 | -829.6 | |
| 0.00 | 2.22 | 0.00 | 1.11 | -14.93 | 217.21 | 2.60 | 194.74 | 0.1731 | -976.0 | -866.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -13.41 | 216.95 | 2.34 | 195.78 | 0.1465 | -923.0 | -677.9 | |
| 0.00 | 2.57 | 0.00 | 1.36 | -25.60 | 216.92 | 2.31 | 185.98 | 0.3497 | -920.0 | -640.5 | |
| 0.00 | 4.43 | 0.00 | 2.27 | -20.20 | 216.74 | 2.13 | 187.73 | 0.2599 | -975.0 | -789.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -16.28 | 216.63 | 2.02 | 190.11 | 0.1936 | -873.0 | -743.2 | |
| 0.62 | 3.37 | 0.32 | 1.72 | -18.83 | 216.63 | 2.01 | 188.11 | 0.2367 | -1105.6 | -810.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -19.86 | 216.51 | 1.90 | 187.08 | 0.2537 | -938.0 | -776.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.23 | 216.04 | 1.43 | 186.60 | 0.2083 | -1146.0 | -916.2 | |
| 0.00 | 3.46 | 0.00 | 1.78 | -20.70 | 215.52 | 0.91 | 183.21 | 0.2664 | -1035.0 | -793.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -19.79 | 215.52 | 0.90 | 183.41 | 0.2511 | -923.0 | -720.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -16.71 | 215.03 | 0.42 | 182.05 | 0.1980 | -798.0 | -646.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -18.93 | 214.56 | -0.05 | 179.78 | 0.2359 | -1029.0 | -858.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -20.82 | 214.33 | -0.28 | 179.01 | 0.2681 | -637.0 | -475.5 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -20.63 | 213.69 | -0.92 | 176.72 | 0.2653 | -766.0 | -641.3 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -20.73 | 213.46 | -1.15 | 175.95 | 0.2671 | -819.0 | -687.0 | |
| 0.00 | 3.99 | 0.00 | 2.04 | -19.33 | 213.47 | -1.14 | 175.56 | 0.2435 | -779.0 | -778.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -19.95 | 212.89 | -1.72 | 173.61 | 0.2549 | -736.0 | -597.0 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -16.02 | 211.81 | -2.81 | 165.76 | 0.1921 | -823.0 | -745.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -17.99 | 211.71 | -2.90 | 167.60 | 0.2253 | -880.0 | -737.9 | |
| 0.00 | 3.10 | 0.00 | 1.58 | -18.67 | 211.48 | -3.14 | 167.33 | 0.2374 | -690.0 | -606.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -17.95 | 211.20 | -3.41 | 165.49 | 0.2267 | -944.0 | -752.6 | |
| 0.00 | 2.13 | 0.00 | 1.08 | -18.45 | 211.16 | -3.45 | 165.88 | 0.2350 | -1038.0 | -835.1 | |
| 0.00 | 2.30 | 0.00 | 1.17 | -18.38 | 210.81 | -3.80 | 164.45 | 0.2355 | -991.0 | -737.2 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -19.03 | 209.87 | -4.74 | 161.75 | 0.2505 | -977.0 | -783.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -22.68 | 209.52 | -5.09 | 164.65 | 0.3107 | -940.0 | -726.0 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -22.71 | 209.42 | -5.19 | 164.40 | 0.3116 | -863.0 | -622.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -22.46 | 209.37 | -5.25 | 164.00 | 0.3079 | -907.0 | -797.6 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -19.48 | 208.90 | -5.71 | 159.01 | 0.2633 | -891.0 | -764.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
