SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.49 | 249.00 | 24.01 | 146.89 | -9.24 | 247.42 | 32.81 | 261.12 | 0.5430 | 364.7 | 164.6 | |
|
previous
or next observation for the same group /

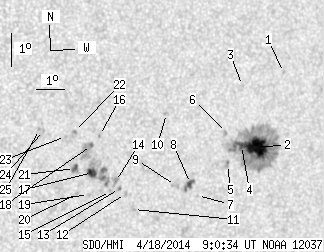

back to the solar disc SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.64 | -6.67 | 250.02 | 35.41 | 266.01 | 0.5790 | 628.0 | 519.3 | |
| 26.67 | 156.85 | 16.04 | 94.31 | -8.97 | 249.23 | 34.62 | 261.93 | 0.5690 | 1142.5 | 373.8 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -7.13 | 248.54 | 33.93 | 265.15 | 0.5580 | 579.0 | 444.0 | |
| 2.66 | -2.00 | 1.59 | -2.00 | -8.94 | 248.67 | 34.06 | 261.92 | 0.5610 | 1042.9 | 999999 | |
| 0.00 | 3.01 | 0.00 | 1.79 | -9.54 | 248.22 | 33.61 | 260.79 | 0.5552 | 752.0 | 619.8 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -8.58 | 248.09 | 33.47 | 262.51 | 0.5522 | 689.0 | 603.6 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -10.52 | 247.24 | 32.63 | 258.82 | 0.5425 | -448.0 | -363.9 | |
| 3.19 | 7.44 | 1.87 | 4.36 | -10.18 | 246.94 | 32.33 | 259.41 | 0.5377 | -819.5 | -698.0 | |
| 0.00 | 3.72 | 0.00 | 2.17 | -10.26 | 246.41 | 31.80 | 259.14 | 0.5301 | -498.0 | -331.5 | |
| 0.00 | 2.04 | 0.00 | 1.18 | -8.11 | 245.88 | 31.27 | 263.16 | 0.5196 | -701.0 | -523.8 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -11.05 | 245.00 | 30.38 | 257.28 | 0.5109 | -770.0 | -699.8 | |
| 0.00 | 2.13 | 0.00 | 1.22 | -10.58 | 244.66 | 30.05 | 258.11 | 0.5050 | -417.0 | -468.4 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -10.44 | 244.43 | 29.82 | 258.33 | 0.5014 | -778.0 | -626.5 | |
| 0.00 | 5.14 | 0.00 | 2.93 | -10.24 | 244.27 | 29.66 | 258.70 | 0.4986 | -721.0 | -561.4 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -10.55 | 244.13 | 29.51 | 258.04 | 0.4971 | -648.0 | -579.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -8.88 | 243.58 | 28.97 | 261.31 | 0.4861 | 832.0 | 724.7 | |
| 5.49 | 30.66 | 3.11 | 17.39 | -10.00 | 243.44 | 28.83 | 258.97 | 0.4858 | -965.4 | -516.2 | |
| 0.62 | 15.77 | 0.35 | 8.90 | -9.19 | 243.33 | 28.72 | 260.61 | 0.4827 | 1066.6 | 435.9 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -10.67 | 243.37 | 28.75 | 257.58 | 0.4860 | -646.0 | -530.2 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.66 | 242.98 | 28.37 | 257.49 | 0.4803 | -798.0 | -567.3 | |
| 1.86 | 5.41 | 1.05 | 3.04 | -9.91 | 242.80 | 28.19 | 259.00 | 0.4760 | -919.7 | -691.3 | |
| 0.00 | 1.86 | 0.00 | 1.04 | -8.79 | 242.71 | 28.10 | 261.32 | 0.4727 | 788.0 | 712.2 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -8.96 | 242.41 | 27.80 | 260.92 | 0.4684 | 608.0 | 508.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -8.81 | 241.64 | 27.03 | 261.08 | 0.4565 | 754.0 | 638.4 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -8.78 | 241.50 | 26.89 | 261.11 | 0.4543 | 925.0 | 793.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
