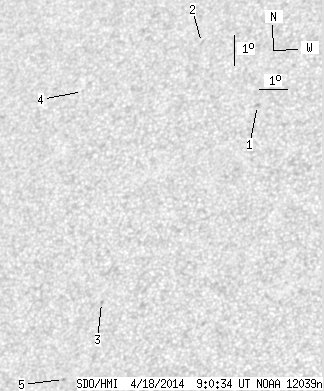

SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.74 | 0.00 | 4.07 | 18.00 | 189.10 | -25.51 | 46.81 | 0.5694 | -86.4 | -140.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 1.11 | 20.26 | 192.35 | -22.26 | 39.86 | 0.5566 | -796.0 | -686.0 | |
| 0.00 | 1.42 | 0.00 | 0.88 | 22.47 | 190.00 | -24.61 | 39.99 | 0.6011 | -617.0 | -552.9 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 14.04 | 187.81 | -26.81 | 53.63 | 0.5454 | 682.0 | 519.0 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 21.00 | 185.97 | -28.64 | 45.93 | 0.6250 | -459.0 | -385.4 | |
| 0.00 | 1.24 | 0.00 | 0.73 | 11.65 | 186.76 | -27.85 | 58.38 | 0.5394 | 758.0 | 599.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
