SDO HMI 2014-04-18 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.14 | 149.13 | 21.07 | 118.01 | 11.96 | 262.33 | 48.26 | 290.33 | 0.7784 | -578.3 | -182.6 | |
|
previous
or next observation for the same group /

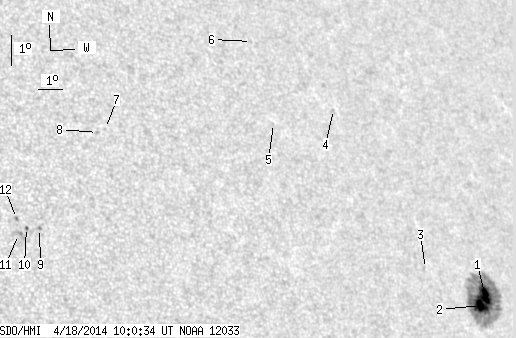

back to the solar disc SDO HMI 2014-04-18 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.85 | 133.36 | 10.43 | 107.96 | 11.93 | 263.83 | 49.76 | 289.52 | 0.7946 | -885.1 | -250.3 | |
| 12.94 | -1.00 | 10.42 | -1.00 | 11.63 | 263.51 | 49.45 | 289.26 | 0.7906 | -1146.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.55 | 12.63 | 261.20 | 47.13 | 291.34 | 0.7701 | -428.0 | -478.8 | |
| 0.00 | 0.80 | 0.00 | 0.61 | 17.52 | 258.44 | 44.37 | 298.57 | 0.7616 | -572.0 | -488.7 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 16.88 | 255.66 | 41.59 | 299.25 | 0.7304 | 560.0 | 428.8 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 19.55 | 255.51 | 41.44 | 302.60 | 0.7427 | -435.0 | -370.8 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 16.32 | 248.79 | 34.72 | 302.86 | 0.6531 | 502.0 | 403.6 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 16.17 | 248.45 | 34.39 | 302.91 | 0.6484 | 731.0 | 599.7 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 12.96 | 245.74 | 31.68 | 300.42 | 0.5957 | 689.0 | 605.1 | |
| 0.35 | 1.33 | 0.22 | 0.81 | 12.97 | 245.27 | 31.21 | 300.80 | 0.5901 | 742.2 | 632.0 | |
| 0.00 | 7.53 | 0.00 | 4.59 | 12.73 | 244.95 | 30.89 | 300.70 | 0.5846 | 580.0 | 586.5 | |
| 0.00 | 1.42 | 0.00 | 0.87 | 13.24 | 244.95 | 30.89 | 301.46 | 0.5880 | 678.0 | 604.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
