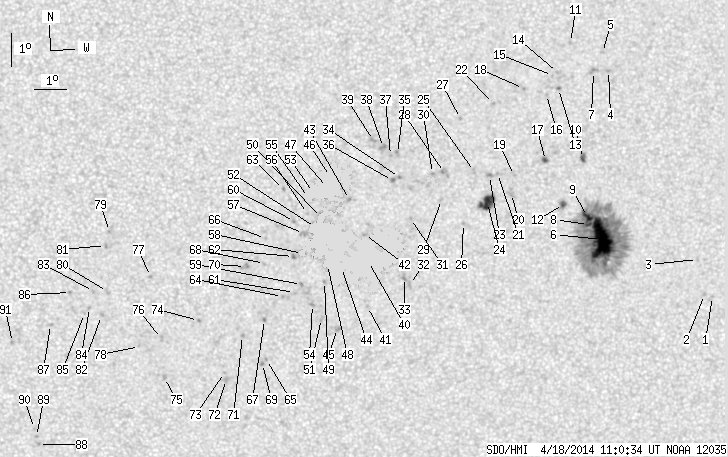

SDO HMI 2014-04-18 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.23 | 975.56 | 65.13 | 498.86 | -16.20 | 221.72 | 8.21 | 213.96 | 0.2430 | 193.1 | 196.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.57 | -17.92 | 231.11 | 17.59 | 232.32 | 0.3649 | 678.0 | 575.4 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -17.87 | 230.84 | 17.32 | 232.05 | 0.3609 | 794.0 | 725.2 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -16.80 | 230.50 | 16.99 | 234.08 | 0.3469 | 761.0 | 582.4 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -11.11 | 227.25 | 13.74 | 246.10 | 0.2560 | 905.0 | 751.3 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -10.57 | 227.04 | 13.52 | 247.80 | 0.2494 | 863.0 | 713.5 | |
| 43.50 | 298.15 | 22.58 | 154.78 | -16.26 | 227.33 | 13.82 | 230.05 | 0.3004 | 1465.7 | 435.0 | |
| 0.00 | 4.25 | 0.00 | 2.17 | -11.15 | 226.78 | 13.27 | 245.25 | 0.2490 | 808.0 | 749.0 | |
| 2.66 | -6.00 | 1.38 | -6.00 | -15.80 | 226.88 | 13.37 | 230.38 | 0.2900 | 1329.4 | 999999 | |
| 5.05 | -6.00 | 2.61 | -6.00 | -15.56 | 226.83 | 13.32 | 230.96 | 0.2870 | 1432.1 | 999999 | |
| 1.95 | 4.43 | 1.00 | 2.28 | -13.80 | 226.60 | 13.08 | 235.79 | 0.2670 | -1067.1 | -842.2 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -10.29 | 226.02 | 12.51 | 247.44 | 0.2318 | 858.0 | 589.8 | |
| 1.86 | 4.16 | 0.96 | 2.14 | -15.21 | 226.04 | 12.53 | 230.32 | 0.2732 | 1168.3 | 886.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -11.69 | 225.70 | 12.19 | 241.41 | 0.2365 | 840.0 | 700.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.20 | 225.65 | 12.14 | 243.18 | 0.2321 | 999.0 | 789.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.30 | 225.50 | 11.98 | 242.53 | 0.2305 | 783.0 | 592.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -11.87 | 225.34 | 11.82 | 239.98 | 0.2325 | 811.0 | 546.5 | |
| 1.33 | 2.57 | 0.68 | 1.31 | -13.88 | 225.40 | 11.88 | 233.02 | 0.2513 | -966.9 | -804.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -11.71 | 224.61 | 11.09 | 239.12 | 0.2205 | 912.0 | 840.5 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -14.35 | 224.44 | 10.92 | 229.22 | 0.2435 | 742.0 | 656.6 | |
| 0.00 | 5.67 | 0.00 | 2.90 | -14.90 | 224.37 | 10.85 | 227.32 | 0.2487 | 821.0 | 662.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -14.30 | 223.90 | 10.38 | 227.99 | 0.2361 | 859.0 | 647.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -12.17 | 223.69 | 10.17 | 235.07 | 0.2115 | 908.0 | 766.3 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -14.36 | 223.65 | 10.13 | 227.11 | 0.2337 | 1126.0 | 950.8 | |
| 13.38 | 17.99 | 6.83 | 9.18 | -15.19 | 223.63 | 10.11 | 224.47 | 0.2429 | 1107.8 | 787.7 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -14.25 | 223.17 | 9.66 | 226.14 | 0.2265 | 860.0 | 765.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -15.84 | 222.89 | 9.38 | 220.50 | 0.2424 | 1005.0 | 749.4 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -12.64 | 222.67 | 9.15 | 230.41 | 0.2024 | 1006.0 | 787.1 | |
| 0.00 | 5.49 | 0.00 | 2.79 | -14.29 | 222.23 | 8.71 | 223.13 | 0.2157 | 893.0 | 804.5 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -15.12 | 222.17 | 8.65 | 220.35 | 0.2253 | 777.0 | 609.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.33 | 221.86 | 8.34 | 221.78 | 0.2118 | 970.0 | 861.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -15.71 | 221.21 | 7.70 | 215.48 | 0.2231 | 905.0 | 751.9 | |
| 0.00 | 2.39 | 0.00 | 1.22 | -17.73 | 221.26 | 7.74 | 210.78 | 0.2520 | 704.0 | 593.9 | |
| 0.00 | 2.92 | 0.00 | 1.49 | -17.52 | 221.09 | 7.58 | 210.69 | 0.2475 | 846.0 | 708.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -14.46 | 220.82 | 7.31 | 217.71 | 0.2023 | 1047.0 | 868.4 | |
| 0.00 | 2.48 | 0.00 | 1.25 | -13.73 | 220.74 | 7.22 | 219.78 | 0.1918 | 974.0 | 825.3 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -14.55 | 220.61 | 7.09 | 216.60 | 0.2013 | 979.0 | 815.2 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -13.79 | 220.52 | 7.01 | 218.72 | 0.1902 | 1044.0 | 932.2 | |
| 0.00 | 3.90 | 0.00 | 1.96 | -13.55 | 220.30 | 6.78 | 218.65 | 0.1846 | 1144.0 | 873.5 | |
| 0.00 | 2.57 | 0.00 | 1.29 | -13.34 | 219.98 | 6.46 | 218.07 | 0.1785 | 1019.0 | 782.0 | |
| 15.15 | 391.53 | 7.71 | 198.94 | -17.04 | 219.93 | 6.42 | 207.71 | 0.2308 | 1363.9 | 281.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -18.43 | 219.95 | 6.43 | 205.08 | 0.2518 | -741.0 | -591.4 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -16.21 | 219.78 | 6.26 | 208.97 | 0.2173 | 1007.0 | 794.4 | |
| 0.00 | 2.13 | 0.00 | 1.07 | -15.15 | 219.28 | 5.76 | 209.56 | 0.1973 | -612.0 | -396.1 | |
| 1.15 | -40.00 | 0.59 | -40.00 | -17.23 | 219.08 | 5.57 | 204.16 | 0.2274 | -331.6 | 999999 | |
| 0.00 | 3.90 | 0.00 | 2.00 | -19.11 | 219.01 | 5.50 | 200.77 | 0.2563 | -729.0 | -679.4 | |
| 5.94 | 118.11 | 2.99 | 59.53 | -14.45 | 218.67 | 5.15 | 208.71 | 0.1818 | -1274.0 | -463.8 | |
| 12.76 | -46.00 | 6.43 | -46.00 | -14.78 | 218.58 | 5.06 | 207.42 | 0.1862 | -1273.4 | 999999 | |
| 3.19 | -40.00 | 1.62 | -40.00 | -17.14 | 218.64 | 5.12 | 202.60 | 0.2230 | -765.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.67 | 218.56 | 5.04 | 201.37 | 0.2307 | -419.0 | -378.3 | |
| 3.01 | -40.00 | 1.52 | -40.00 | -15.70 | 218.41 | 4.90 | 204.51 | 0.1990 | -1119.3 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.45 | -18.81 | 218.49 | 4.98 | 199.39 | 0.2485 | -701.0 | -629.0 | |
| 7.53 | -40.00 | 3.81 | -40.00 | -16.01 | 218.23 | 4.72 | 203.07 | 0.2026 | -1030.1 | 999999 | |
| 4.34 | -46.00 | 2.19 | -46.00 | -14.94 | 218.15 | 4.63 | 205.02 | 0.1853 | -1144.8 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -18.38 | 218.20 | 4.68 | 198.91 | 0.2399 | -997.0 | -807.9 | |
| 2.92 | -46.00 | 1.47 | -46.00 | -15.09 | 217.99 | 4.48 | 203.94 | 0.1866 | -1059.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -15.58 | 217.97 | 4.46 | 202.78 | 0.1941 | -899.0 | -671.8 | |
| 0.00 | 3.54 | 0.00 | 1.79 | -16.20 | 217.86 | 4.34 | 201.08 | 0.2031 | -633.0 | -387.6 | |
| 1.51 | -40.00 | 0.76 | -40.00 | -16.81 | 217.84 | 4.32 | 199.92 | 0.2128 | -979.1 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -17.76 | 217.83 | 4.31 | 198.39 | 0.2281 | -1116.0 | -944.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -15.83 | 217.57 | 4.05 | 200.45 | 0.1955 | -1008.0 | -759.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -18.01 | 217.61 | 4.10 | 197.19 | 0.2310 | -849.0 | -677.5 | |
| 0.00 | 2.22 | 0.00 | 1.12 | -16.90 | 217.56 | 4.04 | 198.57 | 0.2127 | -947.0 | -850.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.85 | 217.21 | 3.69 | 200.60 | 0.1777 | -1049.0 | -937.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.14 | 217.24 | 3.72 | 195.54 | 0.2312 | -982.0 | -818.6 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -20.09 | 216.76 | 3.25 | 191.79 | 0.2615 | -911.0 | -768.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -16.35 | 216.67 | 3.15 | 195.42 | 0.1993 | -844.0 | -674.5 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -18.85 | 216.68 | 3.16 | 192.58 | 0.2406 | -1117.0 | -926.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -17.12 | 216.65 | 3.13 | 194.33 | 0.2119 | -784.0 | -630.1 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -20.22 | 216.64 | 3.12 | 191.25 | 0.2631 | -1004.0 | -842.6 | |
| 0.00 | 4.43 | 0.00 | 2.24 | -17.22 | 216.05 | 2.53 | 191.59 | 0.2112 | -841.0 | -786.8 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -19.35 | 215.98 | 2.47 | 189.52 | 0.2467 | -917.0 | -771.2 | |
| 0.00 | 4.52 | 0.00 | 2.32 | -20.72 | 215.49 | 1.97 | 186.92 | 0.2685 | -1025.0 | -699.4 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -20.50 | 215.42 | 1.90 | 186.79 | 0.2647 | -716.0 | -568.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -18.88 | 214.58 | 1.06 | 184.27 | 0.2360 | -999.0 | -801.2 | |
| 0.00 | 3.01 | 0.00 | 1.55 | -20.66 | 213.50 | -0.02 | 179.93 | 0.2654 | -807.0 | -678.1 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -19.44 | 213.40 | -0.12 | 179.55 | 0.2448 | -801.0 | -765.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -17.52 | 213.06 | -0.46 | 177.92 | 0.2123 | -934.0 | -664.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -19.69 | 212.70 | -0.82 | 176.88 | 0.2494 | -711.0 | -542.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -16.14 | 211.78 | -1.74 | 171.16 | 0.1906 | -920.0 | -750.4 | |
| 0.00 | 3.28 | 0.00 | 1.67 | -17.98 | 211.69 | -1.82 | 172.13 | 0.2221 | -823.0 | -650.5 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -16.57 | 211.65 | -1.87 | 170.88 | 0.1982 | -809.0 | -710.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.72 | 211.49 | -2.02 | 171.79 | 0.2351 | -728.0 | -679.9 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -17.98 | 211.25 | -2.27 | 170.25 | 0.2232 | -784.0 | -682.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.47 | 211.12 | -2.40 | 170.09 | 0.2319 | -1040.0 | -915.7 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -18.66 | 210.95 | -2.56 | 169.59 | 0.2355 | -810.0 | -727.0 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -18.01 | 210.52 | -3.00 | 167.24 | 0.2261 | -902.0 | -721.5 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -18.99 | 209.87 | -3.65 | 165.70 | 0.2450 | -920.0 | -701.0 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -22.74 | 209.38 | -4.14 | 167.46 | 0.3080 | -882.0 | -790.4 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -22.49 | 209.32 | -4.20 | 167.09 | 0.3041 | -968.0 | -766.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -22.24 | 209.26 | -4.26 | 166.71 | 0.3003 | -594.0 | -514.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -19.54 | 208.64 | -4.88 | 161.93 | 0.2597 | -790.0 | -648.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
