SDO HMI 2014-04-18 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.88 | 236.93 | 21.51 | 141.86 | -9.21 | 247.67 | 34.15 | 261.35 | 0.5622 | 316.2 | 176.9 | |
|
previous
or next observation for the same group /

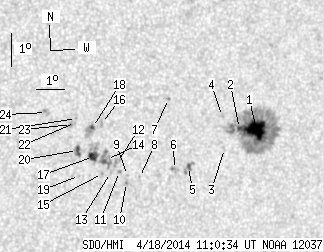

back to the solar disc SDO HMI 2014-04-18 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.10 | 159.93 | 14.69 | 97.49 | -8.93 | 249.29 | 35.77 | 262.10 | 0.5852 | 1132.6 | 354.1 | |
| 1.68 | -1.00 | 1.02 | -1.00 | -8.94 | 248.65 | 35.14 | 262.03 | 0.5763 | 1008.0 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.91 | -9.57 | 248.17 | 34.65 | 260.87 | 0.5700 | 646.0 | 491.8 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -8.61 | 247.99 | 34.47 | 262.54 | 0.5665 | 722.0 | 657.0 | |
| 1.24 | 6.73 | 0.74 | 4.00 | -10.18 | 246.91 | 33.39 | 259.59 | 0.5529 | -825.5 | -639.3 | |
| 0.00 | 3.46 | 0.00 | 2.04 | -10.29 | 246.41 | 32.89 | 259.29 | 0.5459 | -85.0 | -108.2 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -8.17 | 245.97 | 32.45 | 263.16 | 0.5371 | -730.0 | -576.5 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -10.59 | 245.17 | 31.66 | 258.47 | 0.5286 | -525.0 | -418.6 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -10.55 | 244.74 | 31.22 | 258.44 | 0.5222 | -511.0 | -400.8 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -10.77 | 244.72 | 31.21 | 258.04 | 0.5224 | -680.0 | -557.7 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -10.45 | 244.44 | 30.92 | 258.58 | 0.5176 | -693.0 | -565.2 | |
| 0.00 | 5.05 | 0.00 | 2.92 | -10.15 | 244.34 | 30.82 | 259.13 | 0.5156 | -604.0 | -533.3 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -10.49 | 244.12 | 30.61 | 258.42 | 0.5131 | -566.0 | -530.1 | |
| 0.00 | 13.29 | 0.00 | 7.64 | -10.10 | 243.94 | 30.42 | 259.13 | 0.5097 | -731.0 | -677.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -10.53 | 243.84 | 30.33 | 258.27 | 0.5090 | -778.0 | -698.4 | |
| 0.00 | 2.57 | 0.00 | 1.47 | -9.03 | 243.66 | 30.14 | 261.19 | 0.5038 | 642.0 | 583.3 | |
| 5.23 | 13.82 | 2.99 | 7.91 | -10.04 | 243.47 | 29.95 | 259.16 | 0.5026 | -919.2 | -337.2 | |
| 1.15 | 8.68 | 0.66 | 4.95 | -9.16 | 243.35 | 29.84 | 260.87 | 0.4995 | 1001.4 | 551.7 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -10.63 | 243.04 | 29.52 | 257.86 | 0.4974 | -654.0 | -553.4 | |
| 2.48 | 5.23 | 1.41 | 2.97 | -9.88 | 242.89 | 29.38 | 259.34 | 0.4937 | -852.4 | -691.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -8.92 | 242.77 | 29.25 | 261.26 | 0.4904 | 704.0 | 626.4 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -9.04 | 242.74 | 29.23 | 261.01 | 0.4902 | 743.0 | 656.7 | |
| 0.00 | 1.77 | 0.00 | 1.00 | -9.11 | 242.61 | 29.09 | 260.85 | 0.4883 | 952.0 | 743.8 | |
| 0.00 | 3.63 | 0.00 | 2.04 | -8.78 | 241.71 | 28.20 | 261.35 | 0.4743 | 877.0 | 728.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
