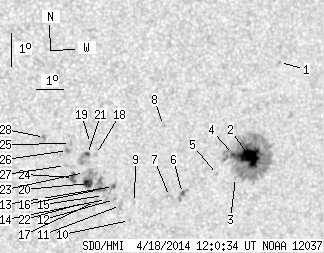

SDO HMI 2014-04-18 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.58 | 234.68 | 22.04 | 141.22 | -9.27 | 247.49 | 34.52 | 261.29 | 0.5676 | 282.4 | 138.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.49 | -6.05 | 250.13 | 37.16 | 267.02 | 0.6038 | 644.0 | 581.7 | |
| 23.74 | 149.72 | 14.58 | 91.96 | -8.93 | 249.27 | 36.30 | 262.15 | 0.5926 | 1121.8 | 340.9 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -9.59 | 248.82 | 35.85 | 260.98 | 0.5869 | 143.0 | 142.9 | |
| 1.51 | -2.00 | 0.92 | -2.00 | -8.91 | 248.67 | 35.70 | 262.14 | 0.5841 | 1036.6 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -9.54 | 248.14 | 35.17 | 260.99 | 0.5773 | 662.0 | 612.5 | |
| 0.97 | 5.85 | 0.58 | 3.49 | -10.18 | 246.91 | 33.94 | 259.68 | 0.5608 | -858.4 | -624.5 | |
| 0.00 | 3.28 | 0.00 | 1.95 | -10.29 | 246.45 | 33.48 | 259.40 | 0.5543 | -274.0 | -174.9 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -8.17 | 246.00 | 33.04 | 263.21 | 0.5456 | -618.0 | -445.2 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -10.53 | 245.20 | 32.23 | 258.70 | 0.5368 | -548.0 | -384.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -11.09 | 245.08 | 32.11 | 257.65 | 0.5361 | -670.0 | -532.9 | |
| 0.00 | 3.81 | 0.00 | 2.22 | -10.65 | 244.71 | 31.74 | 258.38 | 0.5299 | -763.0 | -525.9 | |
| 0.00 | 1.68 | 0.00 | 0.98 | -10.48 | 244.47 | 31.50 | 258.65 | 0.5261 | -643.0 | -572.9 | |
| 0.62 | 4.08 | 0.36 | 2.37 | -10.09 | 244.39 | 31.42 | 259.37 | 0.5243 | -669.3 | -524.9 | |
| 0.00 | 2.66 | 0.00 | 1.54 | -10.49 | 244.18 | 31.22 | 258.56 | 0.5220 | -704.0 | -560.9 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -10.38 | 244.06 | 31.09 | 258.75 | 0.5200 | -402.0 | -334.0 | |
| 0.97 | 11.69 | 0.56 | 6.76 | -10.20 | 243.90 | 30.93 | 259.05 | 0.5173 | -889.5 | -684.6 | |
| 0.00 | 3.28 | 0.00 | 1.89 | -10.57 | 243.80 | 30.83 | 258.32 | 0.5165 | -653.0 | -599.0 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -9.15 | 243.65 | 30.69 | 261.03 | 0.5121 | 697.0 | 566.0 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -8.83 | 243.45 | 30.48 | 261.63 | 0.5086 | 706.0 | 581.1 | |
| 5.23 | 15.59 | 3.01 | 8.97 | -10.04 | 243.49 | 30.52 | 259.28 | 0.5111 | -921.7 | -285.0 | |
| 1.15 | 7.88 | 0.66 | 4.52 | -9.17 | 243.37 | 30.40 | 260.96 | 0.5079 | 974.8 | 465.3 | |
| 0.00 | 2.04 | 0.00 | 1.17 | -10.62 | 243.45 | 30.48 | 258.14 | 0.5115 | -801.0 | -595.9 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -9.71 | 243.32 | 30.35 | 259.88 | 0.5079 | 26.0 | 54.9 | |
| 2.39 | 5.32 | 1.37 | 3.04 | -9.88 | 242.95 | 29.98 | 259.46 | 0.5027 | -887.3 | -679.9 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -8.86 | 242.74 | 29.78 | 261.46 | 0.4982 | 661.0 | 625.2 | |
| 0.00 | 2.48 | 0.00 | 1.41 | -9.08 | 242.66 | 29.69 | 261.01 | 0.4972 | 1034.0 | 831.0 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -9.53 | 242.63 | 29.66 | 260.09 | 0.4974 | 687.0 | 573.7 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -8.72 | 241.82 | 28.85 | 261.59 | 0.4841 | 916.0 | 698.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
