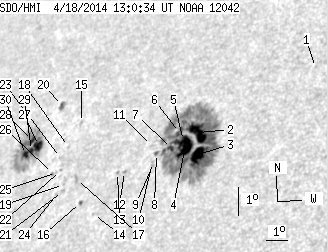

SDO HMI 2014-04-18 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.93 | 427.32 | 67.69 | 340.20 | 18.57 | 166.22 | -46.20 | 61.00 | 0.7831 | -279.1 | -165.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.45 | 20.69 | 172.86 | -39.56 | 54.90 | 0.7306 | 371.0 | 314.7 | |
| 18.34 | 321.56 | 14.02 | 246.33 | 18.84 | 168.41 | -44.01 | 59.67 | 0.7641 | -896.4 | -285.0 | |
| 14.70 | -2.00 | 11.13 | -2.00 | 18.10 | 168.60 | -43.82 | 60.45 | 0.7588 | -1028.8 | 999999 | |
| 13.82 | -2.00 | 10.61 | -2.00 | 18.31 | 167.96 | -44.46 | 60.53 | 0.7660 | -833.3 | 999999 | |
| 10.54 | -2.00 | 8.13 | -2.00 | 18.61 | 167.82 | -44.60 | 60.24 | 0.7688 | -632.9 | 999999 | |
| 4.07 | -2.00 | 3.17 | -2.00 | 18.90 | 167.54 | -44.88 | 60.05 | 0.7728 | -247.0 | 999999 | |
| 2.92 | -2.00 | 2.27 | -2.00 | 18.39 | 167.35 | -45.07 | 60.74 | 0.7723 | -477.6 | 999999 | |
| 0.62 | -2.00 | 0.49 | -2.00 | 18.27 | 166.71 | -45.71 | 61.20 | 0.7779 | -267.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.83 | 17.88 | 166.66 | -45.76 | 61.68 | 0.7768 | -398.0 | -346.6 | |
| 0.00 | 1.42 | 0.00 | 1.11 | 17.98 | 166.63 | -45.79 | 61.58 | 0.7775 | -447.0 | -285.0 | |
| 0.00 | 0.89 | 0.00 | 0.70 | 18.55 | 166.39 | -46.03 | 61.02 | 0.7823 | 445.0 | 365.9 | |
| 0.00 | 1.42 | 0.00 | 1.14 | 17.77 | 165.41 | -47.01 | 62.39 | 0.7883 | -590.0 | -421.6 | |
| 0.00 | 1.06 | 0.00 | 0.86 | 17.77 | 165.08 | -47.34 | 62.55 | 0.7914 | -372.0 | -276.2 | |
| 0.00 | 1.33 | 0.00 | 1.08 | 16.46 | 164.40 | -48.02 | 64.39 | 0.7928 | 289.0 | 355.2 | |
| 0.00 | 1.33 | 0.00 | 1.15 | 19.58 | 162.65 | -49.77 | 61.52 | 0.8205 | 475.0 | 407.8 | |
| 0.71 | 1.68 | 0.58 | 1.39 | 16.90 | 163.63 | -48.79 | 64.20 | 0.8018 | 537.6 | 489.6 | |
| 0.00 | 3.45 | 0.00 | 2.90 | 17.68 | 163.16 | -49.26 | 63.49 | 0.8090 | 646.0 | 516.7 | |
| 0.00 | 0.97 | 0.00 | 0.84 | 18.82 | 162.32 | -50.10 | 62.53 | 0.8206 | 484.0 | 408.7 | |
| 0.00 | 0.80 | 0.00 | 0.68 | 17.56 | 162.56 | -49.86 | 63.87 | 0.8140 | 643.0 | 557.9 | |
| 1.86 | 4.25 | 1.66 | 3.79 | 20.23 | 161.40 | -51.02 | 61.31 | 0.8336 | 493.3 | 368.0 | |
| 0.00 | 2.21 | 0.00 | 1.87 | 17.33 | 162.60 | -49.82 | 64.12 | 0.8128 | 644.0 | 562.8 | |
| 0.00 | 0.89 | 0.00 | 0.76 | 18.04 | 162.23 | -50.19 | 63.45 | 0.8187 | 623.0 | 568.7 | |
| 0.00 | 1.24 | 0.00 | 1.07 | 18.48 | 162.06 | -50.36 | 63.02 | 0.8217 | 541.0 | 449.5 | |
| 0.00 | 1.24 | 0.00 | 1.05 | 17.26 | 162.33 | -50.09 | 64.32 | 0.8150 | 448.0 | 407.0 | |
| 0.00 | 0.71 | 0.00 | 0.61 | 17.99 | 162.05 | -50.37 | 63.58 | 0.8201 | 400.0 | 376.2 | |
| 0.00 | 1.24 | 0.00 | 1.07 | 17.97 | 161.86 | -50.56 | 63.68 | 0.8217 | 461.0 | 362.9 | |
| 7.88 | 77.95 | 7.06 | 70.52 | 18.97 | 160.73 | -51.69 | 63.00 | 0.8350 | 806.7 | 83.2 | |
| 2.57 | -27.00 | 2.33 | -27.00 | 19.16 | 160.34 | -52.08 | 62.93 | 0.8390 | 361.1 | 999999 | |
| 2.83 | -27.00 | 2.55 | -27.00 | 18.83 | 160.43 | -51.99 | 63.27 | 0.8371 | 766.1 | 999999 | |
| 4.07 | -27.00 | 3.69 | -27.00 | 18.72 | 160.17 | -52.25 | 63.50 | 0.8389 | 561.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
