SDO HMI 2014-04-18 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 192.31 | 984.40 | 115.68 | 592.92 | 4.33 | 245.08 | 33.21 | 285.70 | 0.5684 | -59.7 | -83.9 | |
|
previous
or next observation for the same group /

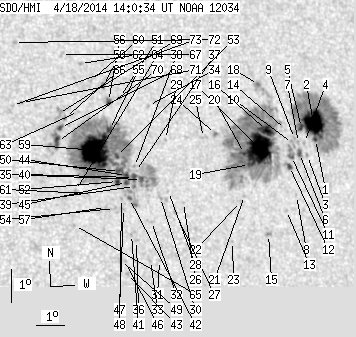

back to the solar disc SDO HMI 2014-04-18 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.51 | 190.17 | 0.95 | 120.82 | 4.73 | 249.07 | 37.20 | 284.50 | 0.6246 | -866.1 | -200.2 | |
| 31.44 | -1.00 | 19.93 | -1.00 | 5.25 | 249.03 | 37.16 | 285.32 | 0.6259 | -1134.8 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.06 | 4.22 | 248.74 | 36.87 | 283.84 | 0.6185 | -504.0 | -361.6 | |
| 0.00 | 1.68 | 0.00 | 1.06 | 4.62 | 248.65 | 36.78 | 284.50 | 0.6186 | -477.0 | -337.5 | |
| 3.99 | -1.00 | 2.51 | -1.00 | 5.07 | 248.56 | 36.69 | 285.24 | 0.6191 | -1056.9 | 999999 | |
| 1.86 | 4.34 | 1.17 | 2.72 | 4.27 | 248.44 | 36.57 | 284.03 | 0.6146 | -701.6 | -503.9 | |
| 0.00 | 1.42 | 0.00 | 0.89 | 4.60 | 248.42 | 36.55 | 284.57 | 0.6156 | -599.0 | -580.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 2.98 | 248.26 | 36.39 | 282.05 | 0.6081 | -565.0 | -404.3 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 4.72 | 248.28 | 36.41 | 284.81 | 0.6141 | -773.0 | -753.3 | |
| 0.00 | 3.01 | 0.00 | 1.88 | 4.56 | 248.19 | 36.32 | 284.60 | 0.6124 | -809.0 | -764.8 | |
| 1.77 | 7.79 | 1.11 | 4.86 | 4.16 | 248.13 | 36.26 | 283.99 | 0.6102 | -819.2 | -778.8 | |
| 1.77 | 4.34 | 1.10 | 2.70 | 3.85 | 248.04 | 36.17 | 283.53 | 0.6079 | -758.0 | -686.5 | |
| 0.00 | 1.33 | 0.00 | 0.82 | 2.50 | 247.87 | 36.00 | 281.41 | 0.6013 | -540.0 | -443.9 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 4.97 | 247.95 | 36.08 | 285.35 | 0.6107 | -528.0 | -460.8 | |
| 0.00 | 2.39 | 0.00 | 1.46 | 1.74 | 247.18 | 35.31 | 280.39 | 0.5895 | -890.0 | -712.0 | |
| 11.07 | 316.92 | 6.85 | 194.44 | 4.91 | 247.24 | 35.37 | 285.56 | 0.6009 | -938.4 | -559.6 | |
| 51.37 | -16.00 | 31.59 | -16.00 | 4.34 | 246.95 | 35.08 | 284.78 | 0.5949 | -1186.3 | 999999 | |
| 0.44 | 11.69 | 0.27 | 7.26 | 6.30 | 247.04 | 35.17 | 287.89 | 0.6039 | -32.6 | -238.7 | |
| 0.27 | -16.00 | 0.16 | -16.00 | 3.83 | 246.55 | 34.68 | 284.11 | 0.5876 | -1264.7 | 999999 | |
| 0.27 | -16.00 | 0.16 | -16.00 | 4.16 | 246.39 | 34.52 | 284.72 | 0.5865 | -1299.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 2.88 | 246.33 | 34.46 | 282.61 | 0.5813 | -773.0 | -529.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 2.69 | 246.18 | 34.31 | 282.35 | 0.5785 | -740.0 | -665.5 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 1.46 | 245.85 | 33.98 | 280.37 | 0.5702 | -776.0 | -686.9 | |
| 0.00 | 1.86 | 0.00 | 1.12 | 4.68 | 245.36 | 33.49 | 286.08 | 0.5745 | -857.0 | -744.4 | |
| 0.00 | 2.83 | 0.00 | 1.70 | 4.57 | 244.92 | 33.05 | 286.11 | 0.5679 | -694.0 | -539.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 2.55 | 244.11 | 32.24 | 282.97 | 0.5491 | -667.0 | -523.9 | |
| 0.00 | 1.59 | 0.00 | 0.94 | 2.23 | 243.82 | 31.95 | 282.53 | 0.5438 | 583.0 | 381.4 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 2.86 | 243.59 | 31.72 | 283.76 | 0.5427 | 435.0 | 289.8 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 4.44 | 243.55 | 31.68 | 286.58 | 0.5484 | 637.0 | 464.1 | |
| 0.00 | 1.77 | 0.00 | 1.04 | 2.66 | 243.30 | 31.43 | 283.54 | 0.5379 | 565.0 | 477.0 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 0.75 | 243.23 | 31.36 | 280.06 | 0.5305 | 594.0 | 495.0 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 1.92 | 242.96 | 31.09 | 282.33 | 0.5304 | 590.0 | 485.1 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 0.73 | 242.91 | 31.04 | 280.15 | 0.5259 | 573.0 | 365.7 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 5.45 | 243.00 | 31.13 | 288.66 | 0.5453 | 429.0 | 313.5 | |
| 1.95 | 32.42 | 1.14 | 18.97 | 3.18 | 242.65 | 30.78 | 284.79 | 0.5305 | 631.5 | 83.7 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 1.32 | 242.42 | 30.55 | 281.44 | 0.5206 | 617.0 | 497.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 3.41 | 242.44 | 30.57 | 285.32 | 0.5285 | 354.0 | 431.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 3.56 | 242.42 | 30.54 | 285.61 | 0.5287 | 580.0 | 442.5 | |
| 0.00 | 1.51 | 0.00 | 0.88 | 2.95 | 242.39 | 30.52 | 284.51 | 0.5260 | 685.0 | 610.5 | |
| 2.57 | 304.08 | 1.49 | 175.35 | 3.23 | 242.37 | 30.50 | 285.02 | 0.5267 | 695.0 | 386.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 1.49 | 242.25 | 30.38 | 281.84 | 0.5186 | 827.0 | 597.5 | |
| 0.89 | 13.99 | 0.51 | 8.12 | 2.58 | 242.21 | 30.34 | 283.91 | 0.5219 | 858.1 | 596.3 | |
| 0.00 | 1.86 | 0.00 | 1.07 | 0.30 | 242.10 | 30.23 | 279.64 | 0.5127 | 788.0 | 578.6 | |
| 2.21 | -40.00 | 1.29 | -40.00 | 3.28 | 242.12 | 30.25 | 285.24 | 0.5234 | 790.2 | 999999 | |
| 1.68 | -40.00 | 0.98 | -40.00 | 3.06 | 242.12 | 30.25 | 284.85 | 0.5224 | 803.5 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 0.66 | 242.03 | 30.16 | 280.36 | 0.5128 | 720.0 | 636.2 | |
| 0.00 | 1.86 | 0.00 | 1.08 | 2.27 | 241.99 | 30.12 | 283.42 | 0.5175 | 612.0 | 500.9 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 2.57 | 241.93 | 30.06 | 284.02 | 0.5178 | 788.0 | 662.4 | |
| 0.00 | 1.86 | 0.00 | 1.07 | 0.69 | 241.86 | 29.99 | 280.47 | 0.5103 | 786.0 | 635.4 | |
| 3.28 | -40.00 | 1.90 | -40.00 | 3.39 | 241.88 | 30.01 | 285.57 | 0.5204 | 887.7 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.78 | 5.65 | 241.99 | 30.12 | 289.62 | 0.5323 | 578.0 | 470.5 | |
| 2.39 | -40.00 | 1.38 | -40.00 | 3.08 | 241.80 | 29.93 | 285.04 | 0.5180 | 966.3 | 999999 | |
| 2.04 | -40.00 | 1.18 | -40.00 | 3.87 | 241.80 | 29.93 | 286.51 | 0.5212 | 473.8 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.17 | 2.25 | 241.68 | 29.81 | 283.55 | 0.5129 | 675.0 | 635.8 | |
| 3.37 | -40.00 | 1.95 | -40.00 | 4.65 | 241.59 | 29.72 | 288.07 | 0.5218 | 607.8 | 999999 | |
| 1.86 | 3.72 | 1.08 | 2.16 | 5.51 | 241.60 | 29.73 | 289.61 | 0.5261 | 769.8 | 622.4 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 2.27 | 241.36 | 29.49 | 283.73 | 0.5084 | 606.0 | 493.7 | |
| 0.00 | 2.83 | 0.00 | 1.65 | 5.99 | 241.45 | 29.58 | 290.58 | 0.5265 | 813.0 | 626.4 | |
| 58.55 | -40.00 | 33.70 | -40.00 | 3.99 | 241.07 | 29.20 | 287.15 | 0.5114 | 1185.4 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.98 | 6.13 | 241.01 | 29.14 | 291.11 | 0.5211 | 818.0 | 595.2 | |
| 0.00 | 1.51 | 0.00 | 0.86 | 2.67 | 240.79 | 28.92 | 284.79 | 0.5016 | 828.0 | 665.5 | |
| 0.00 | 1.68 | 0.00 | 0.97 | 6.64 | 240.70 | 28.83 | 292.25 | 0.5195 | 762.0 | 565.0 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 5.16 | 240.54 | 28.67 | 289.66 | 0.5094 | 630.0 | 472.0 | |
| 0.00 | 1.51 | 0.00 | 0.86 | 2.74 | 240.34 | 28.47 | 285.18 | 0.4954 | 883.0 | 759.4 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 1.68 | 240.28 | 28.41 | 283.11 | 0.4903 | 716.0 | 598.8 | |
| 0.00 | 1.86 | 0.00 | 1.06 | 4.95 | 240.08 | 28.21 | 289.58 | 0.5019 | 740.0 | 630.0 | |
| 0.00 | 2.39 | 0.00 | 1.38 | 6.88 | 240.06 | 28.19 | 293.16 | 0.5121 | 669.0 | 576.3 | |
| 1.51 | 19.04 | 0.86 | 10.83 | 4.64 | 239.90 | 28.03 | 289.11 | 0.4976 | 991.5 | 811.1 | |
| 0.00 | 6.20 | 0.00 | 3.54 | 5.07 | 239.85 | 27.98 | 289.95 | 0.4991 | 480.0 | 693.2 | |
| 4.25 | -68.00 | 2.42 | -68.00 | 4.21 | 239.78 | 27.90 | 288.36 | 0.4938 | 1122.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 5.35 | 238.60 | 26.73 | 291.39 | 0.4829 | 735.0 | 644.3 | |
| 0.00 | 1.77 | 0.00 | 1.01 | 7.19 | 238.47 | 26.60 | 294.98 | 0.4920 | 816.0 | 684.4 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 5.24 | 238.29 | 26.42 | 291.42 | 0.4779 | 724.0 | 569.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
