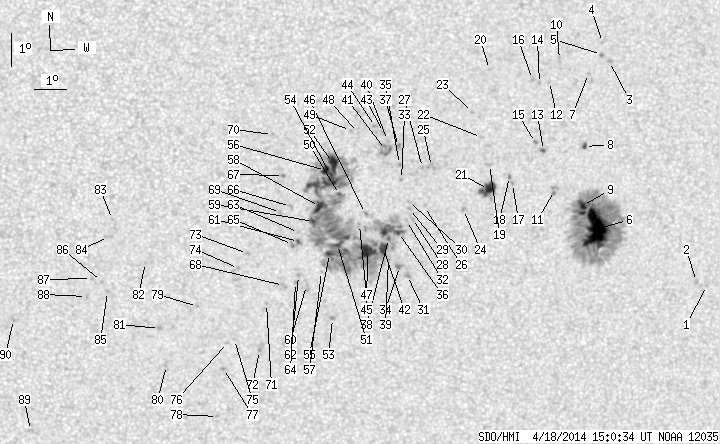

SDO HMI 2014-04-18 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.48 | 968.68 | 67.33 | 498.31 | -16.11 | 222.07 | 10.75 | 221.93 | 0.2665 | 318.6 | 171.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.62 | -17.92 | 231.08 | 19.76 | 235.25 | 0.3932 | 593.0 | 536.2 | |
| 0.00 | 1.95 | 0.00 | 1.05 | -17.80 | 230.73 | 19.41 | 235.07 | 0.3877 | 899.0 | 732.1 | |
| 0.00 | 2.39 | 0.00 | 1.24 | -11.18 | 227.35 | 16.03 | 248.74 | 0.2920 | 880.0 | 692.4 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -10.61 | 227.09 | 15.78 | 250.35 | 0.2850 | 802.0 | 569.6 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -10.97 | 227.08 | 15.76 | 249.12 | 0.2867 | 1025.0 | 863.1 | |
| 50.13 | 306.62 | 26.28 | 160.71 | -16.29 | 227.25 | 15.93 | 233.68 | 0.3284 | 1401.6 | 399.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -11.55 | 226.70 | 15.38 | 246.74 | 0.2841 | 734.0 | 612.2 | |
| 1.15 | 2.48 | 0.60 | 1.29 | -13.77 | 226.71 | 15.39 | 239.79 | 0.2995 | -958.8 | -820.9 | |
| 5.31 | -6.00 | 2.77 | -6.00 | -15.57 | 226.77 | 15.45 | 234.80 | 0.3154 | 1406.2 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -11.15 | 225.76 | 14.44 | 246.90 | 0.2671 | 841.0 | 640.4 | |
| 0.00 | 5.14 | 0.00 | 2.67 | -15.13 | 225.83 | 14.51 | 234.41 | 0.2988 | 723.0 | 831.4 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -11.82 | 225.47 | 14.15 | 244.17 | 0.2671 | 723.0 | 624.0 | |
| 0.80 | 2.13 | 0.41 | 1.10 | -13.92 | 225.40 | 14.08 | 237.21 | 0.2822 | -965.3 | -775.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -11.89 | 225.16 | 13.84 | 243.46 | 0.2629 | 839.0 | 704.8 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -13.68 | 225.13 | 13.81 | 237.48 | 0.2763 | -919.0 | -743.0 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -11.77 | 224.93 | 13.61 | 243.51 | 0.2586 | 876.0 | 682.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -14.95 | 224.47 | 13.15 | 232.38 | 0.2788 | 700.0 | 620.8 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -14.73 | 224.36 | 13.04 | 232.79 | 0.2753 | 979.0 | 859.1 | |
| 0.00 | 3.10 | 0.00 | 1.59 | -14.38 | 223.71 | 12.39 | 232.50 | 0.2631 | 913.0 | 779.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -11.50 | 223.57 | 12.25 | 242.21 | 0.2360 | 1009.0 | 821.0 | |
| 12.22 | 18.69 | 6.29 | 9.61 | -15.14 | 223.72 | 12.40 | 230.22 | 0.2709 | 1109.4 | 670.1 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -13.56 | 223.41 | 12.09 | 234.50 | 0.2512 | 778.0 | 529.5 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -12.81 | 223.09 | 11.77 | 236.41 | 0.2398 | 825.0 | 605.8 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -15.77 | 222.96 | 11.64 | 226.68 | 0.2680 | 956.0 | 681.5 | |
| 0.00 | 4.69 | 0.00 | 2.39 | -14.47 | 221.87 | 10.55 | 227.86 | 0.2402 | 745.0 | 809.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -15.70 | 221.71 | 10.39 | 223.74 | 0.2523 | 610.0 | 573.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -14.51 | 221.59 | 10.27 | 227.00 | 0.2371 | 1052.0 | 783.2 | |
| 0.00 | 3.28 | 0.00 | 1.68 | -16.07 | 221.35 | 10.03 | 221.71 | 0.2526 | 772.0 | 580.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -15.77 | 221.24 | 9.92 | 222.25 | 0.2476 | 1079.0 | 902.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -15.55 | 221.20 | 9.88 | 222.74 | 0.2446 | 805.0 | 563.0 | |
| 0.00 | 3.10 | 0.00 | 1.60 | -17.82 | 221.28 | 9.96 | 217.11 | 0.2742 | 712.0 | 671.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -16.13 | 221.16 | 9.84 | 221.01 | 0.2513 | 783.0 | 563.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -14.88 | 220.94 | 9.62 | 224.01 | 0.2336 | 955.0 | 721.2 | |
| 0.00 | 3.54 | 0.00 | 1.82 | -17.55 | 221.01 | 9.69 | 217.00 | 0.2678 | 931.0 | 742.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.43 | 220.86 | 9.54 | 225.21 | 0.2272 | 940.0 | 777.0 | |
| 1.51 | 53.67 | 0.77 | 27.44 | -16.50 | 220.92 | 9.60 | 219.35 | 0.2534 | 1015.1 | 680.1 | |
| 0.00 | 2.75 | 0.00 | 1.39 | -13.88 | 220.81 | 9.49 | 226.87 | 0.2203 | 1037.0 | 898.2 | |
| 0.71 | -36.00 | 0.36 | -36.00 | -16.69 | 220.61 | 9.29 | 217.97 | 0.2526 | 1148.4 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -17.31 | 220.64 | 9.32 | 216.54 | 0.2610 | 69.0 | 138.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -13.70 | 220.45 | 9.13 | 226.42 | 0.2139 | 469.0 | 494.5 | |
| 0.00 | 12.05 | 0.00 | 6.11 | -13.98 | 220.40 | 9.08 | 225.32 | 0.2164 | 844.0 | 739.4 | |
| 6.47 | 443.28 | 3.31 | 225.63 | -17.00 | 220.47 | 9.15 | 216.77 | 0.2552 | 1187.9 | -29.5 | |
| 0.00 | 2.92 | 0.00 | 1.48 | -13.46 | 220.32 | 9.00 | 226.86 | 0.2094 | 913.0 | 734.8 | |
| 0.00 | 2.39 | 0.00 | 1.21 | -13.28 | 220.06 | 8.74 | 226.70 | 0.2042 | 912.0 | 751.1 | |
| 15.59 | -42.00 | 7.98 | -42.00 | -17.10 | 219.96 | 8.65 | 215.02 | 0.2515 | 1314.7 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -15.94 | 219.85 | 8.53 | 217.62 | 0.2347 | 877.0 | 695.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -16.28 | 219.67 | 8.35 | 216.16 | 0.2375 | 853.0 | 652.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.47 | 219.54 | 8.22 | 224.28 | 0.2000 | -633.0 | -446.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.41 | 219.29 | 7.97 | 223.62 | 0.1963 | -575.0 | -400.2 | |
| 0.89 | -42.00 | 0.45 | -42.00 | -15.36 | 219.01 | 7.69 | 216.38 | 0.2185 | -553.9 | 999999 | |
| 3.90 | -42.00 | 1.99 | -42.00 | -16.90 | 219.00 | 7.68 | 212.43 | 0.2396 | 1048.0 | 999999 | |
| 9.30 | -42.00 | 4.70 | -42.00 | -14.42 | 218.79 | 7.47 | 218.40 | 0.2035 | -1198.7 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -19.18 | 218.94 | 7.62 | 207.54 | 0.2721 | -799.0 | -727.5 | |
| 2.04 | -42.00 | 1.03 | -42.00 | -14.76 | 218.70 | 7.38 | 217.06 | 0.2072 | -1249.0 | 999999 | |
| 3.72 | -42.00 | 1.90 | -42.00 | -17.18 | 218.76 | 7.44 | 210.98 | 0.2414 | -515.8 | 999999 | |
| 4.87 | -42.00 | 2.46 | -42.00 | -14.64 | 218.54 | 7.22 | 216.83 | 0.2039 | -1459.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.73 | 218.53 | 7.21 | 209.01 | 0.2475 | -528.0 | -409.8 | |
| 7.79 | -42.00 | 3.96 | -42.00 | -15.74 | 218.39 | 7.07 | 213.16 | 0.2176 | -1045.5 | 999999 | |
| 3.37 | -42.00 | 1.71 | -42.00 | -16.20 | 218.22 | 6.90 | 211.36 | 0.2226 | -1034.9 | 999999 | |
| 0.00 | 4.96 | 0.00 | 2.54 | -18.17 | 218.07 | 6.75 | 206.60 | 0.2504 | -710.0 | -685.6 | |
| 0.71 | 2.48 | 0.36 | 1.26 | -16.82 | 217.76 | 6.44 | 208.28 | 0.2278 | -956.4 | -733.3 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -17.86 | 217.80 | 6.48 | 206.27 | 0.2438 | -1143.0 | -941.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -16.54 | 217.75 | 6.44 | 208.85 | 0.2237 | -733.0 | -570.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.08 | 217.71 | 6.39 | 205.56 | 0.2464 | -941.0 | -774.0 | |
| 0.00 | 2.13 | 0.00 | 1.08 | -16.91 | 217.58 | 6.26 | 207.39 | 0.2277 | -1009.0 | -854.8 | |
| 0.00 | 2.75 | 0.00 | 1.39 | -15.75 | 217.48 | 6.16 | 209.66 | 0.2096 | -844.0 | -696.7 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -14.80 | 217.23 | 5.91 | 211.11 | 0.1937 | -1068.0 | -842.4 | |
| 0.00 | 2.48 | 0.00 | 1.27 | -18.18 | 217.33 | 6.01 | 204.07 | 0.2452 | -864.0 | -794.5 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -15.93 | 217.17 | 5.85 | 207.98 | 0.2099 | -952.0 | -823.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.56 | 216.86 | 5.54 | 213.18 | 0.1723 | -906.0 | -701.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -18.74 | 216.81 | 5.49 | 201.31 | 0.2504 | -882.0 | -696.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -20.20 | 216.63 | 5.31 | 198.68 | 0.2725 | -923.0 | -798.0 | |
| 0.00 | 2.21 | 0.00 | 1.12 | -17.20 | 216.16 | 4.84 | 201.38 | 0.2222 | -1042.0 | -799.8 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -17.66 | 215.89 | 4.57 | 199.54 | 0.2280 | -1065.0 | -840.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -19.86 | 215.82 | 4.50 | 196.37 | 0.2629 | -728.0 | -606.2 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -19.95 | 215.60 | 4.28 | 195.50 | 0.2634 | -731.0 | -545.0 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -20.76 | 215.49 | 4.17 | 194.32 | 0.2762 | -977.0 | -754.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -22.27 | 215.33 | 4.02 | 192.53 | 0.3000 | -712.0 | -471.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.84 | 214.61 | 3.29 | 193.09 | 0.2411 | -974.0 | -725.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -20.68 | 213.65 | 2.33 | 188.18 | 0.2687 | -631.0 | -470.5 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -19.53 | 213.41 | 2.09 | 187.98 | 0.2488 | -997.0 | -817.5 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -17.49 | 212.95 | 1.63 | 187.33 | 0.2134 | -857.0 | -687.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -16.17 | 211.90 | 0.58 | 182.98 | 0.1892 | -880.0 | -587.3 | |
| 0.00 | 3.01 | 0.00 | 1.52 | -16.69 | 211.78 | 0.46 | 182.23 | 0.1980 | -827.0 | -736.7 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -18.38 | 211.75 | 0.43 | 181.80 | 0.2270 | -914.0 | -746.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -18.07 | 211.56 | 0.24 | 181.03 | 0.2216 | -986.0 | -844.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.98 | 211.24 | -0.08 | 179.66 | 0.2200 | -691.0 | -651.0 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -18.54 | 211.08 | -0.24 | 179.02 | 0.2295 | -861.0 | -690.9 | |
| 0.00 | 3.10 | 0.00 | 1.61 | -22.71 | 209.24 | -2.08 | 173.62 | 0.3020 | -704.0 | -550.8 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -19.24 | 208.75 | -2.57 | 170.03 | 0.2453 | -900.0 | -723.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
