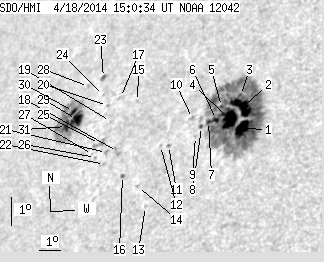

SDO HMI 2014-04-18 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.18 | 450.04 | 62.02 | 350.64 | 18.55 | 166.30 | -45.02 | 60.44 | 0.7717 | -244.2 | -169.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.17 | 340.28 | 10.53 | 255.69 | 18.06 | 168.62 | -42.70 | 59.91 | 0.7475 | -1046.0 | -296.4 | |
| 20.99 | -1.00 | 15.75 | -1.00 | 18.79 | 168.39 | -42.93 | 59.15 | 0.7533 | -926.0 | 999999 | |
| 0.27 | -1.00 | 0.20 | -1.00 | 19.17 | 168.19 | -43.13 | 58.81 | 0.7572 | -373.7 | 999999 | |
| 18.07 | -1.00 | 13.61 | -1.00 | 18.40 | 167.95 | -43.37 | 59.86 | 0.7558 | -873.6 | 999999 | |
| 0.71 | -1.00 | 0.54 | -1.00 | 18.86 | 167.45 | -43.87 | 59.57 | 0.7629 | -228.9 | 999999 | |
| 2.48 | -1.00 | 1.89 | -1.00 | 18.44 | 167.37 | -43.95 | 60.12 | 0.7617 | -483.5 | 999999 | |
| 1.15 | -1.00 | 0.88 | -1.00 | 18.40 | 167.02 | -44.30 | 60.34 | 0.7648 | -365.4 | 999999 | |
| 0.71 | -1.00 | 0.54 | -1.00 | 18.25 | 166.76 | -44.56 | 60.65 | 0.7668 | -336.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 17.94 | 166.59 | -44.73 | 61.11 | 0.7670 | -313.0 | -264.6 | |
| 0.00 | 2.30 | 0.00 | 1.79 | 18.55 | 166.26 | -45.06 | 60.55 | 0.7730 | 480.0 | 466.7 | |
| 0.00 | 1.42 | 0.00 | 1.11 | 17.73 | 165.44 | -45.88 | 61.92 | 0.7772 | -454.0 | -360.1 | |
| 0.00 | 1.06 | 0.00 | 0.84 | 17.75 | 165.07 | -46.25 | 62.07 | 0.7810 | -406.0 | -278.7 | |
| 0.00 | 1.06 | 0.00 | 0.83 | 15.79 | 165.00 | -46.32 | 64.45 | 0.7736 | 472.0 | 406.6 | |
| 0.00 | 0.97 | 0.00 | 0.77 | 16.47 | 164.43 | -46.89 | 63.89 | 0.7820 | 433.0 | 412.5 | |
| 0.00 | 0.80 | 0.00 | 0.66 | 19.31 | 163.43 | -47.89 | 61.01 | 0.8027 | 581.0 | 461.8 | |
| 0.53 | 1.59 | 0.43 | 1.29 | 16.89 | 163.59 | -47.73 | 63.76 | 0.7916 | 649.3 | 514.3 | |
| 0.00 | 2.13 | 0.00 | 1.79 | 19.50 | 162.53 | -48.79 | 61.18 | 0.8116 | 599.0 | 457.8 | |
| 0.00 | 3.90 | 0.00 | 3.20 | 17.70 | 163.07 | -48.25 | 63.03 | 0.7997 | 597.0 | 592.6 | |
| 0.00 | 0.89 | 0.00 | 0.74 | 18.73 | 162.35 | -48.97 | 62.15 | 0.8102 | 570.0 | 462.9 | |
| 0.00 | 0.80 | 0.00 | 0.68 | 19.28 | 161.98 | -49.34 | 61.68 | 0.8156 | 545.0 | 472.9 | |
| 0.00 | 2.13 | 0.00 | 1.76 | 17.71 | 162.54 | -48.78 | 63.25 | 0.8046 | 582.0 | 543.6 | |
| 0.00 | 1.42 | 0.00 | 1.17 | 17.32 | 162.59 | -48.73 | 63.69 | 0.8027 | 667.0 | 650.2 | |
| 0.80 | 2.66 | 0.69 | 2.31 | 20.25 | 161.37 | -49.95 | 60.84 | 0.8245 | 487.0 | 357.3 | |
| 0.00 | 0.71 | 0.00 | 0.61 | 19.64 | 161.64 | -49.68 | 61.42 | 0.8199 | 486.0 | 451.0 | |
| 0.00 | 6.64 | 0.00 | 5.58 | 18.03 | 162.08 | -49.24 | 63.07 | 0.8100 | 582.0 | 457.4 | |
| 0.00 | 0.71 | 0.00 | 0.59 | 17.58 | 162.06 | -49.26 | 63.60 | 0.8086 | 541.0 | 510.5 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 17.69 | 161.87 | -49.45 | 63.55 | 0.8107 | 264.0 | 300.3 | |
| 0.00 | 1.06 | 0.00 | 0.94 | 20.00 | 160.73 | -50.59 | 61.39 | 0.8291 | 267.0 | 238.4 | |
| 11.51 | 76.35 | 10.08 | 67.39 | 18.93 | 160.58 | -50.74 | 62.66 | 0.8266 | 830.4 | 68.1 | |
| 3.01 | -29.00 | 2.66 | -29.00 | 19.21 | 160.31 | -51.01 | 62.46 | 0.8299 | 365.7 | 999999 | |
| 4.78 | -29.00 | 4.22 | -29.00 | 18.73 | 160.16 | -51.16 | 63.06 | 0.8296 | 555.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
