SDO HMI 2014-04-18 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.06 | 242.91 | 40.49 | 135.53 | -11.90 | 182.36 | -26.75 | 105.59 | 0.4598 | 390.8 | 97.6 | |
|
previous
or next observation for the same group /

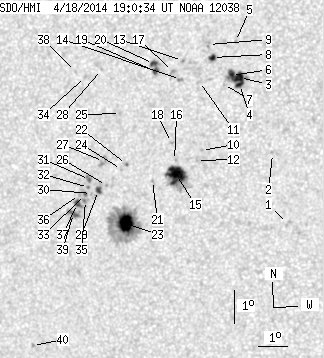

back to the solar disc SDO HMI 2014-04-18 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.15 | -13.53 | 187.01 | -22.10 | 112.21 | 0.3967 | 626.0 | 590.3 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -11.39 | 186.71 | -22.40 | 106.77 | 0.3918 | 544.0 | 472.0 | |
| 7.35 | 23.29 | 3.97 | 12.58 | -9.06 | 185.80 | -23.31 | 100.52 | 0.3992 | 1114.3 | 595.9 | |
| 3.19 | -3.00 | 1.72 | -3.00 | -9.27 | 185.78 | -23.33 | 101.04 | 0.3999 | 909.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -7.97 | 185.73 | -23.38 | 97.78 | 0.3983 | 832.0 | 704.2 | |
| 4.78 | -3.00 | 2.59 | -3.00 | -8.99 | 185.53 | -23.58 | 100.27 | 0.4032 | 866.7 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -9.25 | 185.25 | -23.86 | 100.82 | 0.4082 | 485.0 | 364.6 | |
| 2.83 | 4.34 | 1.54 | 2.36 | -8.43 | 184.94 | -24.17 | 98.72 | 0.4115 | 631.5 | 317.9 | |
| 0.00 | 2.83 | 0.00 | 1.54 | -8.03 | 184.83 | -24.28 | 97.73 | 0.4126 | 699.0 | 586.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -11.21 | 184.35 | -24.76 | 105.11 | 0.4274 | 785.0 | 569.2 | |
| 0.00 | 2.04 | 0.00 | 1.11 | -9.13 | 184.46 | -24.66 | 100.28 | 0.4204 | -262.0 | -310.4 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -11.51 | 184.15 | -24.96 | 105.69 | 0.4313 | 687.0 | 529.0 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -8.48 | 183.93 | -25.18 | 98.60 | 0.4274 | -735.0 | -696.7 | |
| 0.00 | 2.57 | 0.00 | 1.41 | -9.05 | 183.82 | -25.29 | 99.90 | 0.4300 | -850.0 | -674.7 | |
| 22.67 | 42.24 | 12.52 | 23.33 | -11.91 | 183.43 | -25.68 | 106.24 | 0.4435 | 1046.8 | 436.2 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -11.48 | 183.40 | -25.71 | 105.29 | 0.4425 | 410.0 | 389.5 | |
| 0.00 | 2.48 | 0.00 | 1.36 | -8.79 | 183.57 | -25.54 | 99.25 | 0.4335 | -798.0 | -631.2 | |
| 0.00 | 1.77 | 0.00 | 0.98 | -10.93 | 183.36 | -25.75 | 104.04 | 0.4416 | 812.0 | 645.2 | |
| 2.21 | 9.74 | 1.22 | 5.38 | -8.77 | 183.00 | -26.11 | 99.07 | 0.4423 | -928.8 | -752.1 | |
| 2.57 | -19.00 | 1.42 | -19.00 | -8.53 | 182.95 | -26.16 | 98.51 | 0.4427 | -912.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -12.05 | 182.59 | -26.52 | 106.18 | 0.4565 | 629.0 | 495.8 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -11.53 | 181.75 | -27.36 | 104.71 | 0.4675 | 333.0 | 248.6 | |
| 17.98 | 95.91 | 10.12 | 54.03 | -13.32 | 181.51 | -27.60 | 108.31 | 0.4769 | 1305.4 | 314.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -11.68 | 181.56 | -27.55 | 104.94 | 0.4707 | -718.0 | -616.2 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -9.98 | 181.70 | -27.41 | 101.40 | 0.4645 | -504.0 | -457.3 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -12.14 | 180.99 | -28.12 | 105.67 | 0.4806 | -969.0 | -842.3 | |
| 0.00 | 5.14 | 0.00 | 2.90 | -11.41 | 180.96 | -28.15 | 104.16 | 0.4788 | -503.0 | -788.9 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -8.63 | 181.16 | -27.95 | 98.39 | 0.4703 | 684.0 | 518.6 | |
| 2.57 | 6.46 | 1.45 | 3.66 | -12.28 | 180.69 | -28.42 | 105.83 | 0.4854 | -1035.4 | -737.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -12.36 | 180.43 | -28.68 | 105.89 | 0.4894 | -837.0 | -756.8 | |
| 0.71 | 3.54 | 0.40 | 2.01 | -11.93 | 180.41 | -28.70 | 105.03 | 0.4884 | -896.8 | -683.7 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -12.17 | 180.35 | -28.76 | 105.49 | 0.4900 | -886.0 | -750.8 | |
| 0.71 | 2.83 | 0.40 | 1.61 | -12.38 | 180.22 | -28.89 | 105.85 | 0.4925 | -865.0 | -604.9 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -8.82 | 180.59 | -28.52 | 98.68 | 0.4792 | 718.0 | 534.5 | |
| 0.00 | 2.48 | 0.00 | 1.41 | -12.56 | 180.20 | -28.91 | 106.20 | 0.4934 | -1004.0 | -907.2 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -12.37 | 180.01 | -29.10 | 105.75 | 0.4956 | -691.0 | -600.7 | |
| 2.66 | 4.69 | 1.52 | 2.68 | -12.64 | 179.91 | -29.20 | 106.24 | 0.4979 | -895.2 | -751.9 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -8.65 | 180.26 | -28.85 | 98.27 | 0.4840 | 684.0 | 468.9 | |
| 2.83 | 9.30 | 1.62 | 5.32 | -12.93 | 179.73 | -29.38 | 106.75 | 0.5014 | -942.2 | -709.2 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -16.88 | 177.62 | -31.49 | 113.11 | 0.5456 | 745.0 | 616.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
