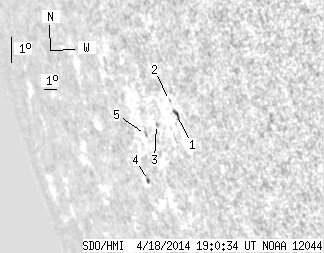

SDO HMI 2014-04-18 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.77 | 9.85 | 2.34 | 13.04 | -19.76 | 140.54 | -68.57 | 109.17 | 0.9287 | 123.4 | 82.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.15 | 3.90 | 1.42 | 4.81 | -19.29 | 142.32 | -66.79 | 108.74 | 0.9178 | 570.3 | 435.1 | |
| 0.00 | 0.89 | 0.00 | 1.10 | -18.83 | 142.12 | -66.99 | 108.23 | 0.9189 | 303.0 | 292.6 | |
| 0.00 | 1.51 | 0.00 | 2.00 | -19.45 | 140.47 | -68.64 | 108.84 | 0.9295 | -334.0 | -310.3 | |
| 0.62 | 2.13 | 0.92 | 3.15 | -21.04 | 138.10 | -71.01 | 110.46 | 0.9434 | -202.9 | -125.1 | |
| 0.00 | 1.42 | 0.00 | 1.98 | -19.67 | 139.27 | -69.84 | 109.03 | 0.9367 | 67.0 | -10.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
