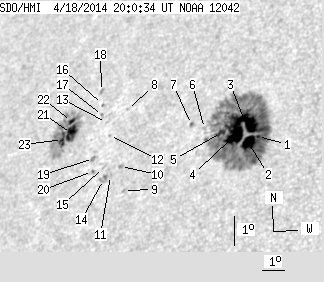

SDO HMI 2014-04-18 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.61 | 455.85 | 67.31 | 338.24 | 18.52 | 166.36 | -42.20 | 58.99 | 0.7440 | -348.0 | -180.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.51 | 352.40 | 1.07 | 253.36 | 18.22 | 168.89 | -39.66 | 57.97 | 0.7174 | -1117.4 | -313.5 | |
| 14.26 | -1.00 | 10.14 | -1.00 | 18.05 | 168.57 | -39.99 | 58.39 | 0.7198 | -1165.7 | 999999 | |
| 28.78 | -1.00 | 20.68 | -1.00 | 18.72 | 168.26 | -40.30 | 57.74 | 0.7267 | -946.6 | 999999 | |
| 21.26 | -1.00 | 15.30 | -1.00 | 18.35 | 167.94 | -40.61 | 58.39 | 0.7278 | -934.1 | 999999 | |
| 4.43 | -1.00 | 3.22 | -1.00 | 18.45 | 167.32 | -41.23 | 58.62 | 0.7347 | -491.2 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.24 | 18.64 | 166.54 | -42.01 | 58.84 | 0.7435 | 275.0 | 187.8 | |
| 0.00 | 1.95 | 0.00 | 1.45 | 18.81 | 165.93 | -42.63 | 58.97 | 0.7504 | 371.0 | 385.9 | |
| 0.00 | 0.80 | 0.00 | 0.63 | 19.51 | 162.84 | -45.72 | 59.74 | 0.7835 | 442.0 | 431.4 | |
| 0.00 | 1.68 | 0.00 | 1.29 | 16.82 | 163.55 | -45.01 | 62.59 | 0.7648 | 521.0 | 461.1 | |
| 0.00 | 1.77 | 0.00 | 1.37 | 17.63 | 163.16 | -45.39 | 61.81 | 0.7721 | 710.0 | 489.7 | |
| 0.00 | 1.68 | 0.00 | 1.31 | 17.36 | 162.80 | -45.76 | 62.30 | 0.7745 | 516.0 | 419.5 | |
| 0.00 | 1.06 | 0.00 | 0.85 | 18.70 | 162.30 | -46.26 | 60.96 | 0.7850 | 526.0 | 424.0 | |
| 0.00 | 0.71 | 0.00 | 0.57 | 19.14 | 162.00 | -46.56 | 60.58 | 0.7897 | 436.0 | 354.4 | |
| 0.00 | 5.05 | 0.00 | 3.95 | 17.25 | 162.51 | -46.04 | 62.57 | 0.7768 | 721.0 | 574.9 | |
| 0.00 | 1.42 | 0.00 | 1.12 | 17.65 | 162.38 | -46.17 | 62.15 | 0.7798 | 447.0 | 489.2 | |
| 0.00 | 1.15 | 0.00 | 0.94 | 19.77 | 161.58 | -46.98 | 60.06 | 0.7963 | 543.0 | 462.5 | |
| 0.00 | 1.33 | 0.00 | 1.08 | 19.39 | 161.72 | -46.84 | 60.42 | 0.7934 | 346.0 | 440.5 | |
| 0.00 | 2.04 | 0.00 | 1.67 | 20.21 | 161.36 | -47.20 | 59.65 | 0.8001 | 430.0 | 378.5 | |
| 0.00 | 2.75 | 0.00 | 2.19 | 17.98 | 161.81 | -46.75 | 62.03 | 0.7866 | 528.0 | 464.9 | |
| 0.00 | 1.33 | 0.00 | 1.05 | 17.55 | 161.91 | -46.65 | 62.49 | 0.7839 | 537.0 | 431.4 | |
| 12.13 | 77.05 | 10.04 | 64.17 | 18.90 | 160.44 | -48.12 | 61.58 | 0.8031 | 843.8 | 117.6 | |
| 2.57 | -21.00 | 2.14 | -21.00 | 19.30 | 160.28 | -48.27 | 61.19 | 0.8061 | 486.6 | 999999 | |
| 5.67 | -21.00 | 4.72 | -21.00 | 18.73 | 160.07 | -48.48 | 61.94 | 0.8058 | 626.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
