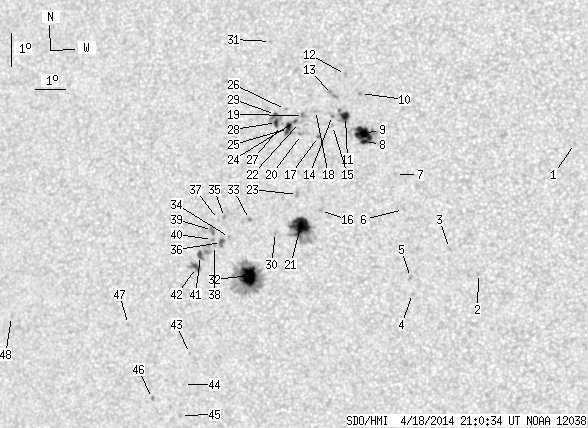

SDO HMI 2014-04-18 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.75 | 289.45 | 44.75 | 159.33 | -11.53 | 182.81 | -25.19 | 105.45 | 0.4353 | 408.5 | 109.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.36 | -9.64 | 192.58 | -15.42 | 106.68 | 0.2749 | -742.0 | -544.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -13.49 | 189.25 | -18.76 | 115.14 | 0.3469 | 791.0 | 640.6 | |
| 0.00 | 1.95 | 0.00 | 1.03 | -12.70 | 188.36 | -19.64 | 112.17 | 0.3556 | 893.0 | 643.8 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -14.03 | 187.02 | -20.98 | 114.35 | 0.3829 | 707.0 | 597.7 | |
| 0.00 | 2.13 | 0.00 | 1.14 | -13.54 | 187.00 | -21.00 | 113.13 | 0.3805 | 777.0 | 656.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.47 | 186.95 | -21.05 | 107.81 | 0.3714 | 801.0 | 653.5 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -10.40 | 186.77 | -21.23 | 104.89 | 0.3702 | 835.0 | 523.3 | |
| 3.19 | 31.00 | 1.71 | 16.60 | -9.37 | 185.82 | -22.18 | 101.73 | 0.3821 | 949.2 | 585.5 | |
| 15.23 | -8.00 | 8.16 | -8.00 | -9.13 | 185.81 | -22.20 | 101.10 | 0.3818 | 1090.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -7.92 | 185.78 | -22.22 | 97.93 | 0.3798 | 879.0 | 730.3 | |
| 5.05 | 11.43 | 2.71 | 6.14 | -8.60 | 185.25 | -22.76 | 99.53 | 0.3895 | 811.0 | 178.1 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -7.33 | 185.32 | -22.68 | 96.29 | 0.3864 | 786.0 | 649.4 | |
| 0.00 | 4.07 | 0.00 | 2.19 | -7.92 | 184.86 | -23.14 | 97.70 | 0.3945 | 571.0 | 533.1 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -8.55 | 184.82 | -23.18 | 99.29 | 0.3962 | 241.0 | 272.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -8.85 | 184.80 | -23.20 | 100.04 | 0.3970 | 408.0 | 348.7 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -11.40 | 184.20 | -23.81 | 106.02 | 0.4134 | 882.0 | 721.4 | |
| 0.44 | 1.68 | 0.24 | 0.91 | -9.17 | 184.31 | -23.69 | 100.67 | 0.4054 | -768.2 | -541.4 | |
| 0.00 | 2.66 | 0.00 | 1.44 | -8.38 | 184.27 | -23.74 | 98.72 | 0.4046 | -174.0 | -130.8 | |
| 0.00 | 2.92 | 0.00 | 1.59 | -8.51 | 183.86 | -24.14 | 98.94 | 0.4113 | -591.0 | -532.1 | |
| 0.00 | 2.30 | 0.00 | 1.25 | -9.08 | 183.75 | -24.25 | 100.29 | 0.4140 | -615.0 | -372.0 | |
| 22.50 | 50.84 | 12.31 | 27.81 | -11.86 | 183.48 | -24.52 | 106.71 | 0.4259 | 1084.3 | 389.5 | |
| 0.00 | 2.48 | 0.00 | 1.35 | -8.72 | 183.71 | -24.29 | 99.40 | 0.4139 | -431.0 | -402.5 | |
| 0.00 | 2.39 | 0.00 | 1.31 | -10.89 | 183.47 | -24.53 | 104.46 | 0.4229 | 805.0 | 579.7 | |
| 0.80 | 11.07 | 0.43 | 6.04 | -8.69 | 183.58 | -24.42 | 99.28 | 0.4159 | -834.0 | -719.8 | |
| 4.69 | -24.00 | 2.56 | -24.00 | -8.89 | 183.33 | -24.67 | 99.70 | 0.4202 | -1064.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -8.31 | 183.27 | -24.73 | 98.32 | 0.4202 | -803.0 | -530.4 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -8.79 | 183.10 | -24.90 | 99.40 | 0.4236 | -620.0 | -527.0 | |
| 2.21 | 11.87 | 1.21 | 6.49 | -8.69 | 182.94 | -25.06 | 99.14 | 0.4259 | -916.9 | -671.7 | |
| 0.89 | -28.00 | 0.48 | -28.00 | -8.45 | 182.92 | -25.08 | 98.56 | 0.4258 | -875.6 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.12 | -12.01 | 182.62 | -25.39 | 106.61 | 0.4394 | 677.0 | 402.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -6.25 | 182.89 | -25.11 | 93.36 | 0.4243 | 707.0 | 514.3 | |
| 19.93 | 89.81 | 11.10 | 50.09 | -13.27 | 181.58 | -26.42 | 108.83 | 0.4594 | 1275.7 | 339.6 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -11.58 | 181.77 | -26.23 | 105.28 | 0.4507 | 323.0 | 237.1 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -12.09 | 181.03 | -26.98 | 106.06 | 0.4635 | -767.0 | -653.3 | |
| 0.00 | 1.68 | 0.00 | 0.94 | -11.48 | 180.92 | -27.08 | 104.72 | 0.4632 | -1118.0 | -924.5 | |
| 1.77 | 4.52 | 0.99 | 2.53 | -12.23 | 180.74 | -27.27 | 106.23 | 0.4683 | -1095.4 | -874.7 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -11.53 | 180.71 | -27.29 | 104.75 | 0.4665 | -563.0 | -470.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -12.31 | 180.48 | -27.52 | 106.29 | 0.4722 | -812.0 | -730.4 | |
| 0.00 | 3.99 | 0.00 | 2.24 | -11.86 | 180.47 | -27.54 | 105.33 | 0.4711 | -953.0 | -754.2 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -12.13 | 180.43 | -27.57 | 105.89 | 0.4724 | -902.0 | -667.6 | |
| 2.30 | 11.69 | 1.30 | 6.59 | -12.59 | 179.96 | -28.04 | 106.64 | 0.4808 | -887.1 | -788.3 | |
| 2.75 | 7.62 | 1.55 | 4.31 | -12.95 | 179.78 | -28.23 | 107.29 | 0.4847 | -920.4 | -624.1 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -15.55 | 179.17 | -28.84 | 112.10 | 0.5035 | 655.0 | 451.3 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -16.49 | 178.80 | -29.20 | 113.66 | 0.5128 | 532.0 | 459.6 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -17.43 | 178.53 | -29.48 | 115.23 | 0.5210 | 593.0 | 456.7 | |
| 0.00 | 1.51 | 0.00 | 0.88 | -16.87 | 177.61 | -30.39 | 113.68 | 0.5308 | 717.0 | 589.5 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -14.57 | 177.12 | -30.88 | 109.24 | 0.5282 | 615.0 | 462.2 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -14.11 | 172.86 | -35.15 | 106.85 | 0.5856 | -587.0 | -458.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
