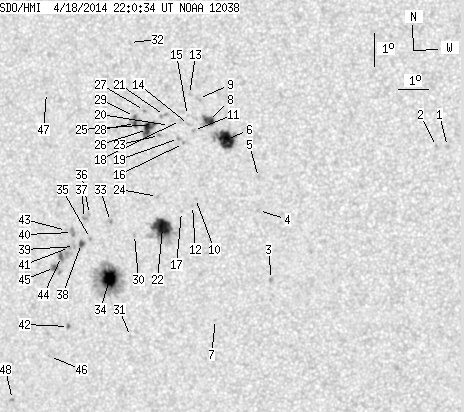

SDO HMI 2014-04-18 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.45 | 274.94 | 45.45 | 150.51 | -11.41 | 182.92 | -24.53 | 105.49 | 0.4250 | 347.2 | 99.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.00 | -9.66 | 192.94 | -14.51 | 107.64 | 0.2603 | -794.0 | -581.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.65 | 192.59 | -14.86 | 107.26 | 0.2659 | -773.0 | -626.0 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -13.52 | 187.01 | -20.44 | 113.59 | 0.3721 | 749.0 | 684.1 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -11.42 | 186.76 | -20.69 | 107.93 | 0.3656 | 712.0 | 538.9 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -10.42 | 186.83 | -20.62 | 105.30 | 0.3606 | 757.0 | 521.6 | |
| 18.51 | 32.69 | 9.88 | 17.44 | -9.24 | 185.87 | -21.58 | 101.63 | 0.3723 | 1101.6 | 627.7 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -14.67 | 185.03 | -22.42 | 114.64 | 0.4077 | 552.0 | 456.9 | |
| 6.29 | 10.72 | 3.37 | 5.74 | -8.65 | 185.31 | -22.14 | 99.86 | 0.3798 | 939.7 | 341.9 | |
| 0.00 | 2.39 | 0.00 | 1.28 | -7.97 | 185.03 | -22.42 | 98.01 | 0.3831 | 611.0 | 499.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -10.98 | 184.71 | -22.74 | 105.57 | 0.3956 | 771.0 | 613.0 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -8.93 | 184.80 | -22.65 | 100.42 | 0.3885 | 724.0 | 548.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -11.19 | 184.60 | -22.85 | 106.02 | 0.3981 | 624.0 | 556.6 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -7.84 | 184.74 | -22.71 | 97.61 | 0.3876 | 527.0 | 366.4 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -8.74 | 184.65 | -22.80 | 99.90 | 0.3905 | 328.0 | 214.1 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -8.47 | 184.63 | -22.82 | 99.20 | 0.3902 | 460.0 | 330.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -9.31 | 184.44 | -23.01 | 101.26 | 0.3950 | -717.0 | -602.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -11.36 | 184.21 | -23.24 | 106.22 | 0.4046 | 779.0 | 655.1 | |
| 0.00 | 2.21 | 0.00 | 1.19 | -8.61 | 184.39 | -23.06 | 99.49 | 0.3943 | -206.0 | -98.2 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -9.15 | 184.29 | -23.16 | 100.81 | 0.3970 | -476.0 | -383.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.75 | 184.02 | -23.43 | 99.72 | 0.4005 | -646.0 | -493.3 | |
| 0.00 | 3.63 | 0.00 | 1.96 | -8.44 | 183.87 | -23.58 | 98.92 | 0.4022 | -692.0 | -631.0 | |
| 22.68 | 45.09 | 12.35 | 24.56 | -11.82 | 183.53 | -23.92 | 106.95 | 0.4166 | 1090.9 | 362.8 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -9.04 | 183.66 | -23.79 | 100.33 | 0.4066 | -645.0 | -455.6 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -10.88 | 183.45 | -24.00 | 104.68 | 0.4146 | 873.0 | 682.0 | |
| 1.15 | 13.29 | 0.62 | 7.22 | -8.70 | 183.49 | -23.96 | 99.45 | 0.4087 | -1077.2 | -766.9 | |
| 7.80 | -25.00 | 4.23 | -25.00 | -8.84 | 183.28 | -24.17 | 99.74 | 0.4123 | -1093.1 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -8.27 | 183.22 | -24.23 | 98.33 | 0.4122 | -883.0 | -755.4 | |
| 2.48 | 11.96 | 1.35 | 6.52 | -8.65 | 182.89 | -24.56 | 99.16 | 0.4180 | -881.0 | -647.8 | |
| 0.53 | -28.00 | 0.29 | -28.00 | -8.43 | 182.87 | -24.58 | 98.65 | 0.4179 | -844.3 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -11.99 | 182.57 | -24.88 | 106.84 | 0.4318 | 574.0 | 493.9 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -15.08 | 182.08 | -25.37 | 113.30 | 0.4523 | 648.0 | 527.4 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -6.20 | 182.84 | -24.61 | 93.28 | 0.4165 | 594.0 | 484.2 | |
| 0.00 | 2.21 | 0.00 | 1.22 | -11.57 | 181.80 | -25.65 | 105.52 | 0.4420 | 162.0 | -7.1 | |
| 17.36 | 82.74 | 9.63 | 45.91 | -13.29 | 181.58 | -25.87 | 109.18 | 0.4515 | 1294.0 | 399.3 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -12.05 | 181.06 | -26.39 | 106.25 | 0.4546 | -796.0 | -670.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -11.33 | 181.10 | -26.35 | 104.69 | 0.4517 | -800.0 | -529.6 | |
| 0.00 | 1.95 | 0.00 | 1.08 | -11.44 | 180.92 | -26.53 | 104.86 | 0.4548 | -1029.0 | -845.1 | |
| 1.86 | 3.72 | 1.04 | 2.07 | -12.19 | 180.74 | -26.71 | 106.40 | 0.4599 | -1067.9 | -824.5 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -12.27 | 180.48 | -26.97 | 106.45 | 0.4639 | -833.0 | -681.2 | |
| 0.00 | 3.99 | 0.00 | 2.23 | -11.85 | 180.46 | -26.99 | 105.54 | 0.4629 | -859.0 | -742.6 | |
| 0.00 | 1.68 | 0.00 | 0.94 | -12.30 | 180.31 | -27.14 | 106.42 | 0.4666 | -976.0 | -767.0 | |
| 0.62 | 1.42 | 0.35 | 0.80 | -14.69 | 179.97 | -27.48 | 111.18 | 0.4806 | -804.6 | -659.6 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -11.78 | 180.26 | -27.19 | 105.31 | 0.4657 | -553.0 | -500.8 | |
| 2.13 | 19.22 | 1.19 | 10.80 | -12.56 | 180.00 | -27.45 | 106.83 | 0.4720 | -892.2 | -692.1 | |
| 2.04 | -44.00 | 1.15 | -44.00 | -12.88 | 179.72 | -27.73 | 107.37 | 0.4772 | -896.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -15.58 | 179.17 | -28.28 | 112.46 | 0.4958 | 626.0 | 509.4 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -7.59 | 179.95 | -27.50 | 96.23 | 0.4623 | 698.0 | 584.9 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -16.83 | 177.64 | -29.81 | 113.94 | 0.5227 | 756.0 | 608.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
