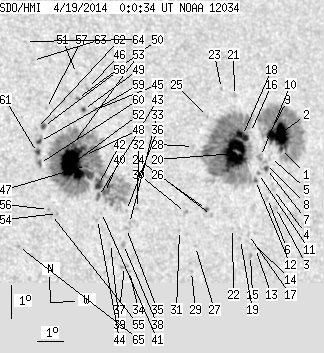

SDO HMI 2014-04-19 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.94 | 849.50 | 94.46 | 550.94 | 4.44 | 245.18 | 38.83 | 283.46 | 0.6439 | -63.5 | -69.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 170.40 | 0.18 | 117.95 | 4.90 | 249.27 | 42.93 | 282.68 | 0.6978 | -764.0 | -155.6 | |
| 27.56 | -1.00 | 19.01 | -1.00 | 5.32 | 249.18 | 42.84 | 283.30 | 0.6980 | -794.8 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.21 | 3.08 | 248.90 | 42.56 | 280.21 | 0.6885 | -566.0 | -404.4 | |
| 0.00 | 1.33 | 0.00 | 0.91 | 3.62 | 248.85 | 42.50 | 281.00 | 0.6892 | -459.0 | -367.1 | |
| 0.00 | 2.04 | 0.00 | 1.39 | 4.59 | 248.79 | 42.45 | 282.40 | 0.6911 | -245.0 | -289.1 | |
| 0.00 | 1.15 | 0.00 | 0.78 | 3.33 | 248.59 | 42.24 | 280.66 | 0.6852 | -558.0 | -442.8 | |
| 1.51 | 2.75 | 1.02 | 1.87 | 4.25 | 248.60 | 42.26 | 281.96 | 0.6878 | -526.7 | -428.1 | |
| 0.00 | 2.22 | 0.00 | 1.51 | 4.40 | 248.57 | 42.23 | 282.19 | 0.6879 | -317.0 | -431.7 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 5.04 | 248.58 | 42.24 | 283.10 | 0.6898 | -631.0 | -597.1 | |
| 0.00 | 3.81 | 0.00 | 2.59 | 4.60 | 248.38 | 42.04 | 282.54 | 0.6861 | -799.0 | -577.1 | |
| 0.00 | 1.42 | 0.00 | 0.96 | 4.07 | 248.26 | 41.92 | 281.82 | 0.6832 | -628.0 | -556.1 | |
| 0.71 | 263.26 | 0.48 | 175.43 | 3.85 | 248.13 | 41.78 | 281.55 | 0.6809 | -633.9 | -545.3 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 1.78 | 248.03 | 41.69 | 278.56 | 0.6745 | -447.0 | -357.4 | |
| 0.00 | 0.53 | 0.00 | 0.36 | 1.92 | 247.92 | 41.57 | 278.80 | 0.6734 | -527.0 | -457.8 | |
| 0.00 | 1.68 | 0.00 | 1.12 | 1.55 | 247.82 | 41.48 | 278.28 | 0.6714 | -649.0 | -565.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 5.31 | 248.03 | 41.69 | 283.67 | 0.6838 | -280.0 | -352.0 | |
| 0.00 | 1.33 | 0.00 | 0.89 | 2.19 | 247.76 | 41.42 | 279.23 | 0.6720 | -617.0 | -544.2 | |
| 8.15 | -12.00 | 5.49 | -12.00 | 5.20 | 247.70 | 41.35 | 283.62 | 0.6794 | -678.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 2.02 | 247.44 | 41.09 | 279.06 | 0.6675 | -626.0 | -537.6 | |
| 41.29 | -12.00 | 27.59 | -12.00 | 4.63 | 247.33 | 40.99 | 282.92 | 0.6731 | -940.3 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.31 | 6.41 | 247.49 | 41.14 | 285.43 | 0.6806 | -505.0 | -395.3 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 2.33 | 247.13 | 40.78 | 279.62 | 0.6642 | -522.0 | -432.2 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 6.60 | 246.98 | 40.64 | 285.89 | 0.6750 | 61.0 | -62.8 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 2.68 | 246.31 | 39.96 | 280.37 | 0.6545 | -583.0 | -540.8 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 5.70 | 246.34 | 40.00 | 284.84 | 0.6639 | -587.0 | -492.0 | |
| 0.71 | 2.13 | 0.46 | 1.39 | 2.85 | 246.12 | 39.77 | 280.69 | 0.6525 | -641.0 | -531.4 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 1.70 | 245.65 | 39.30 | 279.07 | 0.6434 | -629.0 | -575.9 | |
| 0.00 | 1.51 | 0.00 | 0.98 | 4.74 | 245.71 | 39.37 | 283.67 | 0.6529 | -750.0 | -643.2 | |
| 0.00 | 1.24 | 0.00 | 0.80 | 0.93 | 245.47 | 39.13 | 277.94 | 0.6394 | -592.0 | -539.7 | |
| 0.00 | 1.68 | 0.00 | 1.08 | 2.71 | 245.29 | 38.95 | 280.73 | 0.6413 | 572.0 | 363.4 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 2.15 | 245.04 | 38.69 | 279.95 | 0.6365 | -706.0 | -592.2 | |
| 0.00 | 1.15 | 0.00 | 0.72 | 2.72 | 243.45 | 37.10 | 281.37 | 0.6169 | 449.0 | 369.0 | |
| 0.00 | 1.15 | 0.00 | 0.72 | 2.25 | 243.13 | 36.79 | 280.72 | 0.6112 | 492.0 | 425.8 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 0.79 | 243.10 | 36.75 | 278.37 | 0.6070 | 474.0 | 392.1 | |
| 0.00 | 2.04 | 0.00 | 1.27 | 2.09 | 243.01 | 36.67 | 280.50 | 0.6092 | 705.0 | 517.0 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 2.64 | 243.03 | 36.69 | 281.38 | 0.6110 | 308.0 | 292.1 | |
| 0.00 | 2.92 | 0.00 | 1.82 | 0.94 | 242.91 | 36.57 | 278.65 | 0.6048 | 539.0 | 531.1 | |
| 0.00 | 2.92 | 0.00 | 1.82 | 1.60 | 242.89 | 36.54 | 279.74 | 0.6061 | 614.0 | 514.2 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 1.60 | 242.40 | 36.06 | 279.91 | 0.5995 | 708.0 | 653.5 | |
| 1.06 | 331.04 | 0.66 | 203.50 | 3.14 | 242.23 | 35.88 | 282.48 | 0.6016 | 673.3 | 340.7 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 2.53 | 242.09 | 35.75 | 281.53 | 0.5979 | 542.0 | 483.0 | |
| 4.96 | -40.00 | 3.07 | -40.00 | 3.38 | 242.01 | 35.67 | 282.94 | 0.5995 | 711.5 | 999999 | |
| 0.00 | 3.28 | 0.00 | 2.02 | 3.01 | 242.00 | 35.65 | 282.35 | 0.5981 | 758.0 | 672.3 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 2.31 | 241.93 | 35.59 | 281.22 | 0.5951 | 531.0 | 477.3 | |
| 0.00 | 1.51 | 0.00 | 0.94 | 5.67 | 242.04 | 35.69 | 286.61 | 0.6081 | 597.0 | 486.1 | |
| 0.00 | 1.33 | 0.00 | 0.83 | 6.30 | 241.79 | 35.44 | 287.73 | 0.6073 | 520.0 | 411.6 | |
| 2.04 | -40.00 | 1.25 | -40.00 | 3.93 | 241.59 | 35.25 | 284.02 | 0.5957 | 528.4 | 999999 | |
| 1.15 | -40.00 | 0.71 | -40.00 | 4.23 | 241.54 | 35.19 | 284.54 | 0.5959 | 319.2 | 999999 | |
| 0.97 | 1.86 | 0.60 | 1.15 | 5.64 | 241.59 | 35.24 | 286.78 | 0.6020 | 659.8 | 555.7 | |
| 0.00 | 1.51 | 0.00 | 0.93 | 5.97 | 241.39 | 35.04 | 287.40 | 0.6007 | 694.0 | 572.7 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 6.74 | 241.41 | 35.07 | 288.61 | 0.6043 | 476.0 | 413.8 | |
| 49.09 | -40.00 | 30.02 | -40.00 | 3.97 | 241.08 | 34.73 | 284.29 | 0.5888 | 992.4 | 999999 | |
| 1.15 | -40.00 | 0.71 | -40.00 | 4.55 | 241.11 | 34.76 | 285.23 | 0.5913 | 578.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 2.41 | 240.47 | 34.12 | 281.94 | 0.5750 | 741.0 | 642.4 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 2.37 | 240.25 | 33.90 | 281.96 | 0.5718 | 751.0 | 608.2 | |
| 0.00 | 1.06 | 0.00 | 0.64 | 2.52 | 240.14 | 33.80 | 282.25 | 0.5708 | 724.0 | 644.6 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 5.60 | 240.22 | 33.88 | 287.39 | 0.5835 | 555.0 | 458.9 | |
| 1.42 | 2.75 | 0.86 | 1.67 | 5.04 | 240.08 | 33.73 | 286.54 | 0.5792 | 795.4 | 653.0 | |
| 1.42 | 3.90 | 0.86 | 2.36 | 4.58 | 239.90 | 33.56 | 285.84 | 0.5750 | 872.0 | 713.1 | |
| 0.89 | 8.42 | 0.53 | 5.08 | 3.90 | 239.87 | 33.52 | 284.73 | 0.5719 | 929.5 | 753.0 | |
| 1.59 | -60.00 | 0.96 | -60.00 | 4.24 | 239.81 | 33.47 | 285.31 | 0.5724 | 934.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 4.97 | 239.82 | 33.47 | 286.54 | 0.5754 | 671.0 | 560.8 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 7.06 | 239.82 | 33.48 | 289.97 | 0.5847 | 353.0 | 359.5 | |
| 0.00 | 0.80 | 0.00 | 0.49 | 7.63 | 239.62 | 33.27 | 291.02 | 0.5847 | 591.0 | 415.6 | |
| 0.00 | 1.42 | 0.00 | 0.84 | 1.34 | 239.03 | 32.69 | 280.62 | 0.5514 | 776.0 | 531.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
