SDO HMI 2014-04-19 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.25 | 754.68 | 15.28 | 396.48 | -15.11 | 222.14 | 15.80 | 235.59 | 0.3172 | -88.5 | 173.4 | |
|
previous
or next observation for the same group /

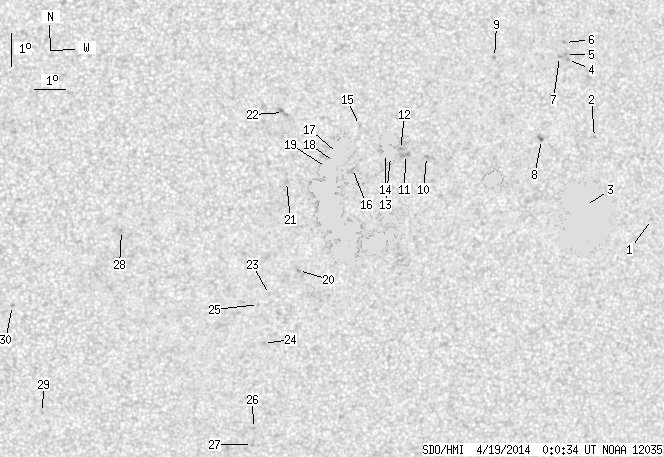

back to the solar disc SDO HMI 2014-04-19 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.44 | -16.21 | 229.26 | 22.91 | 242.33 | 0.4239 | -705.0 | -524.3 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -13.77 | 227.08 | 20.74 | 246.04 | 0.3780 | -592.0 | -493.1 | |
| 9.75 | 291.70 | 5.24 | 157.04 | -15.85 | 226.99 | 20.64 | 240.92 | 0.3897 | 1222.8 | 382.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -11.43 | 226.01 | 19.66 | 251.26 | 0.3497 | 778.0 | 652.2 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -11.28 | 225.93 | 19.58 | 251.62 | 0.3479 | 836.0 | 740.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.92 | 225.87 | 19.53 | 252.59 | 0.3455 | 752.0 | 644.5 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -11.35 | 225.74 | 19.39 | 251.29 | 0.3452 | 888.0 | 672.6 | |
| 0.44 | 2.39 | 0.23 | 1.27 | -13.88 | 225.34 | 19.00 | 244.04 | 0.3531 | -729.8 | -538.1 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.44 | 223.64 | 17.30 | 249.19 | 0.3131 | 903.0 | 808.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -14.50 | 221.65 | 15.31 | 237.52 | 0.3044 | 809.0 | 659.1 | |
| 0.00 | 3.81 | 0.00 | 1.97 | -14.45 | 220.97 | 14.63 | 236.54 | 0.2945 | 822.0 | 790.1 | |
| 0.00 | 1.68 | 0.00 | 0.87 | -14.30 | 220.80 | 14.46 | 236.69 | 0.2908 | 976.0 | 793.2 | |
| 2.22 | 40.41 | 1.15 | 20.87 | -14.52 | 220.50 | 14.15 | 235.50 | 0.2885 | 1077.1 | 544.3 | |
| 2.13 | -13.00 | 1.10 | -13.00 | -14.43 | 220.33 | 13.99 | 235.46 | 0.2854 | 934.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -13.60 | 219.45 | 13.11 | 236.41 | 0.2658 | 533.0 | 522.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -14.91 | 219.31 | 12.96 | 232.06 | 0.2760 | -44.0 | -38.1 | |
| 10.19 | 387.49 | 5.23 | 200.33 | -14.46 | 218.80 | 12.46 | 232.36 | 0.2649 | -1150.9 | 0.1 | |
| 2.66 | -17.00 | 1.37 | -17.00 | -14.71 | 218.69 | 12.34 | 231.36 | 0.2659 | -1105.0 | 999999 | |
| 1.86 | -17.00 | 0.96 | -17.00 | -14.90 | 218.47 | 12.13 | 230.33 | 0.2650 | -1181.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -18.07 | 217.77 | 11.42 | 220.24 | 0.2928 | -976.0 | -844.5 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -15.34 | 217.23 | 10.88 | 226.01 | 0.2542 | -790.0 | -643.9 | |
| 0.00 | 4.43 | 0.00 | 2.25 | -13.24 | 217.03 | 10.69 | 232.30 | 0.2292 | -719.0 | -741.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -18.83 | 216.88 | 10.54 | 216.36 | 0.2932 | -758.0 | -603.2 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -20.35 | 216.78 | 10.44 | 213.07 | 0.3127 | -698.0 | -527.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -19.14 | 216.54 | 10.20 | 214.84 | 0.2941 | -656.0 | -452.4 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -23.02 | 216.65 | 10.30 | 208.31 | 0.3485 | -743.0 | -608.5 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -23.53 | 216.65 | 10.31 | 207.59 | 0.3557 | -675.0 | -604.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -16.91 | 212.06 | 5.72 | 205.34 | 0.2238 | -867.0 | -678.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -22.58 | 209.68 | 3.34 | 190.26 | 0.3031 | -789.0 | -689.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -19.24 | 208.65 | 2.31 | 188.98 | 0.2448 | -869.0 | -702.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
