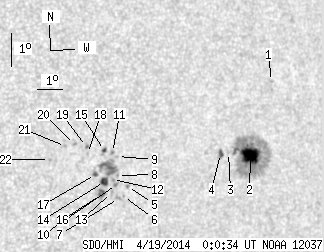

SDO HMI 2014-04-19 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.81 | 178.48 | 18.47 | 117.62 | -9.19 | 247.67 | 41.32 | 262.05 | 0.6598 | 333.3 | 205.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.60 | -6.62 | 250.04 | 43.69 | 265.98 | 0.6902 | 681.0 | 612.3 | |
| 20.11 | 115.64 | 13.60 | 78.26 | -8.90 | 249.44 | 43.10 | 262.64 | 0.6830 | 848.8 | 301.5 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -8.86 | 248.53 | 42.18 | 262.65 | 0.6713 | 708.0 | 556.6 | |
| 1.77 | 3.72 | 1.18 | 2.47 | -8.91 | 248.20 | 41.86 | 262.56 | 0.6671 | 729.2 | 604.8 | |
| 0.00 | 1.59 | 0.00 | 1.01 | -10.12 | 244.65 | 38.31 | 260.39 | 0.6212 | -582.0 | -500.6 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -10.43 | 244.54 | 38.19 | 259.87 | 0.6200 | -385.0 | -363.4 | |
| 0.00 | 1.95 | 0.00 | 1.22 | -10.50 | 244.35 | 38.01 | 259.73 | 0.6176 | -726.0 | -625.5 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -9.81 | 244.22 | 37.87 | 260.84 | 0.6150 | -379.0 | -286.5 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -9.24 | 244.14 | 37.80 | 261.76 | 0.6135 | 646.0 | 508.2 | |
| 0.00 | 2.04 | 0.00 | 1.28 | -10.08 | 244.22 | 37.87 | 260.39 | 0.6153 | -684.0 | -625.5 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -9.13 | 243.94 | 37.59 | 261.92 | 0.6106 | 689.0 | 563.4 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -9.94 | 244.04 | 37.70 | 260.60 | 0.6127 | -463.0 | -496.8 | |
| 0.00 | 2.22 | 0.00 | 1.39 | -10.33 | 244.06 | 37.71 | 259.96 | 0.6134 | -619.0 | -538.3 | |
| 3.99 | 25.52 | 2.48 | 15.91 | -10.02 | 243.74 | 37.40 | 260.44 | 0.6088 | -750.5 | 177.2 | |
| 0.97 | 3.19 | 0.61 | 1.98 | -9.08 | 243.62 | 37.28 | 261.97 | 0.6063 | 757.0 | 544.2 | |
| 0.00 | 6.03 | 0.00 | 3.75 | -10.41 | 243.68 | 37.34 | 259.78 | 0.6084 | -773.0 | -738.4 | |
| 0.97 | 2.22 | 0.60 | 1.37 | -9.82 | 243.37 | 37.03 | 260.71 | 0.6035 | -744.2 | -664.4 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -9.21 | 242.99 | 36.64 | 261.70 | 0.5976 | 592.0 | 566.5 | |
| 0.00 | 1.59 | 0.00 | 0.98 | -9.00 | 242.93 | 36.58 | 262.04 | 0.5966 | 583.0 | 581.4 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -8.96 | 242.47 | 36.12 | 262.06 | 0.5902 | 733.0 | 634.6 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -9.04 | 242.14 | 35.79 | 261.89 | 0.5856 | 764.0 | 611.7 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -9.46 | 241.58 | 35.24 | 261.10 | 0.5783 | 481.0 | 458.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
