SDO HMI 2014-04-19 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.47 | 0.00 | 5.36 | 16.02 | 186.88 | -18.91 | 41.03 | 0.4798 | -112.2 | -258.5 | |
|
previous
or next observation for the same group /

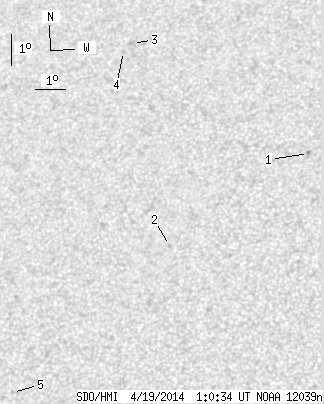

back to the solar disc SDO HMI 2014-04-19 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 1.26 | 15.22 | 191.73 | -14.06 | 33.97 | 0.4214 | -876.0 | -613.4 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 12.41 | 187.44 | -18.36 | 45.73 | 0.4313 | 813.0 | 641.9 | |
| 0.00 | 3.54 | 0.00 | 2.06 | 18.99 | 185.56 | -20.23 | 38.84 | 0.5234 | -442.0 | -427.7 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 18.73 | 185.29 | -20.50 | 39.54 | 0.5232 | -697.0 | -625.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 7.99 | 182.59 | -23.20 | 60.29 | 0.4511 | 641.0 | 529.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
