SDO HMI 2014-04-19 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.24 | 302.16 | 0.64 | 157.59 | -15.99 | 218.36 | 14.22 | 231.29 | 0.3036 | -166.8 | -73.8 | |
|
previous
or next observation for the same group /

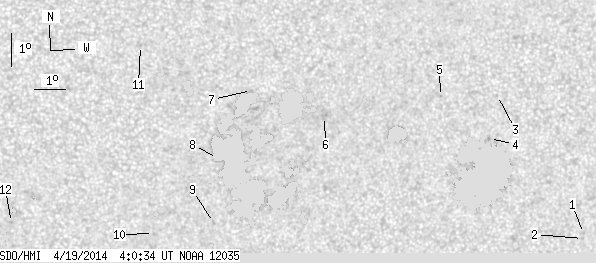

back to the solar disc SDO HMI 2014-04-19 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.60 | -17.94 | 230.70 | 26.56 | 241.79 | 0.4847 | 746.0 | 610.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.09 | 230.69 | 26.55 | 241.49 | 0.4855 | 677.0 | 534.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -13.83 | 227.19 | 23.05 | 247.75 | 0.4125 | -660.0 | -392.7 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -15.14 | 227.07 | 22.92 | 244.65 | 0.4178 | 799.0 | 622.9 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.92 | 225.29 | 21.15 | 245.98 | 0.3851 | -579.0 | -432.7 | |
| 0.00 | 3.81 | 0.00 | 2.00 | -14.64 | 221.54 | 17.39 | 240.08 | 0.3352 | 866.0 | 723.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -13.90 | 219.12 | 14.98 | 238.66 | 0.2950 | -136.0 | -167.2 | |
| 1.24 | 287.96 | 0.64 | 150.06 | -16.00 | 218.17 | 14.03 | 231.03 | 0.3010 | -916.1 | -81.8 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -17.97 | 218.19 | 14.04 | 226.11 | 0.3217 | -714.0 | -539.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -18.34 | 216.26 | 12.12 | 221.18 | 0.3040 | -810.0 | -644.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -12.60 | 215.52 | 11.38 | 236.18 | 0.2328 | -721.0 | -512.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -18.07 | 211.68 | 7.54 | 209.33 | 0.2557 | -823.0 | -644.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
