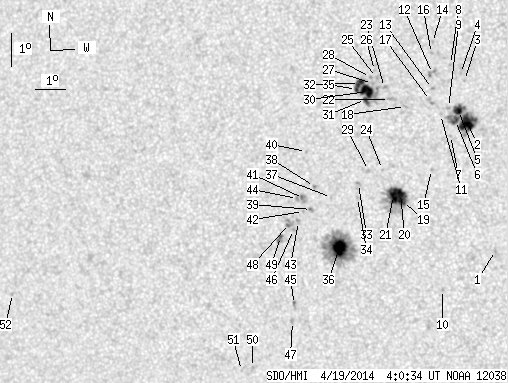

SDO HMI 2014-04-19 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.58 | 299.79 | 45.37 | 160.08 | -11.25 | 183.01 | -21.14 | 107.02 | 0.3725 | 343.6 | 136.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 0.88 | -13.50 | 186.80 | -17.34 | 116.87 | 0.3263 | 773.0 | 512.6 | |
| 17.29 | 51.16 | 9.02 | 26.72 | -9.60 | 186.16 | -17.98 | 104.65 | 0.3160 | 1193.9 | 647.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -8.33 | 186.13 | -18.01 | 100.64 | 0.3127 | 802.0 | 579.2 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -8.12 | 186.01 | -18.13 | 99.91 | 0.3141 | 838.0 | 670.5 | |
| 5.59 | -2.00 | 2.92 | -2.00 | -9.23 | 185.89 | -18.25 | 103.33 | 0.3191 | 1041.5 | 999999 | |
| 3.46 | -2.00 | 1.81 | -2.00 | -9.53 | 185.78 | -18.36 | 104.18 | 0.3219 | 880.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -9.97 | 185.59 | -18.55 | 105.41 | 0.3265 | 644.0 | 457.2 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -7.83 | 185.71 | -18.44 | 98.90 | 0.3185 | 829.0 | 707.9 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -9.13 | 185.58 | -18.57 | 102.84 | 0.3239 | 670.0 | 511.4 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.63 | 184.98 | -19.17 | 117.77 | 0.3606 | 738.0 | 546.5 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -9.33 | 185.31 | -18.84 | 103.30 | 0.3288 | 687.0 | 471.1 | |
| 0.00 | 4.17 | 0.00 | 2.18 | -8.09 | 185.12 | -19.03 | 99.46 | 0.3287 | 538.0 | 738.4 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -8.54 | 185.09 | -19.05 | 100.82 | 0.3301 | 902.0 | 708.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -7.15 | 185.16 | -18.98 | 96.63 | 0.3264 | 675.0 | 527.9 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -10.98 | 184.91 | -19.23 | 107.87 | 0.3412 | 893.0 | 697.9 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -7.48 | 185.11 | -19.03 | 97.63 | 0.3276 | 656.0 | 530.5 | |
| 0.00 | 4.08 | 0.00 | 2.14 | -8.90 | 185.01 | -19.13 | 101.85 | 0.3324 | 417.0 | 536.2 | |
| 0.00 | 1.86 | 0.00 | 0.98 | -9.05 | 184.19 | -19.95 | 101.92 | 0.3459 | -572.0 | -493.4 | |
| 4.70 | 48.05 | 2.49 | 25.55 | -11.92 | 183.89 | -20.25 | 109.67 | 0.3612 | 1142.3 | 323.9 | |
| 6.92 | -19.00 | 3.67 | -19.00 | -11.68 | 183.85 | -20.30 | 108.98 | 0.3608 | 1222.3 | 999999 | |
| 11.08 | -19.00 | 5.89 | -19.00 | -11.73 | 183.61 | -20.53 | 108.95 | 0.3646 | 1080.6 | 999999 | |
| 0.00 | 5.05 | 0.00 | 2.67 | -8.83 | 183.68 | -20.46 | 101.05 | 0.3535 | -892.0 | -551.0 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -8.46 | 183.54 | -20.60 | 99.96 | 0.3549 | -884.0 | -695.1 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -10.93 | 183.31 | -20.83 | 106.62 | 0.3659 | 775.0 | 568.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.15 | 183.30 | -20.84 | 99.01 | 0.3582 | -826.0 | -725.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -7.94 | 183.25 | -20.90 | 98.40 | 0.3587 | -681.0 | -567.7 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -8.33 | 183.16 | -20.98 | 99.46 | 0.3608 | -854.0 | -714.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.14 | 183.10 | -21.04 | 98.93 | 0.3613 | -872.0 | -683.2 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -10.95 | 182.85 | -21.29 | 106.37 | 0.3732 | 793.0 | 546.3 | |
| 10.73 | 37.41 | 5.70 | 19.89 | -8.56 | 182.98 | -21.16 | 100.04 | 0.3641 | -1224.2 | -736.5 | |
| 1.77 | -30.00 | 0.94 | -30.00 | -8.80 | 182.90 | -21.24 | 100.66 | 0.3659 | -918.5 | 999999 | |
| 4.79 | -30.00 | 2.55 | -30.00 | -8.31 | 182.74 | -21.41 | 99.28 | 0.3675 | -867.9 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.09 | -11.33 | 182.49 | -21.65 | 107.14 | 0.3802 | 822.0 | 635.7 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -11.75 | 182.42 | -21.72 | 108.17 | 0.3830 | 610.0 | 479.5 | |
| 1.60 | -30.00 | 0.85 | -30.00 | -8.49 | 182.63 | -21.52 | 99.72 | 0.3696 | -704.1 | 999999 | |
| 16.67 | 89.28 | 9.00 | 48.25 | -13.24 | 181.69 | -22.46 | 111.33 | 0.4008 | 1397.4 | 412.5 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -11.72 | 181.56 | -22.58 | 107.55 | 0.3960 | -788.0 | -772.0 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -11.37 | 181.03 | -23.12 | 106.38 | 0.4029 | -1037.0 | -899.6 | |
| 0.00 | 2.13 | 0.00 | 1.15 | -12.06 | 180.86 | -23.28 | 107.95 | 0.4080 | -1103.0 | -916.3 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -10.30 | 180.85 | -23.29 | 103.68 | 0.4022 | -796.0 | -692.3 | |
| 0.00 | 4.70 | 0.00 | 2.55 | -11.72 | 180.63 | -23.52 | 106.99 | 0.4103 | -962.0 | -816.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -12.11 | 180.59 | -23.55 | 107.91 | 0.4123 | -937.0 | -842.8 | |
| 0.00 | 2.57 | 0.00 | 1.40 | -12.41 | 180.39 | -23.75 | 108.48 | 0.4165 | -948.0 | -698.7 | |
| 0.00 | 2.04 | 0.00 | 1.11 | -11.71 | 180.43 | -23.72 | 106.87 | 0.4133 | -767.0 | -682.3 | |
| 0.00 | 2.31 | 0.00 | 1.27 | -14.92 | 179.98 | -24.16 | 113.88 | 0.4344 | -785.0 | -607.3 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -12.64 | 180.20 | -23.94 | 108.92 | 0.4204 | -857.0 | -662.2 | |
| 0.00 | 2.13 | 0.00 | 1.17 | -15.44 | 179.85 | -24.29 | 114.90 | 0.4390 | 685.0 | 654.7 | |
| 0.00 | 5.50 | 0.00 | 3.00 | -12.46 | 180.08 | -24.06 | 108.41 | 0.4213 | -1015.0 | -791.6 | |
| 0.98 | 4.61 | 0.53 | 2.53 | -12.84 | 179.74 | -24.40 | 109.08 | 0.4280 | -971.5 | -772.0 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.79 | 178.28 | -25.87 | 116.50 | 0.4686 | 799.0 | 710.4 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.87 | 177.88 | -26.26 | 116.35 | 0.4745 | 514.0 | 404.2 | |
| 0.00 | 1.68 | 0.00 | 1.02 | -14.14 | 170.02 | -34.12 | 107.28 | 0.5718 | -661.0 | -473.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
