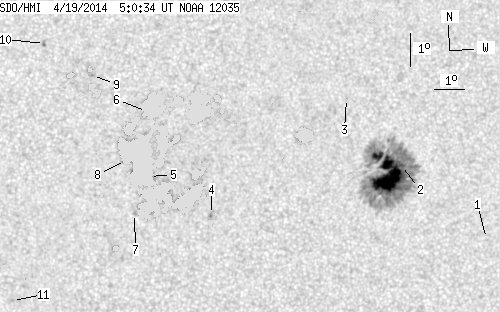

SDO HMI 2014-04-19 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.11 | 652.49 | 5.29 | 348.44 | -15.99 | 222.61 | 19.02 | 237.75 | 0.3693 | -322.3 | 157.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.40 | -18.04 | 230.63 | 27.04 | 241.95 | 0.4918 | 277.0 | 317.5 | |
| 0.80 | 281.95 | 0.44 | 154.58 | -15.91 | 227.36 | 23.77 | 243.66 | 0.4343 | 729.7 | 358.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -13.93 | 225.28 | 21.69 | 246.41 | 0.3931 | -562.0 | -439.4 | |
| 0.00 | 2.22 | 0.00 | 1.18 | -17.61 | 221.16 | 17.56 | 232.90 | 0.3622 | 826.0 | 724.8 | |
| 4.43 | 301.11 | 2.32 | 157.69 | -16.49 | 219.02 | 15.43 | 232.25 | 0.3240 | 11.1 | 46.5 | |
| 3.28 | 59.67 | 1.70 | 31.04 | -14.50 | 218.78 | 15.18 | 237.21 | 0.3029 | -1241.1 | -239.5 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -17.64 | 218.63 | 15.03 | 228.73 | 0.3303 | -552.0 | -414.4 | |
| 1.60 | -5.00 | 0.83 | -5.00 | -16.02 | 218.21 | 14.61 | 232.05 | 0.3088 | -894.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -13.44 | 216.98 | 13.39 | 237.33 | 0.2687 | -914.0 | -750.4 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -12.50 | 215.41 | 11.82 | 237.47 | 0.2382 | -798.0 | -707.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -20.41 | 214.85 | 11.26 | 214.88 | 0.3214 | -784.0 | -679.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
