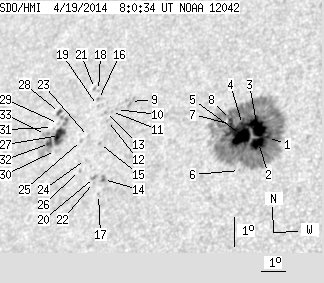

SDO HMI 2014-04-19 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.61 | 446.99 | 56.06 | 298.51 | 18.43 | 166.75 | -35.20 | 54.68 | 0.6713 | -352.4 | -217.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 372.15 | 0.17 | 244.06 | 18.17 | 168.79 | -33.16 | 53.58 | 0.6482 | -1230.0 | -349.4 | |
| 12.06 | -1.00 | 7.85 | -1.00 | 18.02 | 168.48 | -33.47 | 54.02 | 0.6504 | -1243.1 | 999999 | |
| 23.41 | -1.00 | 15.32 | -1.00 | 18.52 | 168.33 | -33.62 | 53.48 | 0.6555 | -1127.0 | 999999 | |
| 1.68 | -1.00 | 1.11 | -1.00 | 18.65 | 167.73 | -34.22 | 53.78 | 0.6629 | -676.4 | 999999 | |
| 28.37 | -1.00 | 18.67 | -1.00 | 18.32 | 167.72 | -34.23 | 54.20 | 0.6606 | -951.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 17.14 | 167.94 | -34.01 | 55.59 | 0.6501 | -509.0 | -481.7 | |
| 0.27 | -1.00 | 0.18 | -1.00 | 18.67 | 167.30 | -34.66 | 54.07 | 0.6676 | -532.7 | 999999 | |
| 1.68 | -1.00 | 1.12 | -1.00 | 18.84 | 167.22 | -34.73 | 53.92 | 0.6695 | -318.4 | 999999 | |
| 0.00 | 5.67 | 0.00 | 4.03 | 19.68 | 163.00 | -38.95 | 55.78 | 0.7182 | 659.0 | 542.8 | |
| 0.00 | 1.24 | 0.00 | 0.89 | 19.45 | 162.49 | -39.46 | 56.39 | 0.7220 | 593.0 | 457.4 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 19.40 | 162.30 | -39.66 | 56.57 | 0.7236 | 632.0 | 473.4 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 19.11 | 162.21 | -39.74 | 56.98 | 0.7228 | 511.0 | 408.2 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 19.38 | 162.05 | -39.90 | 56.74 | 0.7260 | 540.0 | 422.4 | |
| 0.62 | 2.66 | 0.43 | 1.86 | 17.16 | 162.58 | -39.38 | 59.19 | 0.7081 | 823.7 | 710.0 | |
| 0.00 | 1.15 | 0.00 | 0.82 | 18.36 | 162.09 | -39.86 | 57.97 | 0.7198 | 664.0 | 553.9 | |
| 0.00 | 1.42 | 0.00 | 1.03 | 19.84 | 161.62 | -40.33 | 56.45 | 0.7328 | 503.0 | 432.5 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 16.68 | 162.49 | -39.46 | 59.85 | 0.7064 | 566.0 | 487.2 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 20.14 | 161.53 | -40.43 | 56.14 | 0.7354 | 503.0 | 406.0 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 19.64 | 161.64 | -40.31 | 56.68 | 0.7315 | 510.0 | 442.6 | |
| 0.00 | 2.39 | 0.00 | 1.69 | 17.25 | 162.18 | -39.77 | 59.31 | 0.7127 | 617.0 | 572.3 | |
| 0.00 | 1.42 | 0.00 | 1.04 | 20.22 | 161.33 | -40.62 | 56.17 | 0.7378 | 455.0 | 366.2 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 17.09 | 162.18 | -39.77 | 59.51 | 0.7119 | 520.0 | 413.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 18.62 | 161.56 | -40.39 | 57.97 | 0.7267 | 280.0 | 385.3 | |
| 0.00 | 0.53 | 0.00 | 0.38 | 17.87 | 161.65 | -40.31 | 58.85 | 0.7217 | 522.0 | 416.0 | |
| 0.00 | 1.51 | 0.00 | 1.09 | 18.51 | 161.30 | -40.65 | 58.26 | 0.7287 | 598.0 | 499.1 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 17.52 | 161.49 | -40.46 | 59.38 | 0.7214 | 544.0 | 495.1 | |
| 10.02 | 44.16 | 7.35 | 32.50 | 18.74 | 160.30 | -41.65 | 58.56 | 0.7400 | 857.6 | 390.3 | |
| 1.42 | -27.00 | 1.05 | -27.00 | 19.51 | 160.06 | -41.89 | 57.76 | 0.7464 | 395.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.65 | 19.14 | 160.13 | -41.82 | 58.16 | 0.7438 | 332.0 | 234.8 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 18.25 | 160.27 | -41.68 | 59.17 | 0.7377 | 701.0 | 632.8 | |
| 0.00 | 0.35 | 0.00 | 0.26 | 19.02 | 159.91 | -42.04 | 58.43 | 0.7454 | 155.0 | 196.8 | |
| 3.81 | -27.00 | 2.81 | -27.00 | 18.50 | 159.94 | -42.01 | 59.05 | 0.7423 | 655.4 | 999999 | |
| 0.00 | 2.93 | 0.00 | 2.17 | 18.81 | 159.68 | -42.28 | 58.82 | 0.7466 | -233.0 | -198.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
