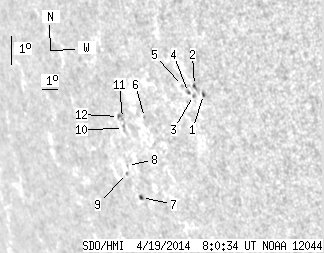

SDO HMI 2014-04-19 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.48 | 17.48 | 2.54 | 18.31 | -19.62 | 140.09 | -61.87 | 109.48 | 0.8820 | 147.4 | 151.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 1.33 | 0.67 | 1.25 | -19.01 | 143.72 | -58.24 | 109.12 | 0.8529 | 475.8 | 538.4 | |
| 0.44 | 2.22 | 0.42 | 2.11 | -18.70 | 143.34 | -58.61 | 108.71 | 0.8558 | 279.2 | 293.2 | |
| 0.00 | 1.42 | 0.00 | 1.36 | -18.99 | 143.11 | -58.84 | 109.04 | 0.8580 | 554.0 | 484.2 | |
| 0.35 | 2.04 | 0.34 | 1.97 | -18.88 | 142.86 | -59.09 | 108.88 | 0.8600 | 194.5 | -59.3 | |
| 0.00 | 0.89 | 0.00 | 0.86 | -18.64 | 142.63 | -59.33 | 108.58 | 0.8618 | 165.0 | 95.1 | |
| 0.00 | 0.98 | 0.00 | 1.04 | -19.42 | 139.64 | -62.32 | 109.20 | 0.8863 | 31.0 | 59.7 | |
| 0.98 | 1.86 | 1.11 | 2.13 | -21.80 | 137.61 | -64.35 | 111.70 | 0.9025 | -264.9 | -244.2 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -20.76 | 137.41 | -64.55 | 110.53 | 0.9033 | -308.0 | -350.0 | |
| 0.00 | 1.33 | 0.00 | 1.54 | -21.00 | 137.14 | -64.81 | 110.77 | 0.9053 | -340.0 | -282.2 | |
| 0.00 | 2.48 | 0.00 | 2.78 | -19.63 | 137.98 | -63.97 | 109.31 | 0.8986 | 242.0 | 210.4 | |
| 0.00 | 1.06 | 0.00 | 1.18 | -19.33 | 138.13 | -63.82 | 108.99 | 0.8974 | 451.0 | 372.9 | |
| 0.00 | 1.60 | 0.00 | 1.79 | -19.24 | 137.90 | -64.05 | 108.88 | 0.8991 | 371.0 | 356.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
