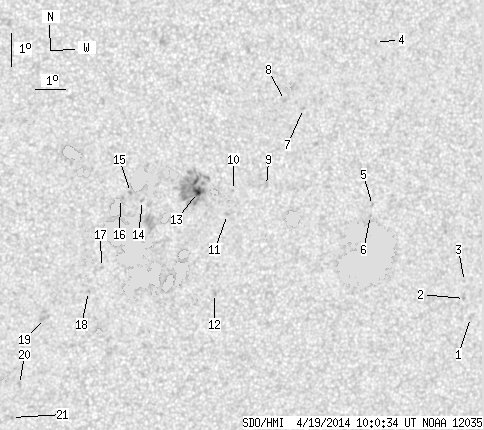

SDO HMI 2014-04-19 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.01 | 88.31 | 1.61 | 47.24 | -14.97 | 221.02 | 20.16 | 242.13 | 0.3793 | 242.9 | 392.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.57 | -17.98 | 230.81 | 29.95 | 243.97 | 0.5306 | 826.0 | 529.1 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -17.41 | 230.49 | 29.63 | 244.80 | 0.5234 | 788.0 | 681.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -16.89 | 230.40 | 29.54 | 245.70 | 0.5197 | 701.0 | 578.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -9.76 | 226.41 | 25.55 | 258.39 | 0.4357 | 729.0 | 595.8 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -14.70 | 226.82 | 25.96 | 247.78 | 0.4592 | 851.0 | 688.8 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -15.00 | 226.79 | 25.93 | 247.12 | 0.4603 | 781.0 | 498.3 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -11.84 | 224.16 | 23.30 | 252.52 | 0.4076 | 712.0 | 449.7 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -11.62 | 223.50 | 22.65 | 252.67 | 0.3968 | 785.0 | 720.5 | |
| 0.00 | 2.93 | 0.00 | 1.58 | -14.21 | 223.14 | 22.29 | 246.17 | 0.4036 | 562.0 | 558.4 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -14.40 | 222.06 | 21.20 | 244.78 | 0.3888 | 796.0 | 617.7 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -15.14 | 221.93 | 21.08 | 242.90 | 0.3916 | 783.0 | 663.4 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -17.57 | 221.77 | 20.91 | 237.22 | 0.4064 | 664.0 | 639.9 | |
| 3.01 | 59.67 | 1.61 | 31.78 | -14.50 | 220.87 | 20.01 | 243.39 | 0.3722 | 1192.2 | 555.9 | |
| 0.00 | 1.60 | 0.00 | 0.84 | -14.79 | 219.09 | 18.23 | 240.64 | 0.3485 | -494.0 | -319.3 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -14.56 | 218.67 | 17.82 | 240.73 | 0.3409 | -1116.0 | -850.9 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -14.75 | 218.36 | 17.50 | 239.83 | 0.3379 | -595.0 | -676.3 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -16.88 | 217.92 | 17.07 | 233.83 | 0.3494 | -503.0 | -405.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -17.63 | 217.57 | 16.71 | 231.50 | 0.3516 | -781.0 | -605.3 | |
| 0.00 | 3.90 | 0.00 | 2.06 | -18.49 | 216.20 | 15.34 | 227.22 | 0.3433 | -837.0 | -635.6 | |
| 0.00 | 2.22 | 0.00 | 1.18 | -20.56 | 215.56 | 14.71 | 221.70 | 0.3589 | -691.0 | -538.9 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -21.60 | 215.40 | 14.54 | 219.41 | 0.3693 | -631.0 | -531.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
