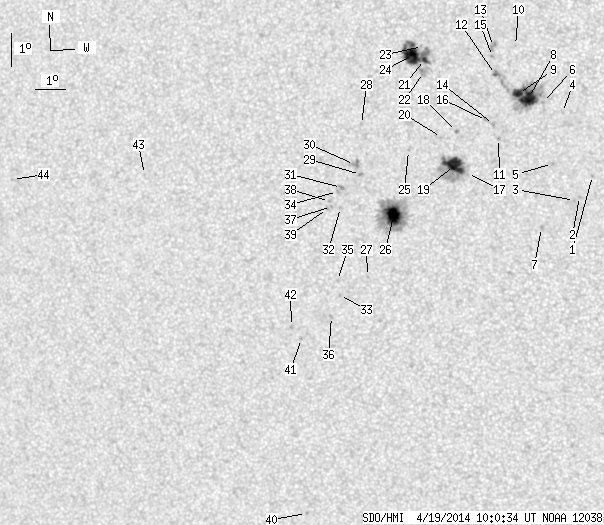

SDO HMI 2014-04-19 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.18 | 316.24 | 44.83 | 165.28 | -11.23 | 183.34 | -17.52 | 109.87 | 0.3166 | 414.2 | 227.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.45 | -12.15 | 188.28 | -12.58 | 119.85 | 0.2467 | 873.0 | 761.2 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -12.78 | 187.83 | -13.03 | 121.22 | 0.2582 | 952.0 | 824.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -12.90 | 187.67 | -13.19 | 121.32 | 0.2616 | 912.0 | 751.2 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -10.22 | 187.42 | -13.44 | 111.29 | 0.2465 | 822.0 | 752.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -11.76 | 187.03 | -13.83 | 116.35 | 0.2623 | 938.0 | 732.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.91 | 186.81 | -14.05 | 109.32 | 0.2546 | 990.0 | 790.4 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -13.69 | 186.57 | -14.29 | 121.94 | 0.2839 | 791.0 | 656.4 | |
| 20.04 | 61.09 | 10.28 | 31.34 | -9.75 | 186.37 | -14.49 | 108.23 | 0.2607 | 1211.2 | 469.6 | |
| 6.74 | -8.00 | 3.46 | -8.00 | -9.62 | 186.06 | -14.80 | 107.44 | 0.2651 | 968.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -8.17 | 186.03 | -14.83 | 102.01 | 0.2602 | 838.0 | 690.9 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -10.96 | 185.36 | -15.50 | 111.38 | 0.2830 | 932.0 | 732.9 | |
| 0.71 | 11.61 | 0.37 | 5.98 | -9.03 | 185.36 | -15.50 | 104.67 | 0.2740 | 903.6 | 695.9 | |
| 0.00 | 4.96 | 0.00 | 2.55 | -8.18 | 185.33 | -15.52 | 101.60 | 0.2716 | 853.0 | 777.1 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -10.54 | 185.22 | -15.63 | 109.80 | 0.2829 | 791.0 | 658.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -8.48 | 185.29 | -15.57 | 102.66 | 0.2733 | 990.0 | 832.2 | |
| 0.00 | 2.31 | 0.00 | 1.19 | -10.41 | 185.01 | -15.85 | 109.15 | 0.2856 | 595.0 | 439.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -12.00 | 184.31 | -16.55 | 113.49 | 0.3052 | 282.0 | 356.3 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -10.72 | 184.03 | -16.83 | 109.20 | 0.3025 | 964.0 | 728.3 | |
| 19.24 | 50.62 | 10.02 | 26.38 | -11.74 | 183.90 | -16.95 | 112.27 | 0.3099 | 1156.0 | 379.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -10.88 | 183.54 | -17.32 | 109.27 | 0.3110 | 812.0 | 623.5 | |
| 2.75 | 42.11 | 1.43 | 21.96 | -8.51 | 183.13 | -17.73 | 101.48 | 0.3087 | -1161.8 | -844.2 | |
| 0.00 | 6.21 | 0.00 | 3.23 | -8.91 | 183.08 | -17.78 | 102.70 | 0.3107 | -393.0 | -407.8 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -8.12 | 183.08 | -17.78 | 100.19 | 0.3084 | -412.0 | -491.4 | |
| 19.77 | -21.00 | 10.32 | -21.00 | -8.38 | 182.72 | -18.14 | 100.86 | 0.3150 | -1101.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -11.25 | 182.45 | -18.40 | 109.39 | 0.3297 | 715.0 | 531.9 | |
| 16.93 | 90.52 | 8.95 | 47.85 | -13.20 | 181.82 | -19.04 | 114.26 | 0.3499 | 1333.6 | 428.0 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -15.03 | 180.80 | -20.06 | 117.87 | 0.3764 | 661.0 | 485.0 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -10.41 | 180.98 | -19.87 | 105.91 | 0.3492 | -647.0 | -524.7 | |
| 0.00 | 2.04 | 0.00 | 1.08 | -11.92 | 180.84 | -20.02 | 109.95 | 0.3578 | -1036.0 | -827.0 | |
| 0.00 | 6.29 | 0.00 | 3.34 | -11.62 | 180.67 | -20.19 | 108.99 | 0.3591 | -910.0 | -806.5 | |
| 0.00 | 2.31 | 0.00 | 1.23 | -12.30 | 180.19 | -20.67 | 110.42 | 0.3696 | -982.0 | -849.5 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -12.90 | 180.10 | -20.76 | 111.90 | 0.3739 | -770.0 | -513.3 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -15.58 | 179.80 | -21.05 | 118.15 | 0.3941 | 785.0 | 593.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -12.42 | 180.04 | -20.81 | 110.61 | 0.3723 | -765.0 | -677.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -15.12 | 179.79 | -21.07 | 117.05 | 0.3914 | -848.0 | -650.2 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -16.21 | 179.46 | -21.39 | 119.25 | 0.4032 | 805.0 | 644.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -12.86 | 179.81 | -21.05 | 111.56 | 0.3782 | -878.0 | -703.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -12.71 | 179.75 | -21.10 | 111.13 | 0.3782 | -816.0 | -554.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -12.92 | 179.67 | -21.19 | 111.59 | 0.3805 | -770.0 | -631.6 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -22.29 | 177.72 | -23.14 | 129.50 | 0.4732 | -771.0 | -589.8 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -16.85 | 178.37 | -22.49 | 119.57 | 0.4227 | 782.0 | 604.3 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -16.47 | 178.08 | -22.78 | 118.48 | 0.4242 | 744.0 | 656.1 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -11.66 | 173.60 | -27.26 | 105.15 | 0.4666 | -697.0 | -559.0 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -11.60 | 168.93 | -31.92 | 103.46 | 0.5347 | -361.0 | -337.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
