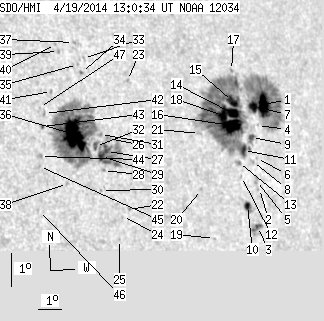

SDO HMI 2014-04-19 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.23 | 720.52 | 95.30 | 530.07 | 4.55 | 245.78 | 46.56 | 281.11 | 0.7386 | -109.5 | -102.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.27 | 404.97 | 11.32 | 313.24 | 5.48 | 249.50 | 50.28 | 281.31 | 0.7831 | -773.1 | -353.2 | |
| 0.00 | 0.62 | 0.00 | 0.48 | 2.89 | 249.07 | 49.86 | 278.12 | 0.7735 | -453.0 | -446.3 | |
| 1.77 | 8.15 | 1.37 | 6.29 | 1.72 | 248.92 | 49.71 | 276.66 | 0.7699 | -681.7 | -583.5 | |
| 0.00 | 0.71 | 0.00 | 0.56 | 4.81 | 249.14 | 49.93 | 280.56 | 0.7779 | -365.0 | -363.0 | |
| 0.00 | 3.10 | 0.00 | 2.41 | 3.12 | 248.95 | 49.73 | 278.45 | 0.7726 | -574.0 | -472.6 | |
| 0.00 | 0.80 | 0.00 | 0.62 | 3.79 | 249.00 | 49.78 | 279.30 | 0.7744 | -177.0 | -149.2 | |
| 6.74 | -1.00 | 5.28 | -1.00 | 5.38 | 249.01 | 49.80 | 281.31 | 0.7778 | -869.1 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.38 | 3.69 | 248.80 | 49.59 | 279.21 | 0.7720 | -609.0 | -511.4 | |
| 2.04 | -1.00 | 1.59 | -1.00 | 4.42 | 248.82 | 49.60 | 280.14 | 0.7737 | -568.7 | 999999 | |
| 3.37 | 7.27 | 2.58 | 5.58 | 2.33 | 248.48 | 49.27 | 277.53 | 0.7660 | -708.9 | -534.1 | |
| 3.46 | -1.00 | 2.66 | -1.00 | 4.00 | 248.41 | 49.19 | 279.69 | 0.7683 | -541.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 3.19 | 248.25 | 49.04 | 278.70 | 0.7651 | -495.0 | -473.1 | |
| 0.00 | 2.84 | 0.00 | 2.17 | 3.61 | 248.14 | 48.93 | 279.26 | 0.7647 | -577.0 | -569.0 | |
| 10.37 | -1.00 | 7.96 | -1.00 | 5.10 | 248.00 | 48.79 | 281.21 | 0.7662 | -869.8 | 999999 | |
| 8.07 | -1.00 | 6.21 | -1.00 | 5.47 | 248.04 | 48.83 | 281.67 | 0.7674 | -727.3 | 999999 | |
| 21.09 | -1.00 | 16.15 | -1.00 | 4.72 | 247.92 | 48.71 | 280.75 | 0.7644 | -986.0 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.17 | 6.42 | 248.11 | 48.90 | 282.87 | 0.7704 | -282.0 | -271.3 | |
| 10.55 | -1.00 | 8.02 | -1.00 | 5.00 | 247.53 | 48.32 | 281.21 | 0.7608 | -1037.6 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 1.22 | 246.93 | 47.72 | 276.38 | 0.7466 | 390.0 | 380.7 | |
| 0.00 | 1.06 | 0.00 | 0.78 | 2.67 | 246.41 | 47.19 | 278.42 | 0.7432 | -462.0 | -397.2 | |
| 0.00 | 2.04 | 0.00 | 1.51 | 4.38 | 246.44 | 47.22 | 280.67 | 0.7471 | -783.0 | -590.8 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 1.86 | 243.26 | 44.04 | 278.03 | 0.7040 | 427.0 | 428.8 | |
| 0.00 | 1.06 | 0.00 | 0.75 | 5.80 | 243.44 | 44.23 | 283.44 | 0.7158 | 553.0 | 431.8 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 1.63 | 242.96 | 43.74 | 277.77 | 0.6999 | 437.0 | 466.6 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 0.92 | 242.81 | 43.60 | 276.80 | 0.6967 | 390.0 | 319.4 | |
| 0.00 | 3.72 | 0.00 | 2.57 | 3.97 | 242.49 | 43.27 | 281.20 | 0.6994 | -87.0 | -7.8 | |
| 1.24 | 45.65 | 0.85 | 31.48 | 3.57 | 242.38 | 43.16 | 280.66 | 0.6971 | 586.8 | 134.1 | |
| 0.00 | 1.15 | 0.00 | 0.79 | 2.98 | 242.22 | 43.01 | 279.87 | 0.6937 | 627.0 | 529.5 | |
| 3.72 | -27.00 | 2.55 | -27.00 | 3.40 | 242.16 | 42.95 | 280.49 | 0.6940 | 708.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 2.36 | 242.11 | 42.90 | 279.02 | 0.6909 | 698.0 | 619.0 | |
| 0.00 | 2.13 | 0.00 | 1.46 | 4.07 | 242.16 | 42.95 | 281.43 | 0.6957 | -140.0 | -76.5 | |
| 1.60 | -27.00 | 1.09 | -27.00 | 3.69 | 241.93 | 42.72 | 280.96 | 0.6919 | 649.1 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.04 | 6.36 | 241.66 | 42.45 | 284.82 | 0.6961 | 410.0 | 415.8 | |
| 0.00 | 1.51 | 0.00 | 1.03 | 5.93 | 241.53 | 42.32 | 284.25 | 0.6932 | 786.0 | 604.3 | |
| 0.00 | 1.24 | 0.00 | 0.85 | 6.16 | 241.39 | 42.18 | 284.63 | 0.6922 | 662.0 | 581.4 | |
| 40.59 | 208.82 | 27.43 | 141.11 | 4.00 | 241.09 | 41.88 | 281.66 | 0.6823 | 1064.9 | 375.4 | |
| 0.00 | 1.33 | 0.00 | 0.91 | 6.83 | 241.30 | 42.08 | 285.60 | 0.6933 | 527.0 | 430.7 | |
| 0.00 | 1.60 | 0.00 | 1.07 | 2.49 | 240.73 | 41.51 | 279.57 | 0.6738 | 649.0 | 488.2 | |
| 0.00 | 1.42 | 0.00 | 0.96 | 6.52 | 240.65 | 41.44 | 285.40 | 0.6844 | 826.0 | 698.0 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 6.73 | 240.55 | 41.34 | 285.73 | 0.6838 | 579.0 | 515.4 | |
| 0.00 | 1.51 | 0.00 | 1.01 | 5.27 | 240.25 | 41.04 | 283.76 | 0.6754 | 702.0 | 495.7 | |
| 0.00 | 2.04 | 0.00 | 1.36 | 4.57 | 239.92 | 40.71 | 282.87 | 0.6692 | 706.0 | 548.8 | |
| 0.35 | 1.06 | 0.24 | 0.70 | 4.17 | 239.81 | 40.60 | 282.31 | 0.6666 | 757.5 | 724.5 | |
| 0.00 | 2.39 | 0.00 | 1.58 | 3.25 | 239.68 | 40.47 | 281.00 | 0.6624 | 803.0 | 699.3 | |
| 0.00 | 1.24 | 0.00 | 0.82 | 2.94 | 239.62 | 40.41 | 280.56 | 0.6609 | 776.0 | 666.0 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 1.60 | 239.58 | 40.36 | 278.57 | 0.6570 | 495.0 | 499.4 | |
| 0.00 | 0.35 | 0.00 | 0.24 | 4.75 | 239.73 | 40.52 | 283.18 | 0.6673 | 488.0 | 502.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
