SDO HMI 2014-04-19 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.58 | 0.00 | 2.97 | 12.79 | 187.40 | -10.16 | 29.91 | 0.3580 | 166.4 | 193.6 | |
|
previous
or next observation for the same group /

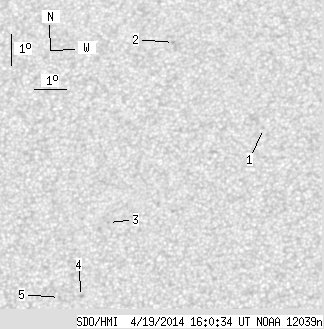

back to the solar disc SDO HMI 2014-04-19 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.38 | 15.14 | 191.62 | -5.94 | 16.02 | 0.3635 | -665.0 | -491.0 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 17.97 | 188.66 | -8.90 | 20.52 | 0.4215 | -793.0 | -606.7 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 12.22 | 186.87 | -10.69 | 31.28 | 0.3509 | 777.0 | 629.4 | |
| 0.00 | 1.77 | 0.00 | 0.93 | 9.91 | 186.11 | -11.45 | 36.99 | 0.3265 | 858.0 | 666.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 9.90 | 185.42 | -12.14 | 38.63 | 0.3333 | 655.0 | 500.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
