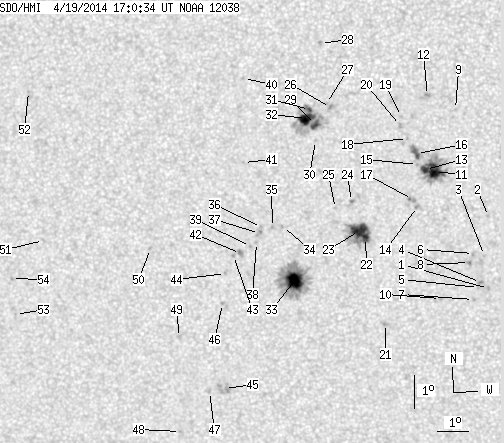

SDO HMI 2014-04-19 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.73 | 324.02 | 40.78 | 166.38 | -11.21 | 183.28 | -13.73 | 114.40 | 0.2589 | 444.7 | 254.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.63 | -13.45 | 188.08 | -8.93 | 133.61 | 0.2094 | 855.0 | 725.8 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -11.27 | 188.16 | -8.85 | 125.08 | 0.1852 | 837.0 | 552.9 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -12.45 | 187.99 | -9.02 | 129.57 | 0.1994 | 735.0 | 669.9 | |
| 0.00 | 2.22 | 0.00 | 1.12 | -13.26 | 187.84 | -9.17 | 132.19 | 0.2104 | 1047.0 | 812.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.41 | 187.77 | -9.24 | 132.53 | 0.2129 | 643.0 | 528.8 | |
| 0.00 | 2.30 | 0.00 | 1.17 | -12.38 | 187.65 | -9.36 | 128.30 | 0.2033 | 770.0 | 616.3 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -13.78 | 187.60 | -9.41 | 133.28 | 0.2192 | 696.0 | 572.6 | |
| 0.00 | 2.13 | 0.00 | 1.08 | -12.65 | 187.52 | -9.49 | 128.96 | 0.2079 | 1042.0 | 863.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.02 | 187.23 | -9.78 | 106.49 | 0.1762 | 875.0 | 633.3 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -13.73 | 186.56 | -10.45 | 130.23 | 0.2318 | 754.0 | 561.6 | |
| 15.15 | 48.91 | 7.66 | 24.71 | -9.88 | 186.53 | -10.48 | 114.67 | 0.1981 | 1313.3 | 603.8 | |
| 0.00 | 2.39 | 0.00 | 1.21 | -7.58 | 186.38 | -10.63 | 103.05 | 0.1886 | 912.0 | 778.8 | |
| 4.34 | -11.00 | 2.20 | -11.00 | -9.81 | 186.25 | -10.76 | 113.83 | 0.2020 | 1042.4 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.26 | -10.93 | 185.96 | -11.05 | 118.15 | 0.2144 | 990.0 | 756.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.66 | 186.01 | -11.00 | 112.68 | 0.2049 | 915.0 | 717.6 | |
| 3.10 | 8.24 | 1.57 | 4.17 | -9.33 | 185.99 | -11.02 | 111.11 | 0.2032 | 1118.2 | 807.0 | |
| 0.00 | 3.54 | 0.00 | 1.80 | -10.71 | 185.81 | -11.20 | 116.95 | 0.2150 | 1045.0 | 876.4 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -8.87 | 185.72 | -11.29 | 108.57 | 0.2049 | 776.0 | 612.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -8.20 | 185.56 | -11.45 | 105.20 | 0.2046 | 925.0 | 613.0 | |
| 0.00 | 2.30 | 0.00 | 1.17 | -8.47 | 185.52 | -11.49 | 106.44 | 0.2064 | 786.0 | 713.2 | |
| 0.00 | 2.13 | 0.00 | 1.09 | -14.46 | 184.78 | -12.23 | 128.33 | 0.2626 | 821.0 | 695.9 | |
| 5.49 | 43.60 | 2.81 | 22.30 | -11.83 | 184.29 | -12.72 | 118.48 | 0.2463 | 1075.1 | 472.3 | |
| 14.89 | -22.00 | 7.61 | -22.00 | -11.62 | 184.11 | -12.90 | 117.38 | 0.2474 | 1173.5 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -10.73 | 183.90 | -13.11 | 113.74 | 0.2446 | 1004.0 | 786.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -10.94 | 183.39 | -13.62 | 113.74 | 0.2538 | 765.0 | 526.5 | |
| 0.00 | 2.66 | 0.00 | 1.36 | -7.89 | 183.36 | -13.65 | 101.75 | 0.2399 | -1031.0 | -885.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -7.76 | 183.23 | -13.77 | 101.16 | 0.2416 | -940.0 | -737.2 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -5.95 | 183.10 | -13.91 | 93.59 | 0.2406 | 792.0 | 723.3 | |
| 4.16 | 56.00 | 2.13 | 28.67 | -8.39 | 182.87 | -14.14 | 103.39 | 0.2496 | -1102.1 | -512.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -8.87 | 182.85 | -14.16 | 105.26 | 0.2517 | -959.0 | -729.6 | |
| 1.59 | -29.00 | 0.82 | -29.00 | -7.93 | 182.70 | -14.31 | 101.47 | 0.2510 | -993.1 | 999999 | |
| 11.96 | -29.00 | 6.12 | -29.00 | -8.20 | 182.59 | -14.42 | 102.45 | 0.2535 | -1231.5 | 999999 | |
| 19.05 | 87.90 | 9.86 | 45.49 | -13.09 | 181.96 | -15.05 | 118.88 | 0.2901 | 1380.6 | 435.5 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -11.44 | 181.68 | -15.33 | 113.21 | 0.2832 | -845.0 | -670.4 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -11.46 | 181.36 | -15.65 | 112.89 | 0.2883 | -908.0 | -726.0 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -11.45 | 181.01 | -16.00 | 112.45 | 0.2936 | -1092.0 | -704.7 | |
| 0.00 | 2.66 | 0.00 | 1.38 | -11.63 | 180.93 | -16.08 | 112.94 | 0.2958 | -953.0 | -900.9 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -11.90 | 180.82 | -16.19 | 113.66 | 0.2991 | -942.0 | -746.3 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -12.02 | 180.62 | -16.39 | 113.78 | 0.3029 | -952.0 | -825.0 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -6.94 | 180.65 | -16.35 | 96.80 | 0.2828 | 801.0 | 596.7 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -9.48 | 180.54 | -16.47 | 105.49 | 0.2914 | 721.0 | 567.5 | |
| 0.00 | 3.81 | 0.00 | 1.98 | -12.22 | 180.29 | -16.72 | 114.01 | 0.3092 | -1189.0 | -919.7 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -12.28 | 180.06 | -16.95 | 113.91 | 0.3130 | -748.0 | -617.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -12.82 | 179.76 | -17.25 | 115.16 | 0.3208 | -716.0 | -622.0 | |
| 0.00 | 10.37 | 0.00 | 5.48 | -16.32 | 179.44 | -17.57 | 124.10 | 0.3514 | 690.0 | 714.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -13.72 | 179.60 | -17.41 | 117.53 | 0.3293 | -859.0 | -678.5 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -16.40 | 178.94 | -18.07 | 123.60 | 0.3589 | 793.0 | 537.1 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -17.60 | 177.85 | -19.16 | 124.96 | 0.3834 | 768.0 | 637.1 | |
| 0.00 | 2.39 | 0.00 | 1.27 | -14.72 | 178.11 | -18.90 | 118.39 | 0.3577 | 733.0 | 572.6 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -11.99 | 177.39 | -19.62 | 110.47 | 0.3522 | 715.0 | 565.2 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -11.63 | 173.88 | -23.13 | 107.10 | 0.4043 | -806.0 | -615.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -7.12 | 173.71 | -23.30 | 95.83 | 0.3963 | 603.0 | 454.9 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -13.83 | 172.71 | -24.30 | 111.48 | 0.4312 | -857.0 | -728.9 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -12.74 | 172.70 | -24.31 | 109.00 | 0.4265 | -837.0 | -673.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
