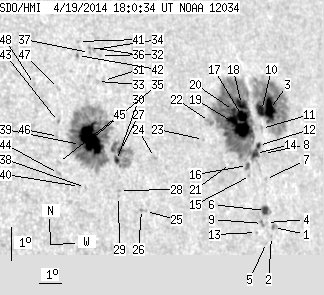

SDO HMI 2014-04-19 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.74 | 658.34 | 95.81 | 512.79 | 4.65 | 245.96 | 49.51 | 280.48 | 0.7716 | -107.9 | -99.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 3.54 | 0.51 | 2.95 | 1.89 | 249.41 | 52.95 | 276.29 | 0.8048 | -663.4 | -481.8 | |
| 0.00 | 0.89 | 0.00 | 0.73 | 1.61 | 249.30 | 52.84 | 275.96 | 0.8032 | -581.0 | -548.5 | |
| 14.44 | 133.18 | 12.20 | 112.78 | 5.50 | 249.53 | 53.07 | 280.68 | 0.8119 | -675.7 | -26.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 2.02 | 249.07 | 52.61 | 276.51 | 0.8014 | -440.0 | -495.0 | |
| 0.00 | 0.62 | 0.00 | 0.51 | 1.41 | 249.04 | 52.58 | 275.76 | 0.8003 | -579.0 | -559.4 | |
| 4.34 | 7.53 | 3.58 | 6.21 | 2.38 | 249.04 | 52.58 | 276.96 | 0.8016 | -675.9 | -373.1 | |
| 0.00 | 1.24 | 0.00 | 1.03 | 3.33 | 249.10 | 52.64 | 278.12 | 0.8038 | -372.0 | -354.2 | |
| 0.00 | 1.77 | 0.00 | 1.47 | 4.12 | 249.07 | 52.61 | 279.09 | 0.8048 | 127.0 | 148.5 | |
| 0.00 | 2.04 | 0.00 | 1.67 | 1.97 | 248.86 | 52.41 | 276.49 | 0.7992 | -748.0 | -638.2 | |
| 6.38 | -3.00 | 5.33 | -3.00 | 5.43 | 249.12 | 52.66 | 280.70 | 0.8077 | -786.2 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.33 | 4.88 | 249.05 | 52.59 | 280.03 | 0.8060 | -316.0 | -330.4 | |
| 1.86 | 234.10 | 1.54 | 189.85 | 4.35 | 248.84 | 52.39 | 279.42 | 0.8029 | -432.9 | -537.8 | |
| 0.00 | 0.80 | 0.00 | 0.65 | 1.68 | 248.55 | 52.10 | 276.17 | 0.7956 | -603.0 | -573.2 | |
| 3.90 | -12.00 | 3.21 | -12.00 | 4.09 | 248.67 | 52.21 | 279.14 | 0.8006 | -579.3 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.36 | 3.40 | 248.36 | 51.91 | 278.35 | 0.7963 | -505.0 | -538.0 | |
| 1.42 | 3.10 | 1.15 | 2.52 | 3.69 | 248.24 | 51.78 | 278.74 | 0.7955 | -755.9 | -614.0 | |
| 9.84 | -12.00 | 8.03 | -12.00 | 5.18 | 248.14 | 51.69 | 280.61 | 0.7973 | -884.8 | 999999 | |
| 8.60 | -12.00 | 7.03 | -12.00 | 5.55 | 248.14 | 51.68 | 281.06 | 0.7979 | -689.8 | 999999 | |
| 24.46 | -12.00 | 19.87 | -12.00 | 4.86 | 247.96 | 51.50 | 280.25 | 0.7947 | -1016.1 | 999999 | |
| 1.24 | -12.00 | 1.00 | -12.00 | 5.33 | 247.72 | 51.27 | 280.89 | 0.7932 | -930.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.99 | 3.69 | 247.41 | 50.96 | 278.92 | 0.7868 | -324.0 | -287.2 | |
| 0.00 | 6.56 | 0.00 | 5.16 | 4.91 | 246.52 | 50.07 | 280.65 | 0.7797 | -823.0 | -633.2 | |
| 0.00 | 0.80 | 0.00 | 0.62 | 4.34 | 246.19 | 49.73 | 280.01 | 0.7748 | -562.0 | -489.8 | |
| 0.00 | 2.39 | 0.00 | 1.78 | 3.63 | 243.88 | 47.42 | 279.64 | 0.7477 | 242.0 | 241.6 | |
| 0.00 | 1.24 | 0.00 | 0.91 | 1.96 | 243.39 | 46.93 | 277.52 | 0.7388 | 280.0 | 276.9 | |
| 0.00 | 1.33 | 0.00 | 0.97 | 2.01 | 243.21 | 46.76 | 277.62 | 0.7368 | 619.0 | 532.1 | |
| 3.46 | 37.04 | 2.50 | 26.79 | 3.75 | 242.39 | 45.93 | 280.16 | 0.7307 | 491.9 | 166.3 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 2.52 | 242.27 | 45.82 | 278.53 | 0.7267 | 691.0 | 584.5 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 2.34 | 242.22 | 45.76 | 278.29 | 0.7257 | 673.0 | 585.5 | |
| 2.22 | -27.00 | 1.59 | -27.00 | 3.43 | 242.19 | 45.74 | 279.78 | 0.7277 | 623.7 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.92 | 5.85 | 241.84 | 45.38 | 283.14 | 0.7294 | 413.0 | 326.9 | |
| 0.00 | 1.06 | 0.00 | 0.77 | 6.61 | 241.79 | 45.34 | 284.18 | 0.7310 | 467.0 | 405.8 | |
| 0.00 | 1.68 | 0.00 | 1.21 | 5.80 | 241.57 | 45.12 | 283.16 | 0.7262 | 558.0 | 415.8 | |
| 0.00 | 1.51 | 0.00 | 1.09 | 6.78 | 241.55 | 45.10 | 284.48 | 0.7287 | 399.0 | 360.3 | |
| 37.66 | 191.84 | 26.65 | 135.77 | 4.00 | 241.11 | 44.66 | 280.84 | 0.7162 | 1036.5 | 350.0 | |
| 0.00 | 1.15 | 0.00 | 0.83 | 6.83 | 241.34 | 44.89 | 284.61 | 0.7265 | 625.0 | 554.4 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 6.67 | 241.33 | 44.87 | 284.41 | 0.7258 | 469.0 | 493.6 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 2.52 | 240.81 | 44.36 | 278.87 | 0.7092 | 606.0 | 518.3 | |
| 2.30 | -35.00 | 1.62 | -35.00 | 3.82 | 240.68 | 44.22 | 280.71 | 0.7105 | 1280.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 2.53 | 240.56 | 44.11 | 278.95 | 0.7062 | 370.0 | 335.0 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 6.98 | 240.89 | 44.44 | 284.97 | 0.7217 | 608.0 | 532.8 | |
| 0.00 | 1.51 | 0.00 | 1.07 | 6.55 | 240.80 | 44.34 | 284.41 | 0.7193 | 697.0 | 569.2 | |
| 0.00 | 1.42 | 0.00 | 0.98 | 4.46 | 239.80 | 43.34 | 281.86 | 0.7015 | 626.0 | 522.4 | |
| 0.00 | 2.22 | 0.00 | 1.52 | 2.87 | 239.70 | 43.24 | 279.65 | 0.6964 | 682.0 | 631.2 | |
| 0.00 | 1.86 | 0.00 | 1.28 | 3.21 | 239.72 | 43.26 | 280.12 | 0.6974 | 715.0 | 588.4 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 4.00 | 239.77 | 43.31 | 281.23 | 0.6999 | 601.0 | 611.8 | |
| 0.00 | 1.86 | 0.00 | 1.30 | 5.48 | 239.89 | 43.43 | 283.25 | 0.7053 | 595.0 | 473.7 | |
| 0.00 | 1.59 | 0.00 | 1.09 | 5.54 | 238.90 | 42.44 | 283.66 | 0.6935 | 632.0 | 507.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
