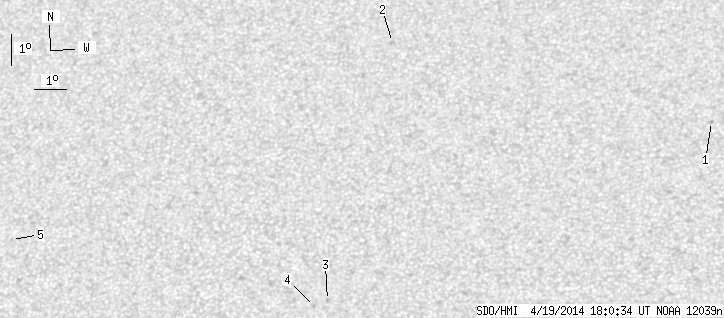

SDO HMI 2014-04-19 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.47 | 0.00 | 3.51 | 16.38 | 189.20 | -7.26 | 337.34 | 0.4030 | 361.8 | 197.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.77 | 18.03 | 199.24 | 2.78 | 353.34 | 0.3994 | 807.0 | 617.9 | |
| 0.00 | 1.95 | 0.00 | 1.08 | 20.70 | 189.00 | -7.46 | 15.53 | 0.4552 | -573.0 | -483.1 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 12.35 | 187.29 | -9.17 | 27.34 | 0.3405 | 159.0 | 190.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 12.17 | 186.89 | -9.57 | 28.60 | 0.3409 | 738.0 | 662.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 14.54 | 177.04 | -19.41 | 43.97 | 0.4653 | 678.0 | 545.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
