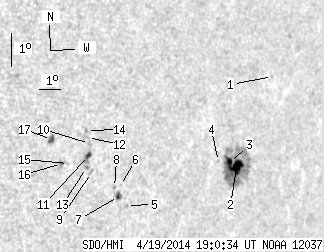

SDO HMI 2014-04-19 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.62 | 112.20 | 17.27 | 89.93 | -8.91 | 247.90 | 51.99 | 262.76 | 0.7860 | 416.8 | 188.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.76 | -6.01 | 250.89 | 54.98 | 266.34 | 0.8183 | 406.0 | 273.7 | |
| 12.14 | 82.67 | 10.06 | 68.52 | -8.87 | 249.52 | 53.61 | 262.84 | 0.8039 | 784.0 | 222.5 | |
| 3.99 | -2.00 | 3.27 | -2.00 | -8.74 | 249.13 | 53.23 | 262.99 | 0.7999 | 881.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -8.75 | 248.57 | 52.67 | 262.98 | 0.7941 | 609.0 | 556.8 | |
| 0.00 | 1.42 | 0.00 | 1.06 | -10.38 | 244.45 | 48.55 | 260.77 | 0.7493 | -630.0 | -553.9 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -9.79 | 244.06 | 48.16 | 261.53 | 0.7445 | -211.0 | -201.1 | |
| 1.68 | 3.99 | 1.24 | 2.95 | -10.13 | 244.03 | 48.13 | 261.08 | 0.7443 | -670.1 | -496.6 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -9.87 | 243.80 | 47.90 | 261.41 | 0.7415 | -525.0 | -438.8 | |
| 0.00 | 2.22 | 0.00 | 1.60 | -9.49 | 242.69 | 46.78 | 261.89 | 0.7284 | 591.0 | 516.3 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -8.62 | 242.45 | 46.55 | 263.07 | 0.7254 | 782.0 | 625.2 | |
| 1.95 | 5.85 | 1.40 | 4.19 | -8.99 | 242.47 | 46.56 | 262.57 | 0.7256 | 823.7 | 625.5 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -8.45 | 242.34 | 46.43 | 263.31 | 0.7239 | 684.0 | 590.3 | |
| 0.00 | 1.33 | 0.00 | 0.95 | -9.35 | 242.44 | 46.54 | 262.07 | 0.7254 | 841.0 | 787.2 | |
| 0.00 | 1.51 | 0.00 | 1.08 | -8.24 | 242.26 | 46.36 | 263.60 | 0.7230 | 736.0 | 556.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -9.28 | 241.63 | 45.73 | 262.13 | 0.7157 | -484.0 | -465.3 | |
| 0.00 | 3.19 | 0.00 | 2.24 | -9.30 | 241.33 | 45.43 | 262.09 | 0.7121 | -723.0 | -522.7 | |
| 1.86 | 3.99 | 1.30 | 2.78 | -8.61 | 240.79 | 44.88 | 263.05 | 0.7052 | -745.6 | -566.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
