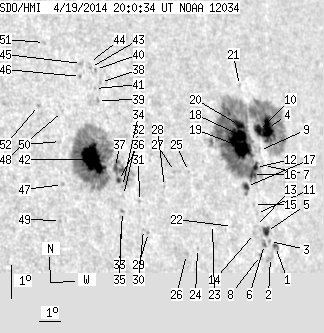

SDO HMI 2014-04-19 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.11 | 657.07 | 95.70 | 525.31 | 4.58 | 246.02 | 50.67 | 280.12 | 0.7840 | -129.5 | -99.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.51 | 3.63 | 1.29 | 3.12 | 1.96 | 249.64 | 54.29 | 276.14 | 0.8184 | -474.2 | -376.6 | |
| 0.00 | 4.96 | 0.00 | 4.22 | 1.61 | 249.37 | 54.02 | 275.76 | 0.8152 | -660.0 | -526.1 | |
| 0.00 | 1.06 | 0.00 | 0.91 | 2.09 | 249.34 | 53.99 | 276.35 | 0.8155 | -541.0 | -495.2 | |
| 13.12 | 365.10 | 11.38 | 308.81 | 5.55 | 249.56 | 54.21 | 280.49 | 0.8233 | -614.4 | -333.1 | |
| 4.16 | 6.82 | 3.54 | 5.79 | 2.38 | 249.20 | 53.85 | 276.73 | 0.8146 | -625.6 | -445.8 | |
| 0.80 | 3.46 | 0.67 | 2.92 | 1.98 | 249.07 | 53.72 | 276.26 | 0.8127 | -757.6 | -715.0 | |
| 0.00 | 0.97 | 0.00 | 0.83 | 4.39 | 249.21 | 53.86 | 279.17 | 0.8179 | -93.0 | -50.4 | |
| 0.00 | 1.24 | 0.00 | 1.04 | 1.63 | 248.85 | 53.50 | 275.87 | 0.8100 | -630.0 | -581.4 | |
| 0.00 | 1.77 | 0.00 | 1.51 | 4.84 | 249.06 | 53.71 | 279.74 | 0.8171 | -287.0 | -228.1 | |
| 6.11 | -4.00 | 5.24 | -4.00 | 5.45 | 249.08 | 53.74 | 280.48 | 0.8184 | -727.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.04 | 2.90 | 248.72 | 53.37 | 277.45 | 0.8105 | -506.0 | -439.1 | |
| 2.30 | -4.00 | 1.95 | -4.00 | 4.30 | 248.79 | 53.44 | 279.14 | 0.8135 | -519.9 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.19 | 2.49 | 248.64 | 53.29 | 276.97 | 0.8091 | -378.0 | -344.1 | |
| 0.00 | 1.33 | 0.00 | 1.11 | 2.28 | 248.58 | 53.23 | 276.71 | 0.8082 | -217.0 | -206.5 | |
| 0.00 | 0.97 | 0.00 | 0.82 | 3.16 | 248.59 | 53.24 | 277.79 | 0.8096 | -440.0 | -400.2 | |
| 3.28 | -4.00 | 2.76 | -4.00 | 4.07 | 248.62 | 53.27 | 278.91 | 0.8114 | -560.9 | 999999 | |
| 2.57 | 6.56 | 2.15 | 5.47 | 3.68 | 248.28 | 52.93 | 278.50 | 0.8073 | -709.1 | -525.0 | |
| 11.79 | -4.00 | 9.87 | -4.00 | 5.23 | 248.14 | 52.79 | 280.42 | 0.8086 | -825.4 | 999999 | |
| 27.56 | -4.00 | 23.02 | -4.00 | 4.89 | 248.05 | 52.70 | 280.02 | 0.8071 | -908.6 | 999999 | |
| 5.49 | -4.00 | 4.61 | -4.00 | 5.53 | 248.13 | 52.78 | 280.79 | 0.8091 | -736.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.90 | 6.77 | 248.31 | 52.96 | 282.25 | 0.8133 | -364.0 | -256.5 | |
| 0.00 | 1.15 | 0.00 | 0.94 | 2.41 | 247.49 | 52.14 | 277.08 | 0.7971 | -206.0 | -196.2 | |
| 0.00 | 1.24 | 0.00 | 0.99 | 2.40 | 246.51 | 51.16 | 277.25 | 0.7867 | -160.0 | -175.4 | |
| 0.00 | 0.80 | 0.00 | 0.63 | 1.62 | 245.76 | 50.41 | 276.40 | 0.7774 | 212.0 | 168.0 | |
| 0.00 | 0.80 | 0.00 | 0.63 | 3.94 | 245.47 | 50.12 | 279.41 | 0.7783 | -476.0 | -431.8 | |
| 0.00 | 2.57 | 0.00 | 1.99 | 1.40 | 245.23 | 49.88 | 276.21 | 0.7713 | -216.0 | -287.0 | |
| 0.00 | 1.42 | 0.00 | 1.10 | 3.89 | 244.81 | 49.46 | 279.50 | 0.7710 | -172.0 | -143.9 | |
| 0.00 | 0.97 | 0.00 | 0.75 | 3.40 | 244.31 | 48.96 | 278.98 | 0.7645 | 337.0 | 259.9 | |
| 0.00 | 0.62 | 0.00 | 0.47 | 1.95 | 243.49 | 48.15 | 277.26 | 0.7527 | 389.0 | 307.3 | |
| 0.00 | 0.44 | 0.00 | 0.33 | 2.02 | 243.27 | 47.92 | 277.40 | 0.7503 | 596.0 | 543.0 | |
| 0.00 | 1.15 | 0.00 | 0.86 | 2.87 | 243.13 | 47.78 | 278.54 | 0.7503 | 441.0 | 352.4 | |
| 0.00 | 0.97 | 0.00 | 0.72 | 3.00 | 242.42 | 47.07 | 278.88 | 0.7424 | 460.0 | 365.3 | |
| 0.00 | 1.33 | 0.00 | 0.98 | 2.51 | 242.35 | 47.00 | 278.24 | 0.7406 | 579.0 | 531.4 | |
| 0.00 | 0.89 | 0.00 | 0.65 | 3.27 | 242.40 | 47.05 | 279.25 | 0.7427 | 297.0 | 274.3 | |
| 0.00 | 1.51 | 0.00 | 1.10 | 2.32 | 242.30 | 46.95 | 278.00 | 0.7397 | 586.0 | 511.2 | |
| 1.51 | 223.31 | 1.11 | 161.74 | 3.44 | 242.23 | 46.88 | 279.52 | 0.7411 | 611.5 | 333.4 | |
| 2.13 | -36.00 | 1.56 | -36.00 | 3.83 | 242.12 | 46.78 | 280.06 | 0.7407 | 679.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.85 | 6.40 | 241.71 | 46.36 | 283.58 | 0.7422 | 545.0 | 420.7 | |
| 0.00 | 1.60 | 0.00 | 1.17 | 5.84 | 241.52 | 46.17 | 282.89 | 0.7385 | 290.0 | 374.7 | |
| 0.00 | 1.15 | 0.00 | 0.85 | 6.79 | 241.54 | 46.19 | 284.14 | 0.7413 | 438.0 | 407.9 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 6.20 | 241.42 | 46.08 | 283.40 | 0.7384 | 519.0 | 486.9 | |
| 36.78 | -36.00 | 26.55 | -36.00 | 4.01 | 241.13 | 45.78 | 280.55 | 0.7295 | 958.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 6.84 | 241.33 | 45.98 | 284.27 | 0.7390 | 565.0 | 518.5 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 6.99 | 241.30 | 45.95 | 284.48 | 0.7391 | 321.0 | 316.5 | |
| 0.00 | 2.22 | 0.00 | 1.61 | 6.94 | 240.95 | 45.60 | 284.52 | 0.7349 | 527.0 | 485.0 | |
| 0.00 | 1.15 | 0.00 | 0.84 | 6.53 | 240.85 | 45.50 | 284.01 | 0.7327 | 695.0 | 545.6 | |
| 0.00 | 1.51 | 0.00 | 1.06 | 3.16 | 239.79 | 44.44 | 279.75 | 0.7116 | 634.0 | 548.2 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 5.40 | 239.96 | 44.61 | 282.77 | 0.7192 | 601.0 | 506.2 | |
| 0.00 | 1.24 | 0.00 | 0.87 | 2.06 | 239.65 | 44.30 | 278.24 | 0.7076 | 616.0 | 487.5 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 4.47 | 239.79 | 44.44 | 281.55 | 0.7148 | 677.0 | 557.1 | |
| 0.00 | 1.42 | 0.00 | 1.01 | 7.48 | 239.43 | 44.08 | 285.77 | 0.7190 | 608.0 | 474.1 | |
| 0.00 | 1.15 | 0.00 | 0.81 | 5.52 | 238.95 | 43.60 | 283.25 | 0.7076 | 593.0 | 444.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
