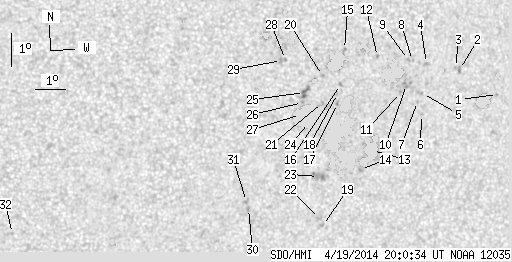

SDO HMI 2014-04-19 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.75 | 259.54 | 20.71 | 142.98 | -16.07 | 218.70 | 23.35 | 242.82 | 0.4300 | -256.6 | 28.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.41 | -14.97 | 224.72 | 29.37 | 249.16 | 0.5090 | 614.0 | 492.0 | |
| 0.00 | 1.86 | 0.00 | 1.05 | -14.27 | 223.27 | 27.92 | 249.78 | 0.4856 | 832.0 | 702.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -14.21 | 223.12 | 27.77 | 249.81 | 0.4832 | 675.0 | 494.4 | |
| 0.00 | 2.39 | 0.00 | 1.34 | -14.13 | 222.10 | 26.75 | 249.41 | 0.4682 | 776.0 | 607.1 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -15.05 | 222.08 | 26.73 | 247.52 | 0.4720 | 675.0 | 565.8 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -15.69 | 222.13 | 26.78 | 246.26 | 0.4758 | 696.0 | 554.0 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -15.30 | 221.94 | 26.59 | 246.92 | 0.4712 | 610.0 | 521.6 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.06 | 221.60 | 26.25 | 249.27 | 0.4607 | 621.0 | 578.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -14.03 | 221.46 | 26.11 | 249.24 | 0.4585 | 916.0 | 728.9 | |
| 0.00 | 5.23 | 0.00 | 2.92 | -14.80 | 221.49 | 26.14 | 247.66 | 0.4624 | 751.0 | 628.1 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -15.05 | 221.31 | 25.96 | 247.03 | 0.4611 | 727.0 | 589.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -13.98 | 220.39 | 25.04 | 248.68 | 0.4427 | 769.0 | 660.1 | |
| 8.68 | 27.21 | 4.84 | 15.16 | -16.86 | 220.58 | 25.23 | 242.80 | 0.4606 | 1035.5 | 798.3 | |
| 0.00 | 2.48 | 0.00 | 1.38 | -17.46 | 220.25 | 24.90 | 241.33 | 0.4597 | 808.0 | 624.2 | |
| 0.00 | 2.04 | 0.00 | 1.11 | -13.81 | 219.24 | 23.89 | 248.29 | 0.4251 | -534.0 | -493.5 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -14.88 | 219.23 | 23.88 | 245.90 | 0.4303 | -792.0 | -573.0 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -15.46 | 219.19 | 23.84 | 244.61 | 0.4331 | -791.0 | -554.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -15.16 | 219.16 | 23.81 | 245.24 | 0.4309 | -620.0 | -518.4 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -19.23 | 219.19 | 23.84 | 236.87 | 0.4576 | -617.0 | -574.4 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -14.63 | 218.59 | 23.24 | 245.97 | 0.4197 | -483.0 | -430.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -15.45 | 218.68 | 23.33 | 244.22 | 0.4257 | -621.0 | -419.2 | |
| 0.00 | 1.95 | 0.00 | 1.08 | -19.02 | 219.06 | 23.71 | 237.16 | 0.4543 | -639.0 | -546.5 | |
| 0.00 | 8.95 | 0.00 | 4.94 | -17.72 | 218.83 | 23.48 | 239.53 | 0.4422 | -29.0 | -34.2 | |
| 17.46 | 173.86 | 9.54 | 95.56 | -16.08 | 218.28 | 22.93 | 242.50 | 0.4238 | -948.2 | -21.5 | |
| 0.00 | 7.00 | 0.00 | 3.81 | -15.16 | 218.04 | 22.69 | 244.30 | 0.4149 | -1196.0 | -862.4 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -15.47 | 218.00 | 22.65 | 243.59 | 0.4162 | -747.0 | -685.0 | |
| 11.61 | -24.00 | 6.33 | -24.00 | -15.84 | 217.98 | 22.63 | 242.74 | 0.4181 | -1106.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -14.18 | 217.29 | 21.94 | 245.94 | 0.3985 | -824.0 | -647.6 | |
| 0.00 | 1.95 | 0.00 | 1.05 | -14.21 | 217.16 | 21.81 | 245.74 | 0.3968 | -896.0 | -643.7 | |
| 0.00 | 1.95 | 0.00 | 1.06 | -18.79 | 216.58 | 21.23 | 235.00 | 0.4202 | -785.0 | -640.5 | |
| 0.00 | 2.75 | 0.00 | 1.50 | -18.57 | 216.48 | 21.13 | 235.33 | 0.4173 | -798.0 | -648.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -19.76 | 208.79 | 13.44 | 220.85 | 0.3359 | -812.0 | -608.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
