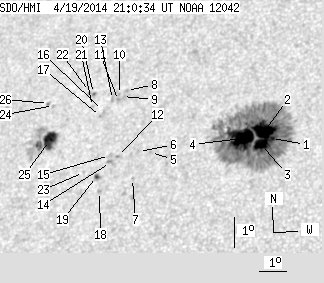

SDO HMI 2014-04-19 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.95 | 448.78 | 59.71 | 276.11 | 18.17 | 166.72 | -28.07 | 48.98 | 0.5937 | -414.9 | -235.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-19 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.66 | 374.70 | 1.60 | 227.56 | 18.04 | 168.57 | -26.22 | 47.40 | 0.5729 | -1369.9 | -369.7 | |
| 26.68 | -1.00 | 16.17 | -1.00 | 18.32 | 168.28 | -26.51 | 47.34 | 0.5785 | -1180.9 | 999999 | |
| 13.91 | -1.00 | 8.41 | -1.00 | 17.86 | 168.25 | -26.55 | 47.99 | 0.5747 | -1361.2 | 999999 | |
| 37.31 | -1.00 | 22.74 | -1.00 | 18.09 | 167.50 | -27.30 | 48.45 | 0.5847 | -1012.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.72 | 17.79 | 164.26 | -30.54 | 51.92 | 0.6169 | 622.0 | 535.6 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 17.84 | 163.81 | -30.99 | 52.24 | 0.6222 | 290.0 | 366.5 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 16.97 | 163.75 | -31.05 | 53.47 | 0.6161 | 640.0 | 467.2 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 19.89 | 162.93 | -31.87 | 50.33 | 0.6473 | 732.0 | 557.6 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 19.70 | 162.82 | -31.97 | 50.66 | 0.6469 | 745.0 | 637.8 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 19.77 | 162.69 | -32.10 | 50.68 | 0.6488 | 635.0 | 586.5 | |
| 0.00 | 1.60 | 0.00 | 1.03 | 19.57 | 162.70 | -32.10 | 50.93 | 0.6472 | 836.0 | 752.2 | |
| 0.00 | 1.24 | 0.00 | 0.79 | 17.72 | 163.05 | -31.74 | 53.05 | 0.6294 | 815.0 | 720.1 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 19.62 | 162.46 | -32.33 | 51.07 | 0.6500 | 748.0 | 583.9 | |
| 0.00 | 3.10 | 0.00 | 1.97 | 17.53 | 162.83 | -31.97 | 53.48 | 0.6305 | 693.0 | 671.2 | |
| 0.00 | 3.10 | 0.00 | 1.98 | 17.76 | 162.74 | -32.05 | 53.24 | 0.6331 | 617.0 | 489.5 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 19.27 | 162.16 | -32.64 | 51.76 | 0.6505 | 616.0 | 651.2 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 19.07 | 162.13 | -32.67 | 52.03 | 0.6494 | 710.0 | 629.7 | |
| 0.00 | 1.60 | 0.00 | 1.01 | 16.60 | 162.60 | -32.20 | 54.92 | 0.6263 | 779.0 | 594.7 | |
| 1.15 | 2.13 | 0.73 | 1.36 | 17.10 | 162.39 | -32.41 | 54.42 | 0.6321 | 781.5 | 639.8 | |
| 0.35 | 1.33 | 0.23 | 0.87 | 19.86 | 161.68 | -33.11 | 51.40 | 0.6598 | 642.8 | 494.8 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 19.42 | 161.74 | -33.05 | 51.90 | 0.6559 | 590.0 | 503.9 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 19.93 | 161.51 | -33.28 | 51.44 | 0.6621 | 421.0 | 410.8 | |
| 0.00 | 1.24 | 0.00 | 0.80 | 17.26 | 161.87 | -32.93 | 54.62 | 0.6390 | 695.0 | 458.9 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 19.54 | 160.21 | -34.58 | 52.94 | 0.6726 | 649.0 | 514.3 | |
| 14.89 | 46.35 | 9.83 | 30.69 | 18.38 | 160.33 | -34.46 | 54.32 | 0.6634 | 914.1 | 266.2 | |
| 0.00 | 1.42 | 0.00 | 0.95 | 19.62 | 160.00 | -34.80 | 53.00 | 0.6753 | 495.0 | 392.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
