SDO HMI 2014-04-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.17 | 100.52 | 14.77 | 83.08 | -8.86 | 247.58 | 53.33 | 262.82 | 0.7998 | 334.4 | 209.3 | |
|
previous
or next observation for the same group /

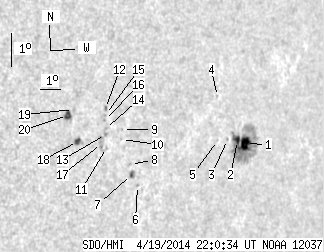

back to the solar disc SDO HMI 2014-04-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.15 | 70.11 | 7.03 | 60.47 | -8.80 | 249.54 | 55.30 | 262.91 | 0.8208 | 634.8 | 241.0 | |
| 3.63 | -1.00 | 3.10 | -1.00 | -8.74 | 249.10 | 54.85 | 262.98 | 0.8165 | 805.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.75 | -8.75 | 248.57 | 54.33 | 262.98 | 0.8112 | 506.0 | 485.0 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -7.50 | 247.80 | 53.56 | 264.54 | 0.8035 | 407.0 | 366.7 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -8.82 | 248.06 | 53.82 | 262.89 | 0.8060 | 277.0 | 203.3 | |
| 0.00 | 0.97 | 0.00 | 0.75 | -10.44 | 244.42 | 50.18 | 260.75 | 0.7675 | -653.0 | -597.4 | |
| 0.89 | 3.46 | 0.68 | 2.64 | -10.13 | 244.07 | 49.82 | 261.14 | 0.7635 | -601.2 | -521.3 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -9.84 | 243.96 | 49.71 | 261.53 | 0.7622 | -470.0 | -374.2 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -8.81 | 243.38 | 49.14 | 262.86 | 0.7555 | 462.0 | 376.3 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -9.12 | 243.39 | 49.15 | 262.46 | 0.7557 | 549.0 | 459.1 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -9.40 | 242.75 | 48.50 | 262.06 | 0.7484 | 493.0 | 455.6 | |
| 0.00 | 1.86 | 0.00 | 1.38 | -8.24 | 242.50 | 48.26 | 263.63 | 0.7453 | 654.0 | 509.4 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -9.02 | 242.63 | 48.39 | 262.58 | 0.7470 | 670.0 | 617.7 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -8.84 | 242.60 | 48.36 | 262.82 | 0.7466 | 658.0 | 736.3 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -8.42 | 242.53 | 48.28 | 263.38 | 0.7457 | 756.0 | 590.7 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -8.60 | 242.51 | 48.27 | 263.14 | 0.7455 | 709.0 | 617.4 | |
| 0.00 | 4.08 | 0.00 | 3.02 | -9.30 | 242.50 | 48.25 | 262.20 | 0.7455 | 661.0 | 672.8 | |
| 2.13 | 4.79 | 1.54 | 3.47 | -9.31 | 241.41 | 47.16 | 262.14 | 0.7328 | -603.4 | -414.6 | |
| 0.00 | 1.42 | 0.00 | 1.02 | -8.36 | 241.07 | 46.83 | 263.44 | 0.7286 | 210.0 | 161.6 | |
| 3.37 | 5.94 | 2.42 | 4.27 | -8.56 | 240.83 | 46.59 | 263.16 | 0.7258 | -643.1 | -430.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
